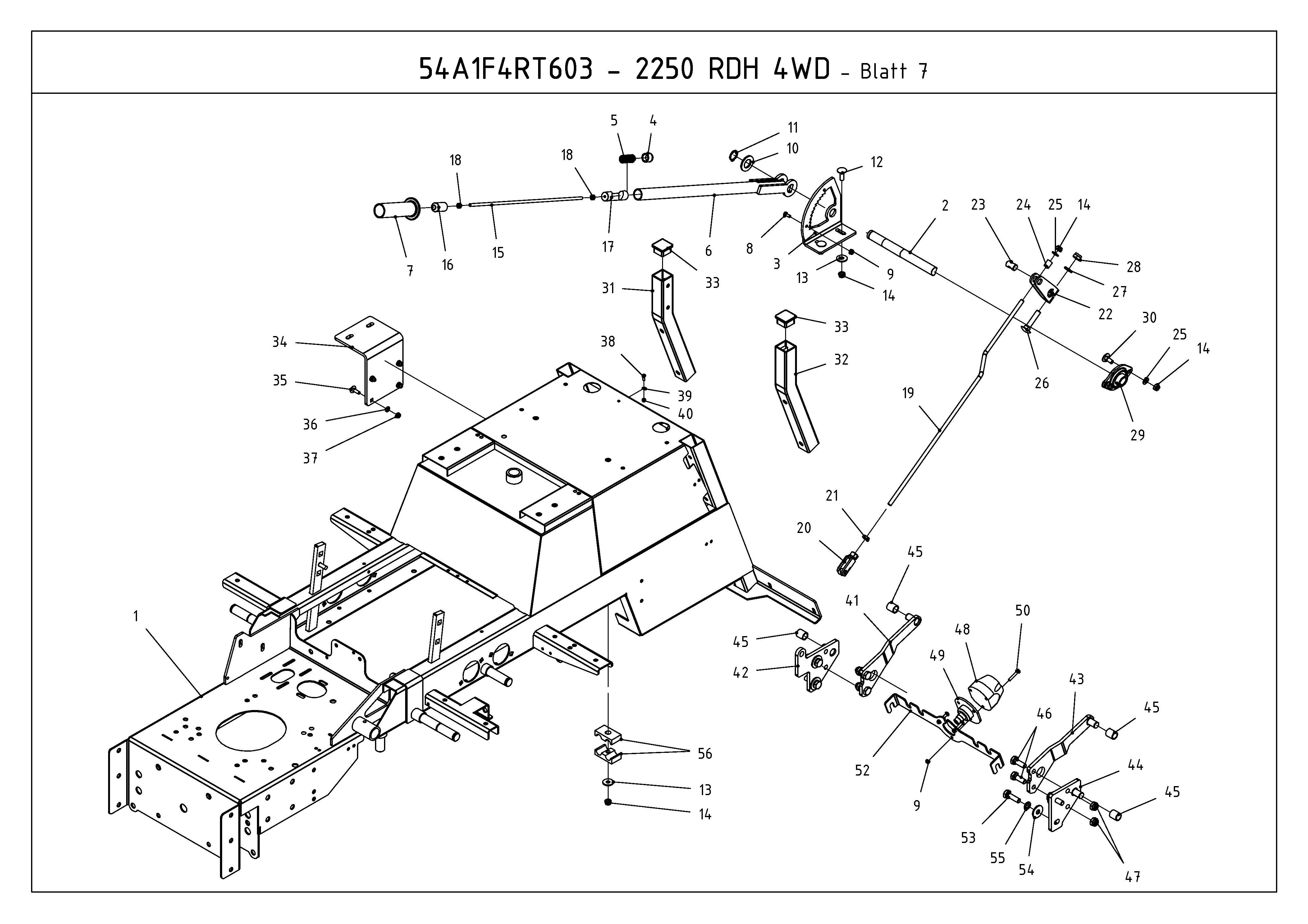

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
001
|
FG10563
|
RAHMEN GENIETET
|
N/A
|
POA
|
|
002
|
FG105756
|
EXCAVATION SHAFT, MOW. MACH
|
£46.73
|
Add
|
|
003
|
FG100194
|
EXCAVATION SEGMENT MOW. MACH.
|
£44.10
|
Add
|
|
004
|
FG100379
|
SPRING GUIDE EXC. MOW. MACH.
|
£14.96
|
Add
|
|
005
|
FG100223
|
PRESSURE SPRING
|
£6.86
|
Add
|
|
006
|
FG100366
|
EXCAVATION LEVER
|
£229.75
|
Add
|
|
007
|
FG100008
|
HANDLE BAR
|
£13.39
|
Add
|
|
008
|
710-1707
|
HEX. SCREW M5x12 DIN 933-8.8
|
£3.85
|
Add
|
|
009
|
712-0675
|
NUT:HEX:M5 x.80:DIN 985
|
£4.25
|
Add
|
|
010
|
FG100056
|
WASHER
|
£2.93
|
Add
|
|
011
|
716-04132
|
RING
|
£3.69
|
Add
|
|
012
|
710-04451
|
BOLT:M8x1.25x25 DIN 603
|
£3.42
|
Add
|
|
013
|
736-0701
|
WASH:FLAT:8.4x24x2.00 DIN 9021
|
£3.80
|
Add
|
|
014
|
712-0692
|
HEX NUT
|
£3.10
|
Add
|
|
015
|
FG100380
|
THREAD ROD, EXCAV. MOW. MACH.
|
N/A
|
POA
|
|
016
|
FG100377
|
PUSHER, EXCAV. MOW. MACH.
|
£17.71
|
Add
|
|
017
|
FG100391
|
RASTER BOLT, EXCAV. MOW. MACH.
|
£23.84
|
Add
|
|
018
|
712-0689
|
NUT:HEX:M6-1:DIN 934
|
£2.33
|
Add
|
|
019
|
FG12755
|
AUSHEBEGEST?NGE
|
£42.63
|
Add
|
|
020
|
FG100176
|
CLEVIS RIGHT-HAND THREAD
|
£22.29
|
Add
|
|
021
|
712-0690
|
NUT:HEX:M8-1.25 DIN 934
|
£2.72
|
Add
|
|
022
|
FG105757
|
CLAMP LEVER, EXCAVATION ROD
|
N/A
|
POA
|
|
023
|
FG100365
|
RECEIVER, BRAKE LEVERAGE
|
N/A
|
POA
|
|
024
|
FG100383
|
SPACER
|
£9.08
|
Add
|
|
025
|
736-0700
|
FLAT WASHER
|
£2.63
|
Add
|
|
026
|
FG105865
|
ROUND-HEAD-SCREW
|
N/A
|
POA
|
|
027
|
736-0734
|
WASH:FLAT:10,5 IDx20 OD DIN125
|
£3.20
|
Add
|
|
028
|
712-0637
|
NUT:M10x1.5 DIN 985 NYLOCK
|
£5.66
|
Add
|
|
029
|
FG105199
|
FLANGE BEARING
|
£26.57
|
Add
|
|
030
|
FG100079
|
ROUND-HEAD SCREW
|
£3.34
|
Add
|
|
031
|
FG12604
|
HALTERUNG RECHTS KPL.
|
£123.09
|
Add
|
|
032
|
FG12605
|
HALTERUNG LINKS KPL.
|
£123.09
|
Add
|
|
033
|
FG100342
|
PLUG PLASTICS: TUBE 35x35x1-3
|
£8.67
|
Add
|
|
034
|
FG105755
|
BRKT, ANGLE
|
N/A
|
POA
|
|
035
|
710-1687
|
BOLT
|
£3.26
|
Add
|
|
036
|
736-0668
|
WASHER
|
£2.23
|
Add
|
|
037
|
712-0691
|
HEX NUT M6 DIN 985
|
£2.66
|
Add
|
|
038
|
FG106136
|
FILLISTER FLANGE HEAD SCREW
|
N/A
|
POA
|
|
039
|
FG106134
|
LOCK WASHER A 4,3 DIN 6797
|
N/A
|
POA
|
|
040
|
712-0636
|
NUT: HEX: M4: DIN 985
|
£4.25
|
Add
|
|
041
|
FG106141
|
HANGER ASS'Y TO FIX, RH
|
£87.47
|
Add
|
|
042
|
FG106142
|
HANGER ASSEMBLY RH
|
£80.94
|
Add
|
|
043
|
FG106143
|
HANGER ASS'Y TO FIX, LH
|
£87.47
|
Add
|
|
044
|
FG106144
|
SUSPENSION LEFT
|
£69.04
|
Add
|
|
045
|
FG105423
|
FLOATING BEARING, NO COLLAR
|
£6.05
|
Add
|
|
046
|
FG105052
|
HEXAGONAL SCREW
|
£2.54
|
Add
|
|
047
|
712-0637
|
NUT:M10x1.5 DIN 985 NYLOCK
|
£5.66
|
Add
|
|
048
|
FG105072
|
POWER-SOCKET
|
£13.39
|
Add
|
|
049
|
FG106125
|
Gasket
|
N/A
|
POA
|
|
050
|
FG106138
|
LENS HEAD SCREW W. CROSS SLOT
|
N/A
|
POA
|
|
052
|
FG106140
|
SUPPORT REAR CIRCUIT POINTS
|
£54.31
|
Add
|
|
053
|
FG100115
|
HEXAGONAL SCREW
|
£3.45
|
Add
|
|
054
|
736-0702
|
WASHER
|
£2.40
|
Add
|
|
055
|
736-0686
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
056
|
FG106208
|
SCHELLENHÄLFTE D=16mm FÜR
|
N/A
|
POA
|
