MTD012103

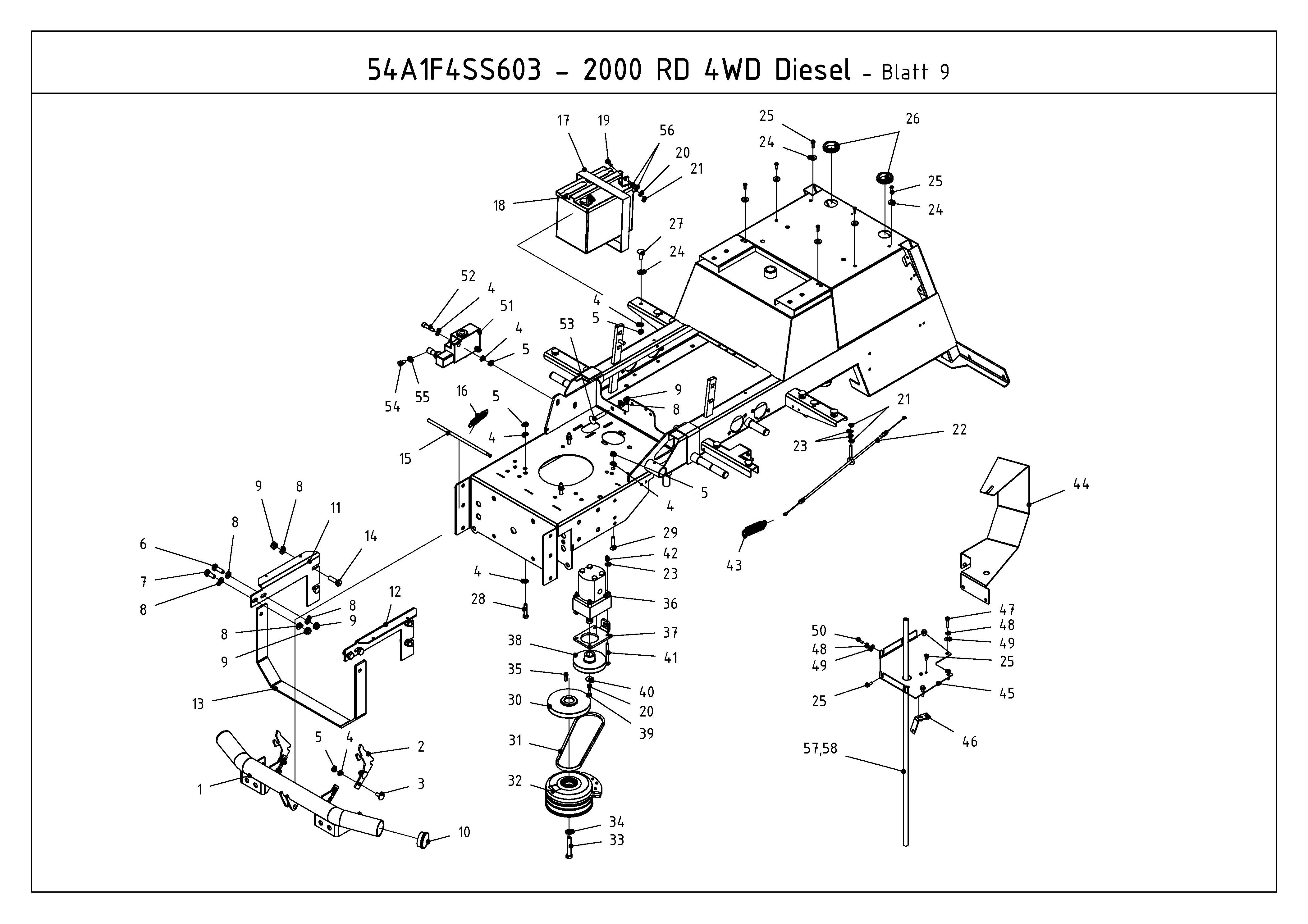

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	FG106634	FG106634	N/A	POA
002	FG106635	MOTORHAUBENDREHPUNKT OBERTEIL	£22.65	Add
003	FG100079	ROUND-HEAD SCREW	£3.34	Add
004	736-0700	FLAT WASHER	£2.63	Add
005	712-0692	HEX NUT	£3.10	Add
006	FG100114	HEX BOLT	£5.40	Add
007	FG105052	HEXAGONAL SCREW	£2.54	Add
008	736-0734	WASH:FLAT:10,5 IDx20 OD DIN125	£3.20	Add
009	712-0637	NUT:M10x1.5 DIN 985 NYLOCK	£5.66	Add
010	FG106012	LAMELLA PLUG ROUND	£9.33	Add
011	FG106637	RH RADIATOR SUPPORT BRACKET	N/A	POA
012	FG106638	LH RADIATOR SUPPORT BRACKET	N/A	POA
013	FG106636	AUSPUFFSCHUTZ UNIVERSALSTOSS-	N/A	POA
014	FG100115	HEXAGONAL SCREW	£3.45	Add
015	FG100368	FIXING, HOOD	£13.50	Add
016	FG100166	EXTENSION SPRING	£6.86	Add
017	FG105142	LASHING STRAP	N/A	POA
018	5032-u3-0002	BATTERY MF896 (No Returns on this item)	£93.24	Add
019	710-1753	HEX. SCREW:DIN 933-8.8 M6x20mm	£2.70	Add
020	736-0648	WASHER:LOCK:B6:DIN 127	£2.44	Add
021	712-0689	NUT:HEX:M6-1:DIN 934	£2.33	Add
022	FG105924	THROTTLE CABLE DIFFERENTIAL	£72.61	Add
023	736-0668	WASHER	£2.23	Add
024	FG100144	DISTANCE RUBBER 8mm	N/A	POA
025	FG100049	FILLISTER FLANGE HEAD SCREW	£3.05	Add
026	FG105774	CABLE GROMMET	N/A	POA
027	710-04451	BOLT:M8x1.25x25 DIN 603	£3.42	Add
028	710-1733	HEX. SCREW M8x35 DIN 933-8.8	£4.25	Add
029	FG107361	SENKSCHRAUBE M8x35 DIN7991-8.8	N/A	POA
030	FG107357	KIT ENGINE PULLEY	N/A	POA
031	FG107358	KEILRIEMEN 13x700 Li DIN 2215	N/A	POA
032	FG100021	ELECTRIC CLUTCH SMALL	£284.90	Add
033	FG101016	HEXAGONALE SCREW	£3.49	Add
034	FG102001	CIRCLIP ? 7/16"	£3.70	Add
035	FG105870	KEY	£3.70	Add
036	FG100158	TWIN-GEAR PUMP	£851.24	Add
037	FG105744	ADAPTER PLATE, ATTACH. BEARING	£57.02	Add
038	FG105714	PULLEY	£52.69	Add
039	710-1690	HHCS:M6-1:16.00	£3.39	Add
040	FG100072	SCHEIBE 6,6 DIN 440 ST	£3.05	Add
041	710-04634	BOLT:CRG:M6-1x30:DIN 603:GR8.8	N/A	POA
042	712-0691	HEX NUT M6 DIN 985	£2.66	Add
043	FG105734	EXTENSION SPRING	£19.28	Add
044	FG106195	TANK CLAMP	N/A	POA
045	FG106194	RETAINING PLATE	N/A	POA
046	FG106196	BRACKET HANDBRAKE	N/A	POA
047	710-1798	SCREW M5X30mm (RED)	£4.02	Add
048	736-0768	WASHER:LOCK:B5 DIN 127:	£3.05	Add
049	736-0661	WASHER A 5,3 DIN 9021	£3.85	Add
050	710-1705	HEX. SCREW:M5X16:DIN 933 8.8	£4.00	Add
051	FG105381	CONTROL VALVE	£328.52	Add
052	FG107329	ZYLINDERSCHR.M8x35 DIN 912-8.8	N/A	POA
053	FG105865	ROUND-HEAD-SCREW	N/A	POA
056	736-0685	WASHER	£3.26	Add
057	FG106193	FUEL LINE	N/A	POA
058	FG101017	BAND CLAMP FITTING	£5.81	Add
