MTD012390

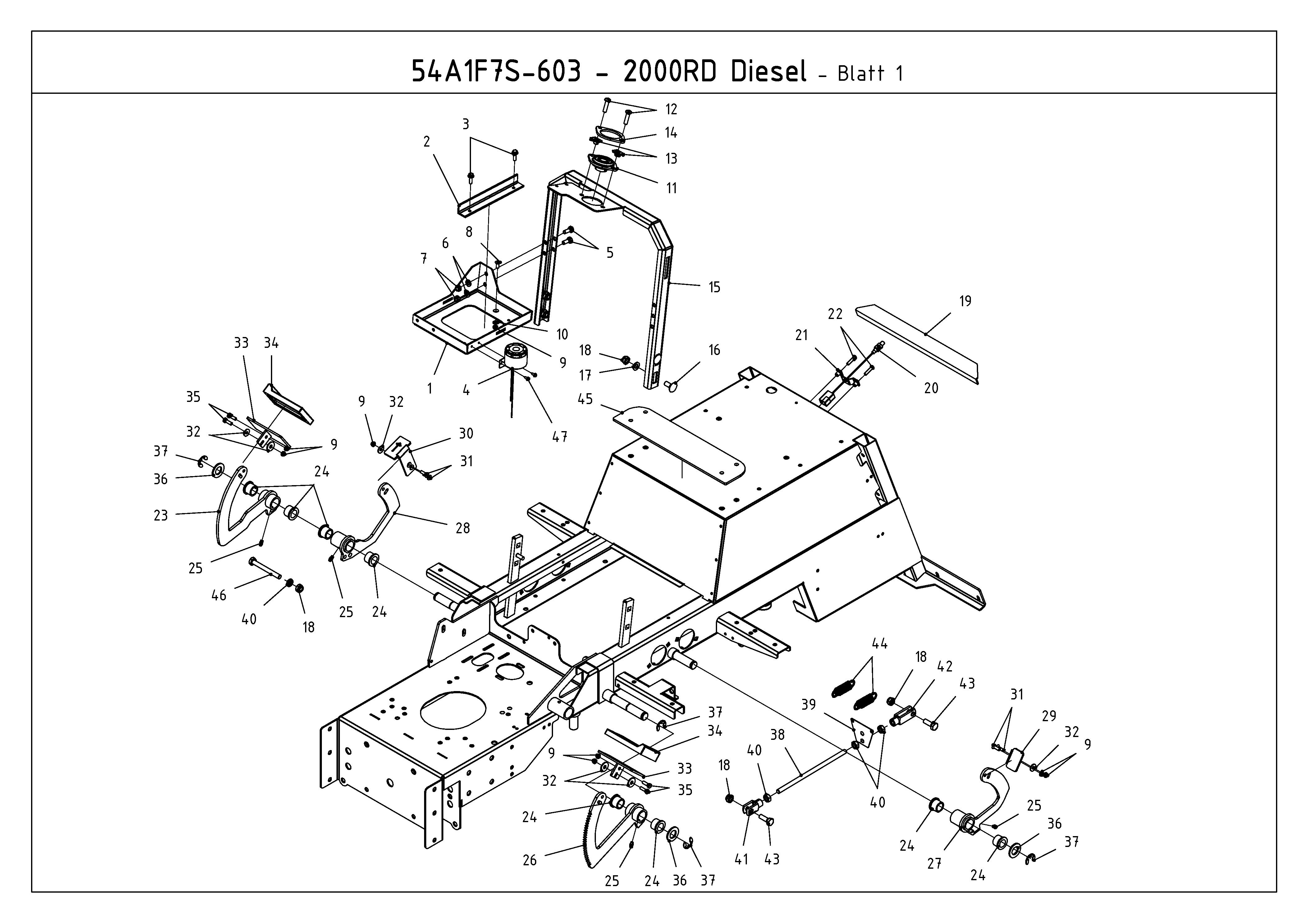

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD012390

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 FG105372 BATTERY HOLDER £97.01 Add
002 FG12603 BATTERIEKLEMMUNG N/A POA
003 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
004 FG12544 SIGNALGEBER KPL. £66.31 Add
005 710-1681 HEX BOLT M8 X 20 DIN 933 (RED) £3.24 Add
006 736-0700 FLAT WASHER £2.63 Add
007 712-0692 HEX NUT £3.10 Add
008 FG100093 COUNTERSUNK SOCKET SCREW £2.30 Add
009 712-0691 HEX NUT M6 DIN 985 £2.66 Add
010 736-0668 WASHER £2.23 Add
011 FG105199 FLANGE BEARING £26.57 Add
012 FG55451 FG55451 N/A POA
013 726-0365 SPEED NUT M8, U-TYPE 000.02.520 £5.21 Add
014 FG105672 INDERMEDIATE PLATE, STEERING N/A POA
015 FG12821 HALTEBÜGEL ARMATURENBRETT N/A POA
016 FG100077 ROUND-HEAD SCREW N/A POA
017 736-0734 WASH:FLAT:10,5 IDx20 OD DIN125 £3.20 Add
018 712-0637 NUT:M10x1.5 DIN 985 NYLOCK £5.66 Add
019 FG105481 SEALING PROFILE £34.56 Add
020 FG106513 POSITION SENSOR £74.70 Add
021 FG107218 HOLDER CONTACT £25.91 Add
022 FG106390 LINSENFLANSCHKOPFSCHR.M6x25 N/A POA
023 FG100355 PEDAL ARM DRIVE AXLE N/A POA
024 FG100295 FLOATING BEARING WITH COLLAR £16.13 Add
025 FG105045 CONE LUBRICATING ELEMENT £4.36 Add
026 FG100389 PEDAL RETAINER, BRAKE N/A POA
027 FG105730 PEDAL RETAINER DIFF. BARRIER N/A POA
028 FG105143 PEDAL RETAINER REVERSE GEAR N/A POA
029 FG105933 DIFFERENTIAL ACTUATION N/A POA
030 FG105667 RETURN PEDAL £27.63 Add
031 FG105059 COUNTER SUNK SOCKET SCREW £2.30 Add
032 736-0685 WASHER £3.26 Add
033 FG100390 PEDAL PLATE FORWARD N/A POA
034 FG100004 pedal rubber N/A POA
035 710-1753 HEX. SCREW:DIN 933-8.8 M6x20mm £2.70 Add
036 FG100056 WASHER £2.93 Add
037 FG100083 RETAINING WASHER £23.81 Add
038 FG100369 OPERATION LEVERAGE, BRAKE £23.21 Add
039 FG100196 FASTENING PLATE, SPRING £28.82 Add
040 712-0635 NUT M10-8 DIN 934 £2.93 Add
041 FG55294 GABELKOPF A 10x20-M10 DIN71752 N/A POA
042 FG55295 GABELKOPF A 10x40-M10 DIN71752 £13.39 Add
043 FG105052 HEXAGONAL SCREW £2.54 Add
044 FG100163 TENSION SPRING £11.93 Add
045 FG12744 VERSTÄRKUNGSPLATTE:SITZAUFLAGE N/A POA
046 FG105049 HEXAGON SCREW £4.36 Add
047 710-0227 SCR:AB:#8-18:0.500:HXINDWH £3.07 Add
