MTD012079

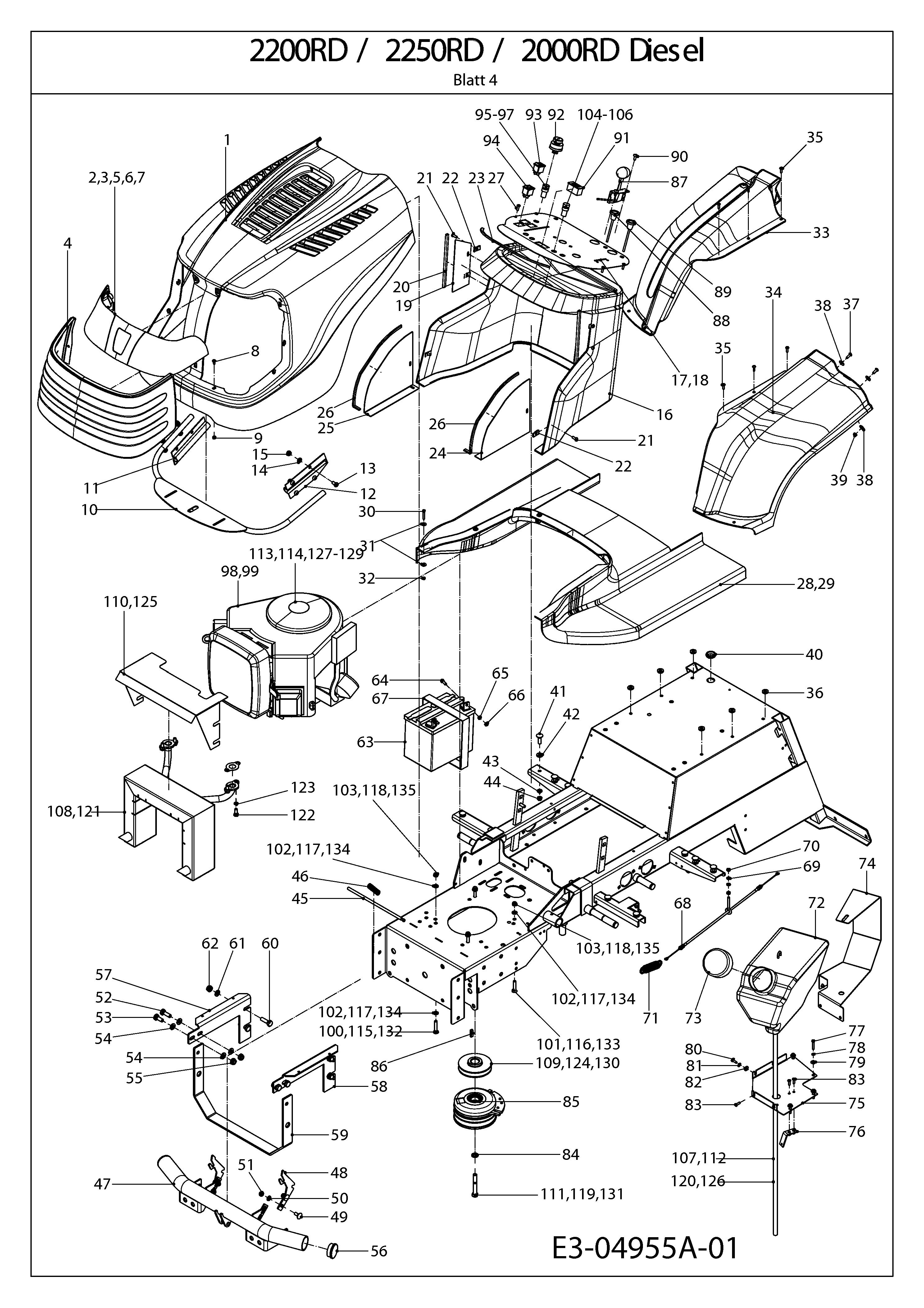

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD012079

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 731-05301A HOOD:CUB 5000/6000 SERIES £322.46 Add
002 731-04211 BEZEL-HEAD LIGHT:5000 £77.68 Add
003 725-04546 LAMP:HEAD:CE £122.55 Add
004 703-3394 SCREEN-INTAKE:6000 £126.49 Add
005 710-0895 SCR:HL:1/4-10:0.750:HXINDWSH £3.51 Add
006 710-0969 SCREW £3.35 Add
007 732-04414 COMP.SPRING:.310 X .710 X .041 £5.55 Add
008 710-0473 SCR:MACH:#10-24:0.500:TRUSPHI £4.62 Add
009 712-0272 NUT SEMS:#10-24 £3.39 Add
010 FG107351 FG107351 N/A POA
011 FG107359 FG107359 N/A POA
012 FG107360 FG107360 N/A POA
013 FG105179 FILLISTER FLANGE HEAD SCREW £4.39 Add
014 736-0700 FLAT WASHER £2.63 Add
015 712-0692 HEX NUT £3.10 Add
016 FG107333 ARMATURENBRETT:MTD VARIANTE N/A POA
017 FG107335 FG107335 N/A POA
018 FG107334 LBLI-AUFKLEBER:ARMATURENBRETT N/A POA
019 FG107336 GUARD-BLOWER N/A POA
020 FG107339 KANTENSCHUTZ:PVC-SCHWARZ N/A POA
021 FG100048 FILLISTER FLANGE HEAD SCREW £3.05 Add
022 712-0292 SPEED NUT (DNR) £4.41 Add
023 FG107341 KANTENSCHUTZ:PVC-SCHWARZ N/A POA
024 FG107337 SCHUTZGITTER MOTORHAUBE LINKS N/A POA
025 FG107338 SCHUTZGITTER MOTORHAUBE RECHTS N/A POA
026 FG107340 KANTENSCHUTZ:PVC-SCHWARZ N/A POA
027 FG100049 FILLISTER FLANGE HEAD SCREW £3.05 Add
028 FG100288 TREAD WITHOUT APERTURE N/A POA
029 FG55447 TREAD WITH APERTURE £282.67 Add
030 710-1798 SCREW M5X30mm (RED) £4.02 Add
031 736-0661 WASHER A 5,3 DIN 9021 £3.85 Add
032 712-0675 NUT:HEX:M5 x.80:DIN 985 £4.25 Add
033 FG107332 KOTFL?GEL RECHTS £148.08 Add
034 FG107331 FENDER LEFT £148.08 Add
035 FG100049 FILLISTER FLANGE HEAD SCREW £3.05 Add
036 FG100144 DISTANCE RUBBER 8mm N/A POA
037 FG100048 FILLISTER FLANGE HEAD SCREW £3.05 Add
038 736-0685 WASHER £3.26 Add
039 712-0691 HEX NUT M6 DIN 985 £2.66 Add
040 FG106362 GROMMET d22 D30 s1,6 B25,5 N/A POA
041 710-04451 BOLT:M8x1.25x25 DIN 603 £3.42 Add
042 FG100144 DISTANCE RUBBER 8mm N/A POA
043 736-0700 FLAT WASHER £2.63 Add
044 712-0692 HEX NUT £3.10 Add
045 FG100368 FIXING, HOOD £13.50 Add
046 FG100166 EXTENSION SPRING £6.86 Add
047 FG106634 FG106634 N/A POA
048 FG106635 MOTORHAUBENDREHPUNKT OBERTEIL £22.65 Add
049 FG100079 ROUND-HEAD SCREW £3.34 Add
050 736-0700 FLAT WASHER £2.63 Add
051 712-0692 HEX NUT £3.10 Add
052 FG100114 HEX BOLT £5.40 Add
053 FG105052 HEXAGONAL SCREW £2.54 Add
054 736-0734 WASH:FLAT:10,5 IDx20 OD DIN125 £3.20 Add
055 712-0637 NUT:M10x1.5 DIN 985 NYLOCK £5.66 Add
056 FG106012 LAMELLA PLUG ROUND £9.33 Add
057 FG106637 RH RADIATOR SUPPORT BRACKET N/A POA
058 FG106638 LH RADIATOR SUPPORT BRACKET N/A POA
059 FG106636 AUSPUFFSCHUTZ UNIVERSALSTOSS- N/A POA
060 FG100115 HEXAGONAL SCREW £3.45 Add
061 736-0734 WASH:FLAT:10,5 IDx20 OD DIN125 £3.20 Add
062 712-0637 NUT:M10x1.5 DIN 985 NYLOCK £5.66 Add
063 5032-u3-0002 BATTERY MF896 (No Returns on this item) £93.24 Add
064 710-1753 HEX. SCREW:DIN 933-8.8 M6x20mm £2.70 Add
065 736-0648 WASHER:LOCK:B6:DIN 127 £2.44 Add
066 712-0689 NUT:HEX:M6-1:DIN 934 £2.33 Add
067 FG105142 LASHING STRAP N/A POA
068 FG105924 THROTTLE CABLE DIFFERENTIAL £72.61 Add
069 736-0668 WASHER £2.23 Add
070 712-0689 NUT:HEX:M6-1:DIN 934 £2.33 Add
071 FG105734 EXTENSION SPRING £19.28 Add
072 FG101020 FUEL TANK £165.77 Add
073 FG101021 CAP FUEL £28.62 Add
074 FG106195 TANK CLAMP N/A POA
075 FG106194 RETAINING PLATE N/A POA
076 FG106196 BRACKET HANDBRAKE N/A POA
077 710-1798 SCREW M5X30mm (RED) £4.02 Add
078 736-0768 WASHER:LOCK:B5 DIN 127: £3.05 Add
079 736-0661 WASHER A 5,3 DIN 9021 £3.85 Add
080 710-1705 HEX. SCREW:M5X16:DIN 933 8.8 £4.00 Add
081 736-0768 WASHER:LOCK:B5 DIN 127: £3.05 Add
082 736-0661 WASHER A 5,3 DIN 9021 £3.85 Add
083 FG100049 FILLISTER FLANGE HEAD SCREW £3.05 Add
084 FG102001 CIRCLIP ? 7/16" £3.70 Add
085 FG100021 ELECTRIC CLUTCH SMALL £284.90 Add
086 FG105870 KEY £3.70 Add
087 FG100350 THROTTLE CABLE £42.40 Add
088 FG100351 HAND BRAKE CABLE £41.59 Add
089 FG100349 STARTER CABLE £47.88 Add
090 710-1017 TAP SCREW £2.97 Add
091 FG100013 ELAPSED HOUR COUNTER £158.72 Add
092 FG105334 IGNITION LOCK £89.42 Add
093 FG100036 ROCKER SWITCH 2-POLE, GREEN £23.84 Add
094 FG100035 ROCKER SWITCH 2-POLE, BLACK £14.06 Add
095 FG100033 SIGNAL LAMP, BLIND GREEN £5.41 Add
096 FG105039 SKALENLAMPE SOCKEL E10 £7.77 Add
097 FG105500 FASSUNG OHNE BLENDE E 10 £17.41 Add
098 752S721W04 KAWA-MOTOR-TWIN £1,643.19 Add
099 FG102005 HEX-NUT N/A POA
100 FG100126 HEXAGON SCREW N/A POA
101 FG105856 COUNTERSUNK SOCKET SCREW N/A POA
102 736-0700 FLAT WASHER £2.63 Add
103 712-0692 HEX NUT £3.10 Add
104 FG105500 FASSUNG OHNE BLENDE E 10 £17.41 Add
105 FG100034 SIGNAL LAMP BLIND RED £5.41 Add
106 FG105039 SKALENLAMPE SOCKEL E10 £7.77 Add
107 FG101017 BAND CLAMP FITTING £5.81 Add
108 FG107380 HITZEFEST MTD SCHWARZ GEPULVER N/A POA
109 FG107373 PULLEY ENGINE KAWA/B&S N/A POA
110 FG107393 SCHUTZBLECH AUSPUFF N/A POA
111 FG105067 SCREW £17.20 Add
112 FG106193 FUEL LINE N/A POA
113 752B0496B1 ENGINE B&S 20.0HP VTWN 12V INT N/A POA
114 FG102005 HEX-NUT N/A POA
115 FG100126 HEXAGON SCREW N/A POA
116 FG105856 COUNTERSUNK SOCKET SCREW N/A POA
117 736-0700 FLAT WASHER £2.63 Add
118 712-0692 HEX NUT £3.10 Add
119 FG101016 HEXAGONALE SCREW £3.49 Add
120 FG101017 BAND CLAMP FITTING £5.81 Add
121 FG105719 EXHAUST B&S 20PS INTEK.G. N/A POA
122 FG101031 HEXAGON SCREW 5/16"-UNC x 3/4" £3.34 Add
123 736-0649A WASHER:LOCK:B8:DIN 12 736-0649 £2.70 Add
124 FG107373 PULLEY ENGINE KAWA/B&S N/A POA
125 FG107393 SCHUTZBLECH AUSPUFF N/A POA
126 FG12606 LINE-FUEL N/A POA
127 751-10517A OIL DRAIN £38.87 Add
128 751-3141 OBSOLETE N/A
129 751-3142 CAP:DRAIN:OIL £17.58 Add
130 FG107372 MOTORRIEMENSCHEIBE HATZ DIESEL N/A POA
131 FG101016 HEXAGONALE SCREW £3.49 Add
132 710-1733 HEX. SCREW M8x35 DIN 933-8.8 £4.25 Add
133 FG107361 SENKSCHRAUBE M8x35 DIN7991-8.8 N/A POA
134 736-0700 FLAT WASHER £2.63 Add
135 712-0692 HEX NUT £3.10 Add
