MTD012100

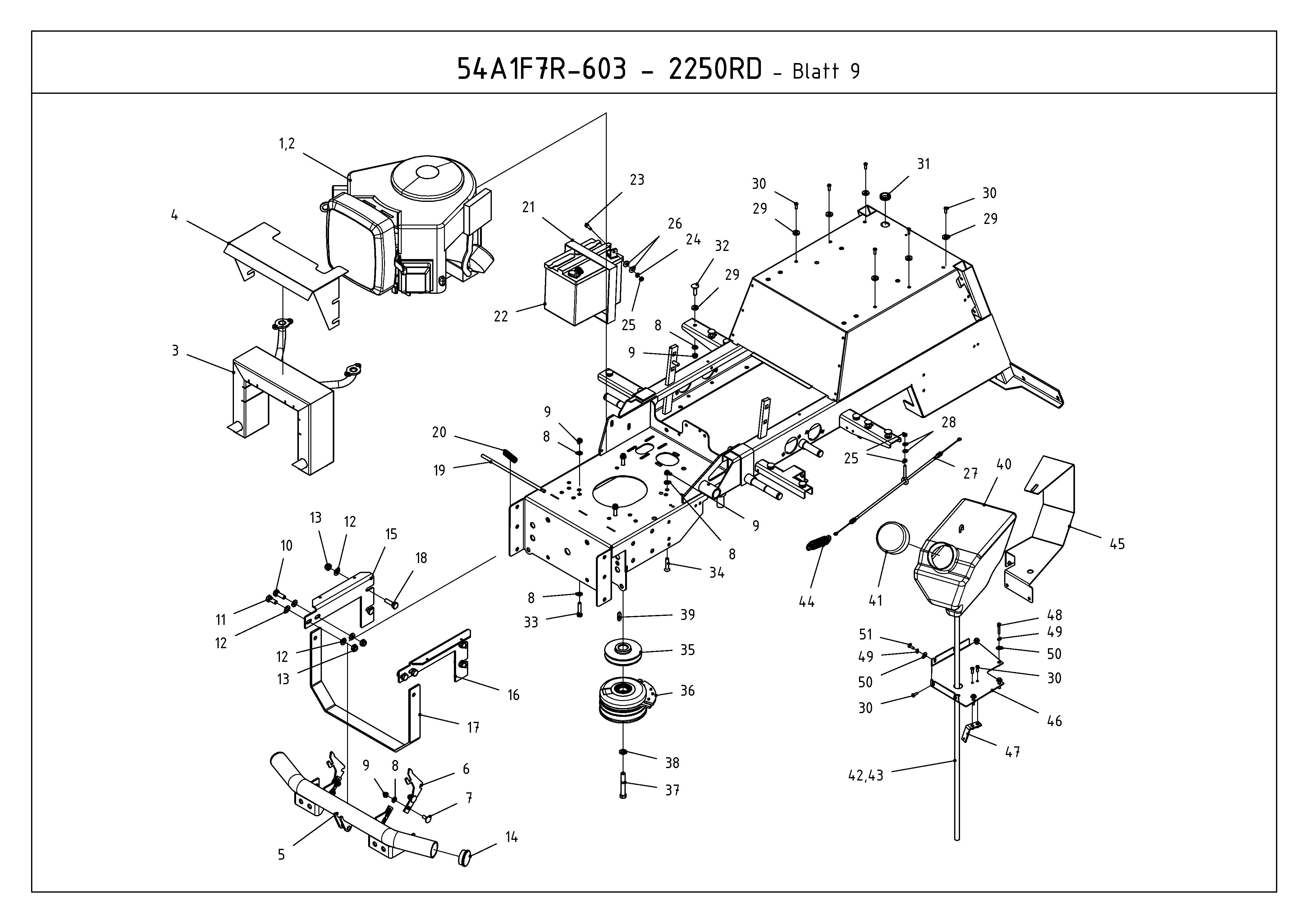

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	752S721W04	KAWA-MOTOR-TWIN	£1,643.19	Add
002	FG102005	HEX-NUT	N/A	POA
003	FG107380	HITZEFEST MTD SCHWARZ GEPULVER	N/A	POA
004	FG107393	SCHUTZBLECH AUSPUFF	N/A	POA
005	FG106634	FG106634	N/A	POA
006	FG106635	MOTORHAUBENDREHPUNKT OBERTEIL	£22.65	Add
007	FG100079	ROUND-HEAD SCREW	£3.34	Add
008	736-0700	FLAT WASHER	£2.63	Add
009	712-0692	HEX NUT	£3.10	Add
010	FG100114	HEX BOLT	£5.40	Add
011	FG105052	HEXAGONAL SCREW	£2.54	Add
012	736-0734	WASH:FLAT:10,5 IDx20 OD DIN125	£3.20	Add
013	712-0637	NUT:M10x1.5 DIN 985 NYLOCK	£5.66	Add
014	FG106012	LAMELLA PLUG ROUND	£9.33	Add
015	FG106637	RH RADIATOR SUPPORT BRACKET	N/A	POA
016	FG106638	LH RADIATOR SUPPORT BRACKET	N/A	POA
017	FG106636	AUSPUFFSCHUTZ UNIVERSALSTOSS-	N/A	POA
018	FG100115	HEXAGONAL SCREW	£3.45	Add
019	FG100368	FIXING, HOOD	£13.50	Add
020	FG100166	EXTENSION SPRING	£6.86	Add
021	FG105142	LASHING STRAP	N/A	POA
022	5032-u3-0002	BATTERY MF896 (No Returns on this item)	£93.24	Add
023	710-1753	HEX. SCREW:DIN 933-8.8 M6x20mm	£2.70	Add
024	736-0648	WASHER:LOCK:B6:DIN 127	£2.44	Add
025	712-0689	NUT:HEX:M6-1:DIN 934	£2.33	Add
026	736-0685	WASHER	£3.26	Add
027	FG105924	THROTTLE CABLE DIFFERENTIAL	£72.61	Add
028	736-0668	WASHER	£2.23	Add
029	FG100144	DISTANCE RUBBER 8mm	N/A	POA
030	FG100049	FILLISTER FLANGE HEAD SCREW	£3.05	Add
031	FG106362	GROMMET d22 D30 s1,6 B25,5	N/A	POA
032	710-04451	BOLT:M8x1.25x25 DIN 603	£3.42	Add
033	FG100126	HEXAGON SCREW	N/A	POA
034	FG105856	COUNTERSUNK SOCKET SCREW	N/A	POA
035	FG107373	PULLEY ENGINE KAWA/B&S	N/A	POA
036	FG100021	ELECTRIC CLUTCH SMALL	£284.90	Add
037	FG101016	HEXAGONALE SCREW	£3.49	Add
038	FG102001	CIRCLIP ? 7/16"	£3.70	Add
039	FG105870	KEY	£3.70	Add
040	FG101020	FUEL TANK	£165.77	Add
041	FG101021	CAP FUEL	£28.62	Add
042	FG106193	FUEL LINE	N/A	POA
043	FG101017	BAND CLAMP FITTING	£5.81	Add
044	FG105734	EXTENSION SPRING	£19.28	Add
045	FG106195	TANK CLAMP	N/A	POA
046	FG106194	RETAINING PLATE	N/A	POA
047	FG106196	BRACKET HANDBRAKE	N/A	POA
048	710-1798	SCREW M5X30mm (RED)	£4.02	Add
049	736-0768	WASHER:LOCK:B5 DIN 127:	£3.05	Add
050	736-0661	WASHER A 5,3 DIN 9021	£3.85	Add
051	710-1705	HEX. SCREW:M5X16:DIN 933 8.8	£4.00	Add
