MTD012144

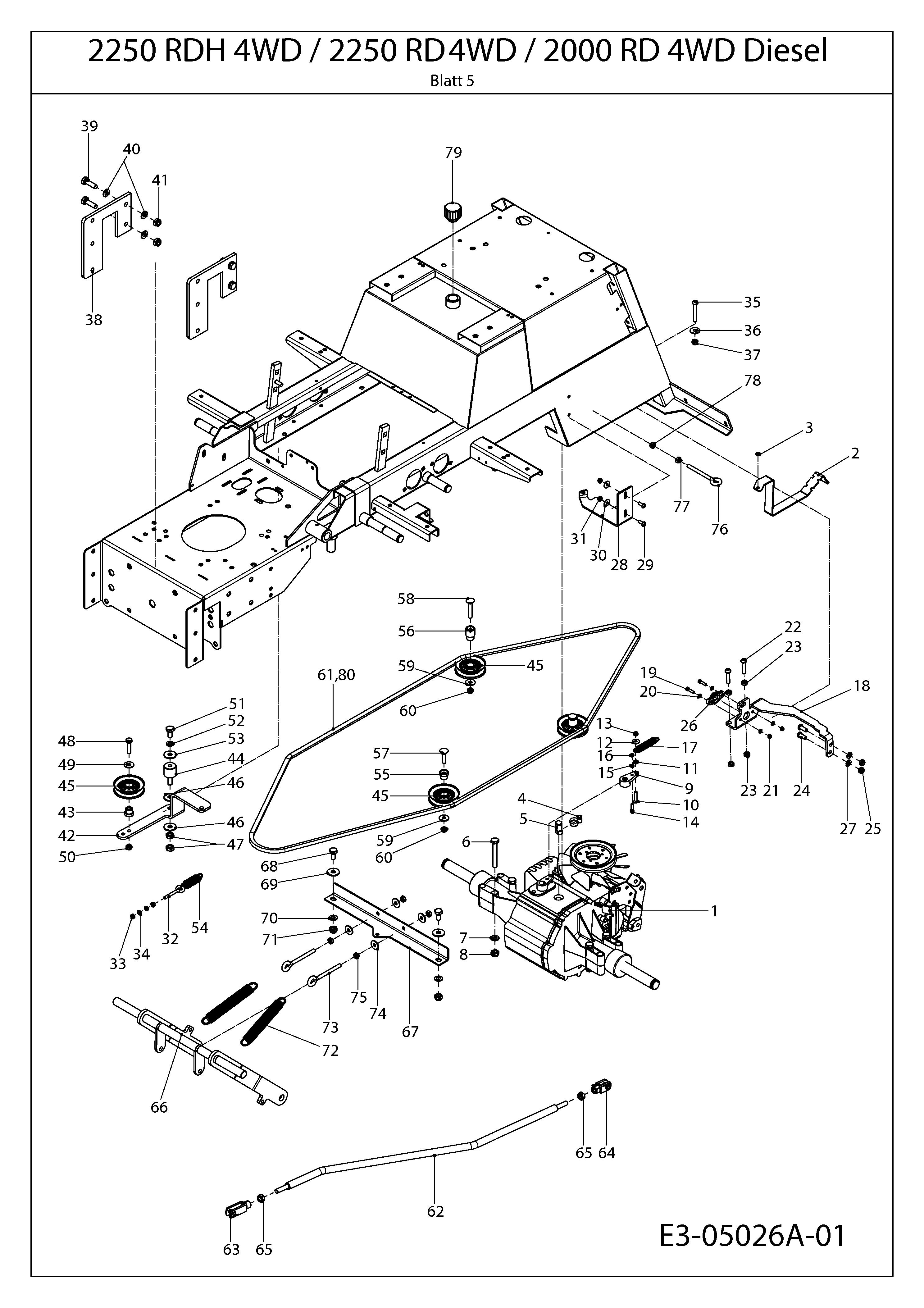

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04753	TRANS ASM:HYDRO:w/DIFF LOCK	£1,235.55	Add
002	FG105735	FREEWHEEL LEVER	N/A	POA
003	FG105848	LOCKNUT W. NYLON RING	N/A	POA
004	FG105864	HOSE CLAMP SCREWABLE	N/A	POA
005	FG105836	ANGLE THREADED NOZZLE	N/A	POA
006	FG105852	HEXAGONAL SCREW W. PISTON	N/A	POA
007	736-0734	WASH:FLAT:10,5 IDx20 OD DIN125	£3.20	Add
008	712-0637	NUT:M10x1.5 DIN 985 NYLOCK	£5.66	Add
009	FG12559	HEBEL HYDROSTAT - NACHARBEIT	N/A	POA
010	FG100094	COUNTER SUNK SOCKET SCREW	N/A	POA
011	712-0689	NUT:HEX:M6-1:DIN 934	£2.33	Add
012	736-0685	WASHER	£3.26	Add
013	712-0691	HEX NUT M6 DIN 985	£2.66	Add
014	FG100121	HEXAGON SCREW	N/A	POA
015	FG100132	SECHSKANTMUTTER M5 DIN 934-8	N/A	POA
016	712-0675	NUT:HEX:M5 x.80:DIN 985	£4.25	Add
017	FG105728	EXTENSION SPRING	£17.07	Add
018	FG105725	STEERING ANGLE FRONT BRAKE	£78.93	Add
019	FG100121	HEXAGON SCREW	N/A	POA
020	736-0602	WASHER A 5,3 DIN 125	£2.70	Add
021	712-0675	NUT:HEX:M5 x.80:DIN 985	£4.25	Add
022	FG100050	FILLISTER FLANGE HEAD SCREW	£4.94	Add
023	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
024	FG105179	FILLISTER FLANGE HEAD SCREW	£4.39	Add
025	712-0692	HEX NUT	£3.10	Add
026	FG105726	FLANGE BEARING	£74.56	Add
027	736-0700	FLAT WASHER	£2.63	Add
028	FG105724	DIFFERENTIAL ANGLE	N/A	POA
029	FG100048	FILLISTER FLANGE HEAD SCREW	£3.05	Add
030	736-0685	WASHER	£3.26	Add
031	712-0691	HEX NUT M6 DIN 985	£2.66	Add
032	FG105625	EYE SCREW	N/A	POA
033	712-0689	NUT:HEX:M6-1:DIN 934	£2.33	Add
034	736-0668	WASHER	£2.23	Add
035	FG105180	FILLISTER FLANGE HEAD SCREW	N/A	POA
036	736-0701	WASH:FLAT:8.4x24x2.00 DIN 9021	£3.80	Add
037	712-0692	HEX NUT	£3.10	Add
038	FG105775	EXTENSION PIVOT	£64.86	Add
039	FG100115	HEXAGONAL SCREW	£3.45	Add
040	736-0734	WASH:FLAT:10,5 IDx20 OD DIN125	£3.20	Add
041	712-0637	NUT:M10x1.5 DIN 985 NYLOCK	£5.66	Add
042	FG105829	CLAMPING ANGLE PLATE	£49.07	Add
043	FG100405	SPACER SLEEVE SHORT	£21.95	Add
044	FG100392	STEERING SEGMENT LEADING	£25.25	Add
045	FG105738	PULLEY SPZ	£62.50	Add
046	736-0702	WASHER	£2.40	Add
047	712-0635	NUT M10-8 DIN 934	£2.93	Add
048	710-1733	HEX. SCREW M8x35 DIN 933-8.8	£4.25	Add
049	736-0701	WASH:FLAT:8.4x24x2.00 DIN 9021	£3.80	Add
050	712-0692	HEX NUT	£3.10	Add
051	710-1785	Screw 21.1441.87	£2.90	Add
052	736-0686	NO LONGER AVAILABLE	N/A	POA
053	736-0702	WASHER	£2.40	Add
054	FG100163	TENSION SPRING	£11.93	Add
055	FG100405	SPACER SLEEVE SHORT	£21.95	Add
056	FG105740	SPACER SLEEVE LONG 31,5mm	£16.65	Add
057	710-1718	NO LONGER AVAILABLE	N/A	POA
058	710-1719	BOLT	£4.89	Add
059	736-0701	WASH:FLAT:8.4x24x2.00 DIN 9021	£3.80	Add
060	712-0692	HEX NUT	£3.10	Add
061	FGF105736		N/A	POA
062	FG105727	ACTIVATION LEVERAGE	£106.82	Add
063	FG55295	GABELKOPF A 10x40-M10 DIN71752	£13.39	Add
064	FG100174	CLEVIS A 10x20-M10 DIN71752	£27.88	Add
065	712-0635	NUT M10-8 DIN 934	£2.93	Add
066	FG105760	EXCAVATION MOWING MACHINE	£149.78	Add
067	FG105770	SPRING BRACKET MOW. MACH.	N/A	POA
068	710-1785	Screw 21.1441.87	£2.90	Add
069	736-0702	WASHER	£2.40	Add
070	736-0734	WASH:FLAT:10,5 IDx20 OD DIN125	£3.20	Add
071	712-0637	NUT:M10x1.5 DIN 985 NYLOCK	£5.66	Add
072	FG105761	EXTENSION SPRING	£16.26	Add
073	FG100052	EYE SCREW	N/A	POA
074	736-0701	WASH:FLAT:8.4x24x2.00 DIN 9021	£3.80	Add
075	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
076	FG100052	EYE SCREW	N/A	POA
077	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
078	712-0692	HEX NUT	£3.10	Add
079	FG101023	BLEED SCREW + SEAL	£44.10	Add
080	FG106446	BELT SPA 2982 LW	£104.11	Add
