MTD012146

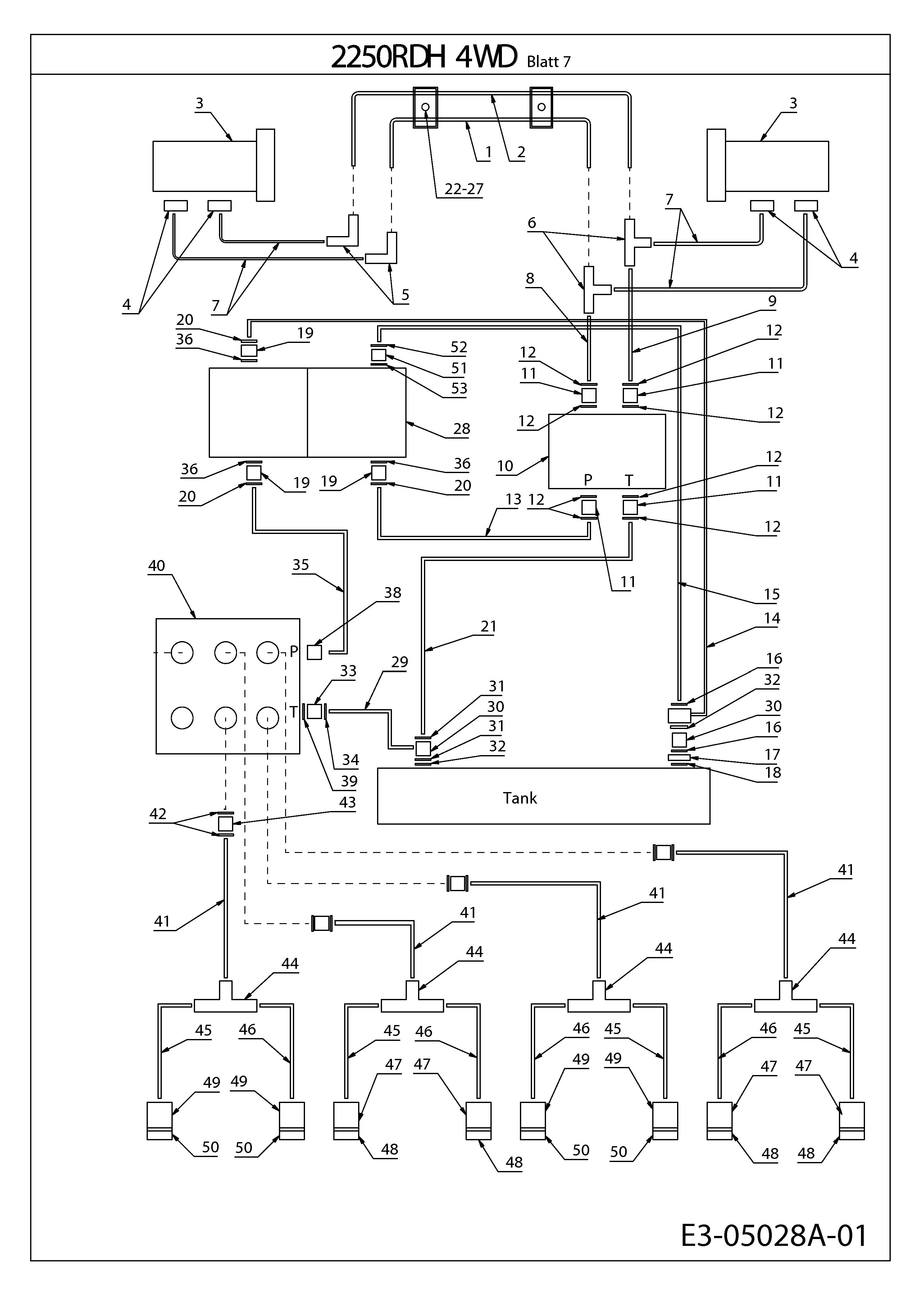

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	FG100805	PIPE INTERIOR:Ø10x1,5x500	N/A	POA
002	FG100804	PIPE EXTERNAL:Ò10x1,5x565	N/A	POA
003	FG106248	OIL ENGINE	£399.19	Add
004	FG100801	STRAIGHT SCREW-IN BOLTING	£20.83	Add
005	FG100807	ANGLE SCREWING L10 o.m+d	£17.31	Add
006	FG100806	T-SHAPE SCREW CONNECTION L10	£21.63	Add
007	FG105753	HYDRAULIC HOSE 1SNK 06X440	£98.56	Add
008	FG105748	HYDRAULIC HOSE 1SNK 08x320	N/A	POA
009	FG105749	HYDRAULIC HOSE 1SNK 08x300	N/A	POA
010	FG105381	CONTROL VALVE	£328.52	Add
011	FG100330	HOLLOW SCREW 3/8" SHORT 34mm	N/A	POA
012	FG100306	CUBRIC RING 3/8" 17x23x1,5 CU	£4.25	Add
013	FG105751	HYDRAULIC HOSE 1SNK 10x300	£95.82	Add
014	FG106033	SIPHON PIPE GCW.NW 13x860 LG	£202.78	Add
015	FG105752	SIPHON PIPE GCW.NW 16x860	£266.71	Add
016	FG100305	CUBRIC RING	£4.25	Add
017	FG100002	HYDRAULIC FILTER	£70.63	Add
018	FG101096	CUBRIC RING	N/A	POA
019	FG100330	HOLLOW SCREW 3/8" SHORT 34mm	N/A	POA
020	FG100306	CUBRIC RING 3/8" 17x23x1,5 CU	£4.25	Add
021	FG105750	HYDRAULIC HOSE 1SNK 12x1200	N/A	POA
022	FG100800	CLAMP HALF/DOUBLE TUBE CLAMPS	£8.58	Add
023	FG106139	HEXAGONAL SCREW	N/A	POA
024	736-0685	WASHER	£3.26	Add
025	FG100383	SPACER	£9.08	Add
026	712-0691	HEX NUT M6 DIN 985	£2.66	Add
027	712-0689	NUT:HEX:M6-1:DIN 934	£2.33	Add
028	FG100158	TWIN-GEAR PUMP	£851.24	Add
029	FG105750	HYDRAULIC HOSE 1SNK 12x1200	N/A	POA
030	FG101097	DOUBLE HOLLOW SCREW 1/2"	£132.14	Add
031	FG100305	CUBRIC RING	£4.25	Add
032	FG105302	SEAL RING 1/2"	£9.08	Add
033	FG100330	HOLLOW SCREW 3/8" SHORT 34mm	N/A	POA
034	FG100306	CUBRIC RING 3/8" 17x23x1,5 CU	£4.25	Add
035	FG105177	HYDRAULIC HOSE 1SNK 08x550	£77.52	Add
036	FG106463	SEAL RING 22	£17.18	Add
038	FG100410	STRAIGHT SCREWING	N/A	POA
039	FG105499	SEAL RING 3/8"	£15.86	Add
040	FG105174	TRIPLE CONTROL BLOCK	£676.99	Add
041	FG105148	HYDRAULIC HOSE 1SNK 06x430	N/A	POA
042	FG105138	CUBRIC RING	£3.85	Add
043	FG105097	HOLLOW SCREW 1/4"	£13.25	Add
044	FG105139	T-SHAPE SCREW CONNECTION	N/A	POA
045	FG105145	HYDRAULIC HOSE 1SNK 06x1050	N/A	POA
046	FG105171	HYDRAULIC HOSE 1SNK 06x1180	£90.34	Add
047	FG105140	FIRG SOCKET 1/4"BSP BGR.1	£138.66	Add
048	FG105134	DUST CAP SOCKET	£16.26	Add
049	FG105141	PLUG A7 Bgr 1 SCHOTT	£88.27	Add
050	FG105133	DUST CAP PLUG	£15.86	Add
051	FG100311	HOLLOW SCREW 1/2" (POLE 22mm)	£80.94	Add
052	FG100305	CUBRIC RING	£4.25	Add
053	FG106463	SEAL RING 22	£17.18	Add
