MTD012124

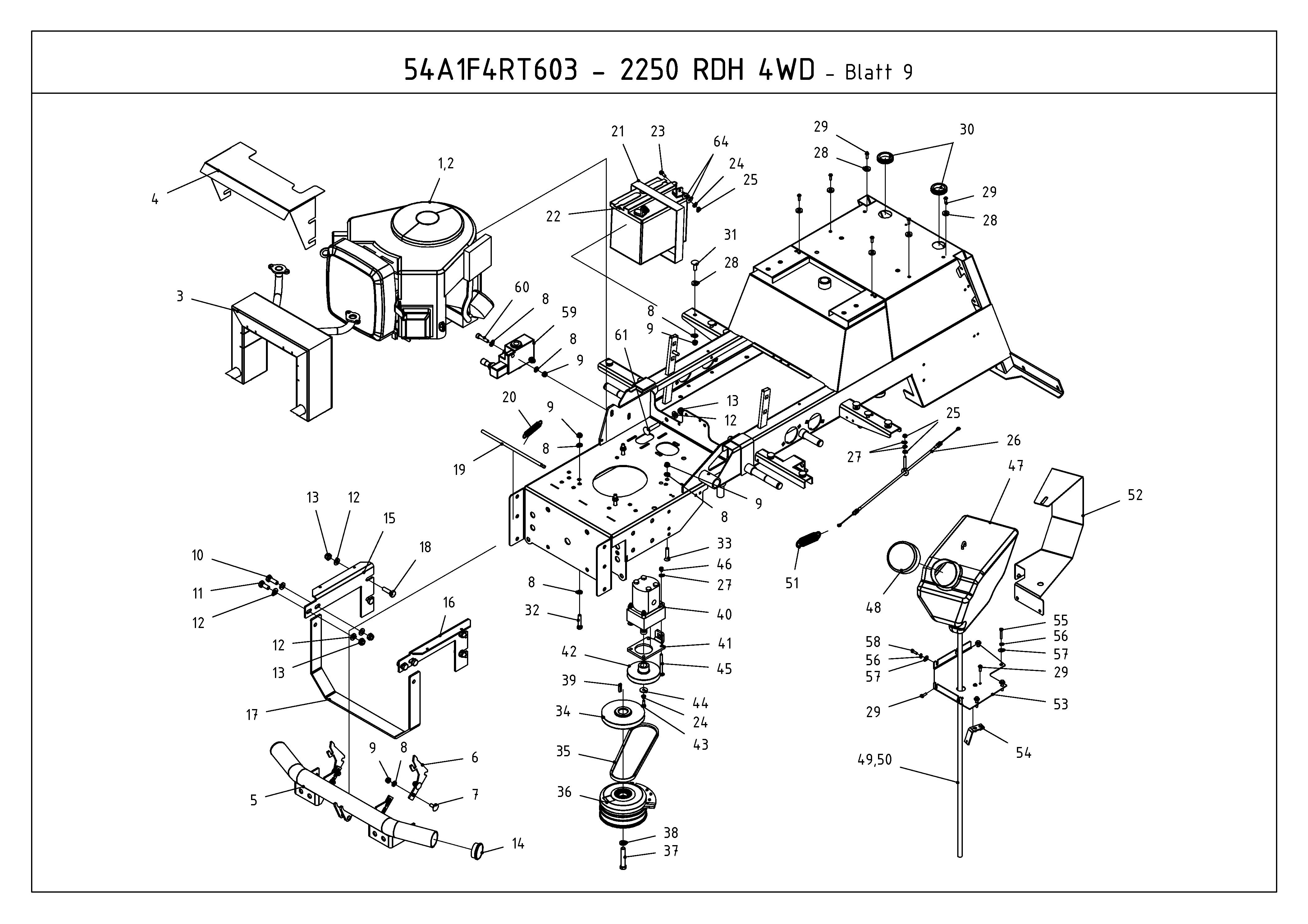

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	752S721W04	KAWA-MOTOR-TWIN	£1,643.19	Add
002	FG102005	HEX-NUT	N/A	POA
003	FG107380	HITZEFEST MTD SCHWARZ GEPULVER	N/A	POA
004	FG107393	SCHUTZBLECH AUSPUFF	N/A	POA
005	FG106634	FG106634	N/A	POA
006	FG106635	MOTORHAUBENDREHPUNKT OBERTEIL	£22.65	Add
007	FG100079	ROUND-HEAD SCREW	£3.34	Add
008	736-0700	FLAT WASHER	£2.63	Add
009	712-0692	HEX NUT	£3.10	Add
010	FG100114	HEX BOLT	£5.40	Add
011	FG105052	HEXAGONAL SCREW	£2.54	Add
012	736-0734	WASH:FLAT:10,5 IDx20 OD DIN125	£3.20	Add
013	712-0637	NUT:M10x1.5 DIN 985 NYLOCK	£5.66	Add
014	FG106012	LAMELLA PLUG ROUND	£9.33	Add
015	FG106637	RH RADIATOR SUPPORT BRACKET	N/A	POA
016	FG106638	LH RADIATOR SUPPORT BRACKET	N/A	POA
017	FG106636	AUSPUFFSCHUTZ UNIVERSALSTOSS-	N/A	POA
018	FG100115	HEXAGONAL SCREW	£3.45	Add
019	FG100368	FIXING, HOOD	£13.50	Add
020	FG100166	EXTENSION SPRING	£6.86	Add
021	FG105142	LASHING STRAP	N/A	POA
022	5032-u3-0002	BATTERY MF896 (No Returns on this item)	£93.24	Add
023	710-1753	HEX. SCREW:DIN 933-8.8 M6x20mm	£2.70	Add
024	736-0648	WASHER:LOCK:B6:DIN 127	£2.44	Add
025	712-0689	NUT:HEX:M6-1:DIN 934	£2.33	Add
026	FG105924	THROTTLE CABLE DIFFERENTIAL	£72.61	Add
027	736-0668	WASHER	£2.23	Add
028	FG100144	DISTANCE RUBBER 8mm	N/A	POA
029	FG100049	FILLISTER FLANGE HEAD SCREW	£3.05	Add
030	FG105774	CABLE GROMMET	N/A	POA
031	710-04451	BOLT:M8x1.25x25 DIN 603	£3.42	Add
032	FG100126	HEXAGON SCREW	N/A	POA
033	FG105856	COUNTERSUNK SOCKET SCREW	N/A	POA
034	FG106243	FG106243	N/A	POA
035	FG55689	BELT	£32.18	Add
036	FG100021	ELECTRIC CLUTCH SMALL	£284.90	Add
037	FG101016	HEXAGONALE SCREW	£3.49	Add
038	FG102001	CIRCLIP ? 7/16"	£3.70	Add
039	FG105870	KEY	£3.70	Add
040	FG100158	TWIN-GEAR PUMP	£851.24	Add
041	FG105744	ADAPTER PLATE, ATTACH. BEARING	£57.02	Add
042	FG105714	PULLEY	£52.69	Add
043	710-1690	HHCS:M6-1:16.00	£3.39	Add
044	FG100072	SCHEIBE 6,6 DIN 440 ST	£3.05	Add
045	710-04634	BOLT:CRG:M6-1x30:DIN 603:GR8.8	N/A	POA
046	712-0691	HEX NUT M6 DIN 985	£2.66	Add
047	FG101020	FUEL TANK	£165.77	Add
048	FG101021	CAP FUEL	£28.62	Add
049	FG106193	FUEL LINE	N/A	POA
050	FG101017	BAND CLAMP FITTING	£5.81	Add
051	FG105734	EXTENSION SPRING	£19.28	Add
052	FG106195	TANK CLAMP	N/A	POA
053	FG106194	RETAINING PLATE	N/A	POA
054	FG106196	BRACKET HANDBRAKE	N/A	POA
055	710-1798	SCREW M5X30mm (RED)	£4.02	Add
056	736-0768	WASHER:LOCK:B5 DIN 127:	£3.05	Add
057	736-0661	WASHER A 5,3 DIN 9021	£3.85	Add
058	710-1705	HEX. SCREW:M5X16:DIN 933 8.8	£4.00	Add
059	FG105381	CONTROL VALVE	£328.52	Add
060	FG107329	ZYLINDERSCHR.M8x35 DIN 912-8.8	N/A	POA
061	FG105865	ROUND-HEAD-SCREW	N/A	POA
064	736-0685	WASHER	£3.26	Add
