MTD014054

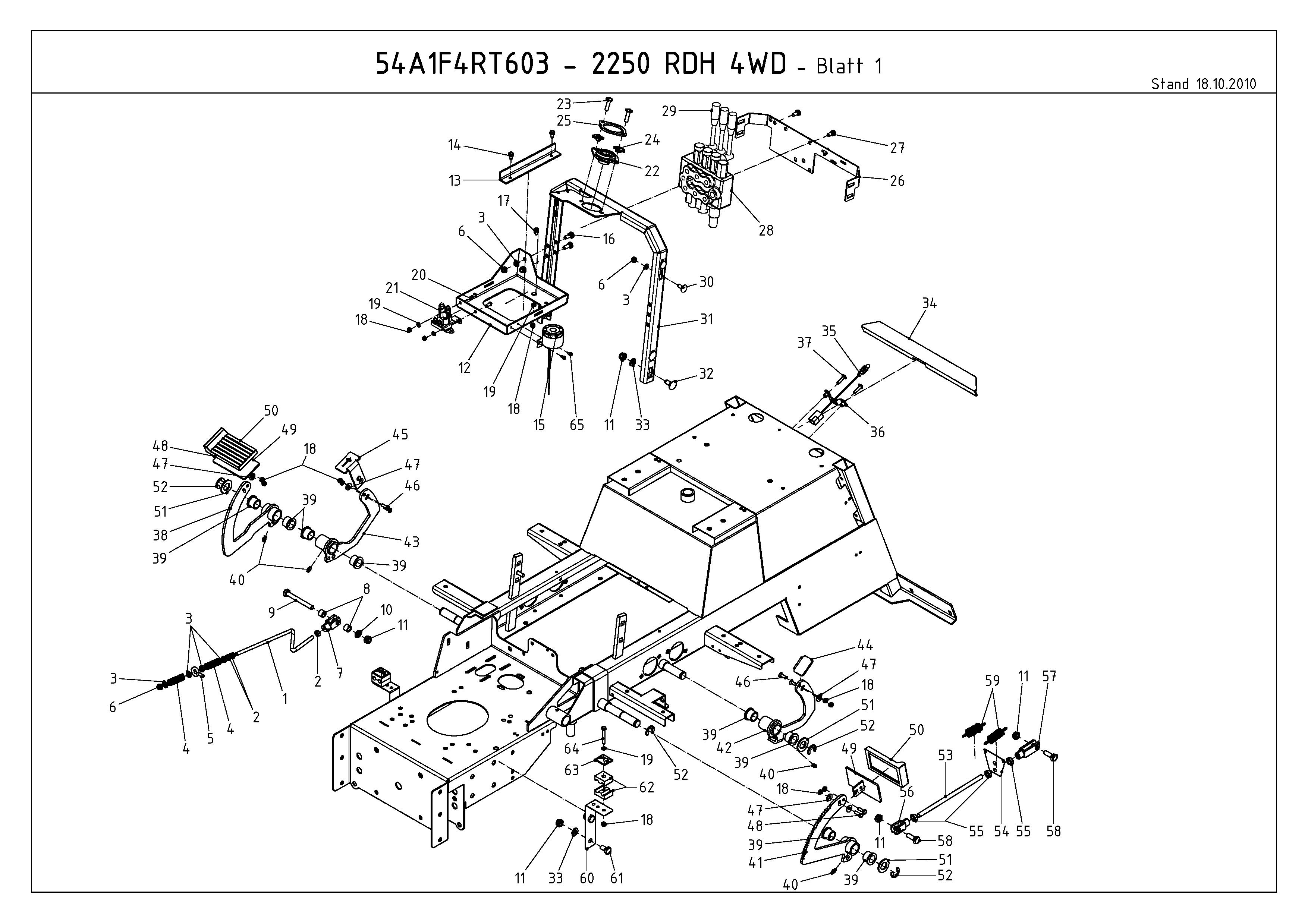

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	FG107295	ANSTEUERUNG STEUERVENTIL	N/A	POA
002	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
003	736-0700	FLAT WASHER	£2.63	Add
004	FG105732	COMPRESSION SPRING	£12.75	Add
005	FG13134	ÖSENSCHRAUBE M8x15 St GAL ZINC	N/A	POA
006	712-0692	HEX NUT	£3.10	Add
007	FG106523	CLEVIS RIGHT-HAND THREAD	£19.91	Add
008	FG107293	SPACER	N/A	POA
009	FG105049	HEXAGON SCREW	£4.36	Add
010	FG105596	HEX NUT, THIN TYPE	£2.79	Add
011	712-0637	NUT:M10x1.5 DIN 985 NYLOCK	£5.66	Add
012	FG105372	BATTERY HOLDER	£97.01	Add
013	FG12603	BATTERIEKLEMMUNG	N/A	POA
014	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
015	FG12544	SIGNALGEBER KPL.	£66.31	Add
016	710-1681	HEX BOLT M8 X 20 DIN 933 (RED)	£3.24	Add
017	FG100093	COUNTERSUNK SOCKET SCREW	£2.30	Add
018	712-0691	HEX NUT M6 DIN 985	£2.66	Add
019	736-0668	WASHER	£2.23	Add
020	FG105607	FILLISTER HEAD SCREW WITH	£2.93	Add
021	FG106327	MAGNETSCHALTER	£44.26	Add
022	FG105199	FLANGE BEARING	£26.57	Add
023	FG55451	FG55451	N/A	POA
024	726-0365	SPEED NUT M8, U-TYPE 000.02.520	£5.21	Add
025	FG105672	INDERMEDIATE PLATE, STEERING	N/A	POA
026	FG105172	CONTROL BLOCK RETAINER	N/A	POA
027	710-1376	CAP SCREW	£4.50	Add
028	FG105174	TRIPLE CONTROL BLOCK	£676.99	Add
029	FG105174HEB	HANDHEBEL ZU 3FACH STEUERBLOCK	£20.33	Add
030	FG100079	ROUND-HEAD SCREW	£3.34	Add
031	FG12821	HALTEBÜGEL ARMATURENBRETT	N/A	POA
032	FG100077	ROUND-HEAD SCREW	N/A	POA
033	736-0734	WASH:FLAT:10,5 IDx20 OD DIN125	£3.20	Add
034	FG105481	SEALING PROFILE	£34.56	Add
035	FG106513	POSITION SENSOR	£74.70	Add
036	FG107218	HOLDER CONTACT	£25.91	Add
037	FG106390	LINSENFLANSCHKOPFSCHR.M6x25	N/A	POA
038	FG100355	PEDAL ARM DRIVE AXLE	N/A	POA
039	FG100295	FLOATING BEARING WITH COLLAR	£16.13	Add
040	FG105045	CONE LUBRICATING ELEMENT	£4.36	Add
041	FG100389	PEDAL RETAINER, BRAKE	N/A	POA
042	FG105730	PEDAL RETAINER DIFF. BARRIER	N/A	POA
043	FG105143	PEDAL RETAINER REVERSE GEAR	N/A	POA
044	FG105933	DIFFERENTIAL ACTUATION	N/A	POA
045	FG105667	RETURN PEDAL	£27.63	Add
046	FG105059	COUNTER SUNK SOCKET SCREW	£2.30	Add
047	736-0685	WASHER	£3.26	Add
048	710-1753	HEX. SCREW:DIN 933-8.8 M6x20mm	£2.70	Add
049	FG100390	PEDAL PLATE FORWARD	N/A	POA
050	FG100004	pedal rubber	N/A	POA
051	FG100056	WASHER	£2.93	Add
052	FG100083	RETAINING WASHER	£23.81	Add
053	FG100369	OPERATION LEVERAGE, BRAKE	£23.21	Add
054	FG100196	FASTENING PLATE, SPRING	£28.82	Add
055	712-0635	NUT M10-8 DIN 934	£2.93	Add
056	FG55294	GABELKOPF A 10x20-M10 DIN71752	N/A	POA
057	FG55295	GABELKOPF A 10x40-M10 DIN71752	£13.39	Add
058	FG105052	HEXAGONAL SCREW	£2.54	Add
059	FG100163	TENSION SPRING	£11.93	Add
060	FG106123	FG106123	N/A	POA
061	710-1785	Screw 21.1441.87	£2.90	Add
062	FG100800	CLAMP HALF/DOUBLE TUBE CLAMPS	£8.58	Add
063	FG105157	FG105157	N/A	POA
064	FG105096	FG105096	N/A	POA
065	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add
