MTD014057

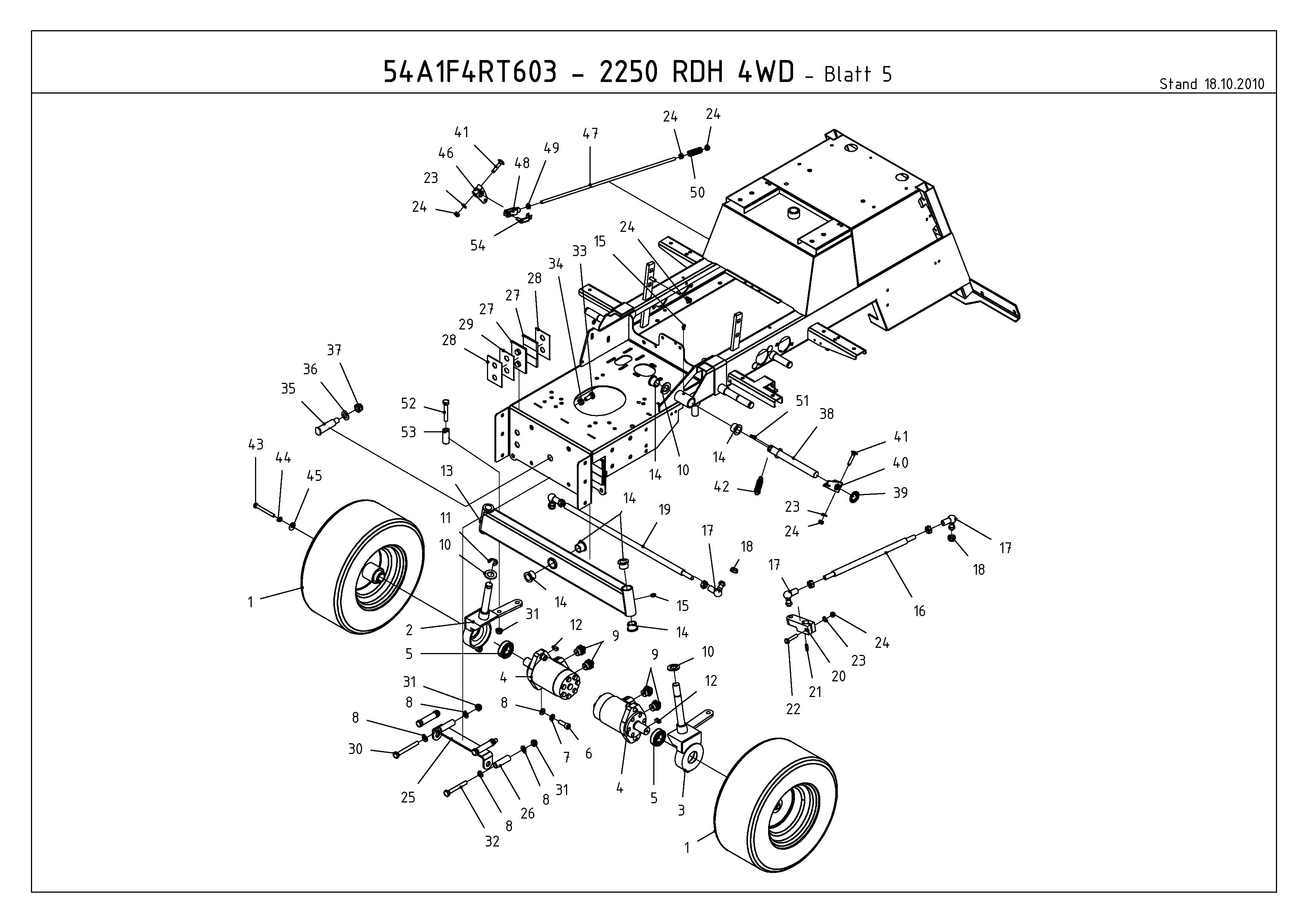

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	FG105678	VORDERRAD ALLRAD RASENBEREIFG.	£372.06	Add
002	FG100359	JOURNAL RIGHT, ALL-WHEEL	£293.76	Add
003	FG100358	JOURNAL LEFT, ALL-WHEEL	£293.76	Add
004	FG106248	OIL ENGINE	£399.19	Add
005	FG100161	Ball bearing	£26.87	Add
006	FG101082	FILISTER HEAD SCREW	£2.79	Add
007	736-0686	NO LONGER AVAILABLE	N/A	POA
008	736-0734	WASH:FLAT:10,5 IDx20 OD DIN125	£3.20	Add
009	FG100801	STRAIGHT SCREW-IN BOLTING	£20.83	Add
010	FG100056	WASHER	£2.93	Add
011	FG100083	RETAINING WASHER	£23.81	Add
012	FG106964	KEY	£4.76	Add
013	FG105659	FRONT AXLE CASING ALL-WHEEL	£159.34	Add
014	FG100295	FLOATING BEARING WITH COLLAR	£16.13	Add
015	FG105045	CONE LUBRICATING ELEMENT	£4.36	Add
016	FG100387	STEERING ROD	N/A	POA
017	FG100177	ANGLE JOINT	£35.47	Add
018	FG100138	HEX-NUT SELF-LOCKING	£2.54	Add
019	FG105674	TRACK ROD LONG	£61.19	Add
020	FG100298	STEERING ARM, FRONT AXLE	£120.94	Add
021	FG100087	KEY	£3.45	Add
022	710-1308	HEX BOLT	£3.80	Add
023	736-0700	FLAT WASHER	£2.63	Add
024	712-0692	HEX NUT	£3.10	Add
025	FG105834	RETAINER BRACKET	£79.22	Add
026	FG100363	SPACER TUBE	£13.39	Add
027	FG105658	LOWER GUIDANCE	£9.33	Add
028	FG105665	DISTANCE PLATE FRONT AXLE 2	N/A	POA
029	FG105664	DISTANCE PLATE FRONT AXLE 3	£12.34	Add
030	FG106301	HEX BOLT	£5.67	Add
031	712-0637	NUT:M10x1.5 DIN 985 NYLOCK	£5.66	Add
032	FG100117	HEX BOLT	£4.76	Add
033	FG100114	HEX BOLT	£5.40	Add
034	712-0635	NUT M10-8 DIN 934	£2.93	Add
035	FG100364	AXLE BOLT FRONT AXLE	£38.87	Add
036	FG101008	WASHER	£3.20	Add
037	FG100135	HEX NUT SELFLOCKING	£3.59	Add
038	FG100200	HANDBRAKE	N/A	POA
039	FG105773	SPRING WASHER	£7.13	Add
040	FG100208	RASTHEBEL:BLAU VERZINKT	£19.68	Add
041	710-1700	CARRIAGE BOLT M8x40 DIN 603-8.	£4.11	Add
042	FG100166	EXTENSION SPRING	£6.86	Add
043	FG107314	6KT-SCHRAUBE M8x75 DIN931-10.9	£3.59	Add
044	736-0649A	WASHER:LOCK:B8:DIN 12 736-0649	£2.70	Add
045	FG100073	WASHER	£2.93	Add
046	FG100198	CLAMP LEVER, CONTROLLER	N/A	POA
047	FG105731	BRAKE LEVERAGE	N/A	POA
048	711-1407	LINK	£14.01	Add
049	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
050	FG105732	COMPRESSION SPRING	£12.75	Add
051	FG100347	TRUNNING	£17.31	Add
052	750-04315	SPCR:.75 OD x.34 ID x 1.80 LG	£11.93	Add
053	FG106472	SECHSKANTSCHRAUBE M10X65	N/A	POA
054	726-0457	CLIP	£9.50	Add
