MTD014043

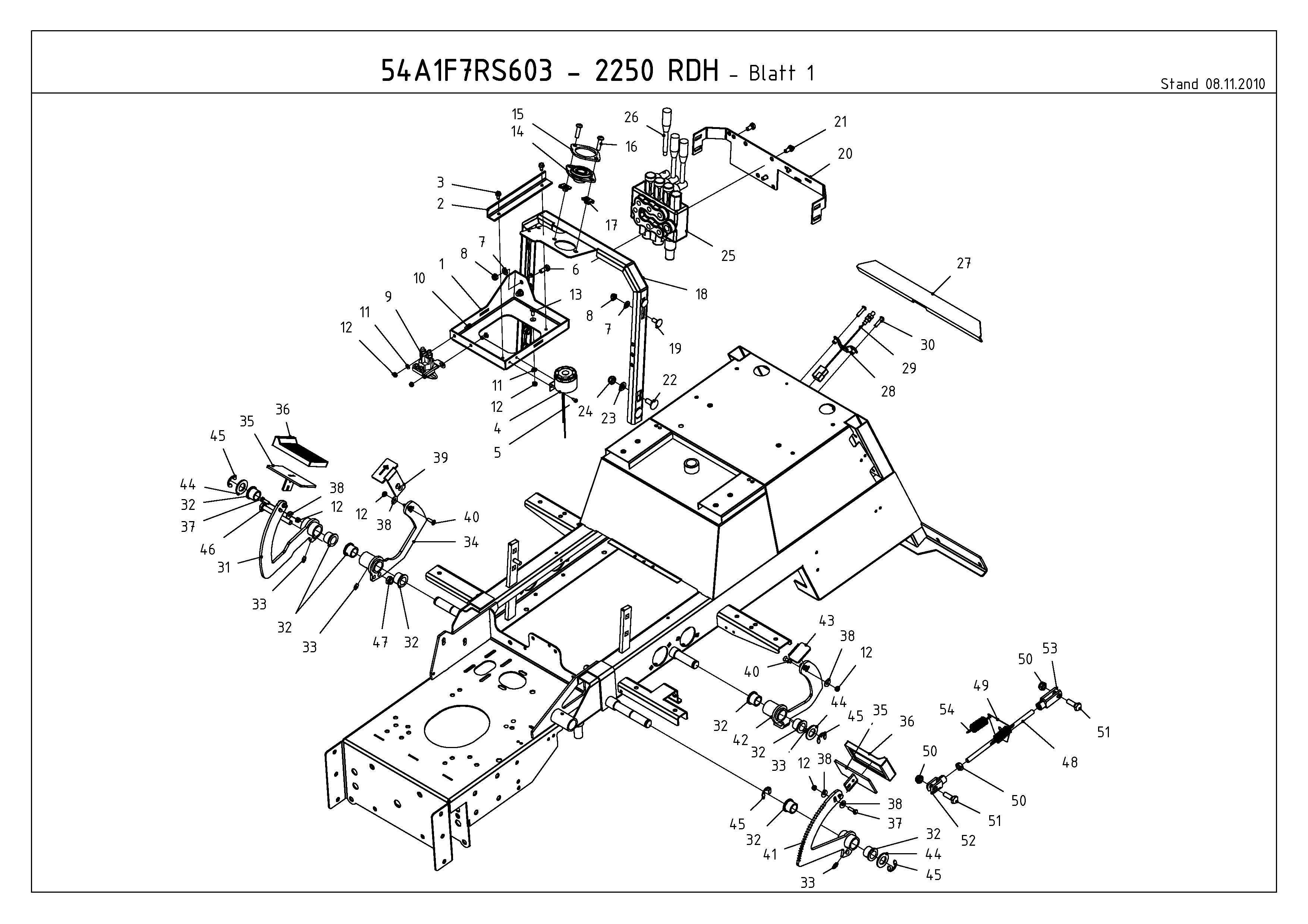

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	FG105372	BATTERY HOLDER	£97.01	Add
002	FG12603	BATTERIEKLEMMUNG	N/A	POA
003	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
004	FG12544	SIGNALGEBER KPL.	£66.31	Add
005	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add
006	710-1681	HEX BOLT M8 X 20 DIN 933 (RED)	£3.24	Add
007	736-0700	FLAT WASHER	£2.63	Add
008	712-0692	HEX NUT	£3.10	Add
009	FG106327	MAGNETSCHALTER	£44.26	Add
010	FG105607	FILLISTER HEAD SCREW WITH	£2.93	Add
011	736-0668	WASHER	£2.23	Add
012	712-0691	HEX NUT M6 DIN 985	£2.66	Add
013	FG100093	COUNTERSUNK SOCKET SCREW	£2.30	Add
014	FG105199	FLANGE BEARING	£26.57	Add
015	FG105672	INDERMEDIATE PLATE, STEERING	N/A	POA
016	FG55451	FG55451	N/A	POA
017	726-0365	SPEED NUT M8, U-TYPE 000.02.520	£5.21	Add
018	FG12821	HALTEBÜGEL ARMATURENBRETT	N/A	POA
019	FG100079	ROUND-HEAD SCREW	£3.34	Add
020	FG105172	CONTROL BLOCK RETAINER	N/A	POA
021	710-1376	CAP SCREW	£4.50	Add
022	FG100077	ROUND-HEAD SCREW	N/A	POA
023	736-0734	WASH:FLAT:10,5 IDx20 OD DIN125	£3.20	Add
024	712-0637	NUT:M10x1.5 DIN 985 NYLOCK	£5.66	Add
025	FG105174	TRIPLE CONTROL BLOCK	£676.99	Add
026	FG105174HEB	HANDHEBEL ZU 3FACH STEUERBLOCK	£20.33	Add
027	FG105481	SEALING PROFILE	£34.56	Add
028	FG106513	POSITION SENSOR	£74.70	Add
029	FG107218	HOLDER CONTACT	£25.91	Add
030	FG106390	LINSENFLANSCHKOPFSCHR.M6x25	N/A	POA
031	FG100355	PEDAL ARM DRIVE AXLE	N/A	POA
032	FG100295	FLOATING BEARING WITH COLLAR	£16.13	Add
033	FG105045	CONE LUBRICATING ELEMENT	£4.36	Add
034	FG105143	PEDAL RETAINER REVERSE GEAR	N/A	POA
035	FG100390	PEDAL PLATE FORWARD	N/A	POA
036	FG100004	pedal rubber	N/A	POA
037	710-1753	HEX. SCREW:DIN 933-8.8 M6x20mm	£2.70	Add
038	736-0685	WASHER	£3.26	Add
039	FG105667	RETURN PEDAL	£27.63	Add
040	FG105059	COUNTER SUNK SOCKET SCREW	£2.30	Add
041	FG100389	PEDAL RETAINER, BRAKE	N/A	POA
042	FG105730	PEDAL RETAINER DIFF. BARRIER	N/A	POA
043	FG105933	DIFFERENTIAL ACTUATION	N/A	POA
044	FG100056	WASHER	£2.93	Add
045	FG100083	RETAINING WASHER	£23.81	Add
046	FG105049	HEXAGON SCREW	£4.36	Add
047	FG105596	HEX NUT, THIN TYPE	£2.79	Add
048	FG100369	OPERATION LEVERAGE, BRAKE	£23.21	Add
049	FG100196	FASTENING PLATE, SPRING	£28.82	Add
050	712-0635	NUT M10-8 DIN 934	£2.93	Add
051	FG105052	HEXAGONAL SCREW	£2.54	Add
052	FG55294	GABELKOPF A 10x20-M10 DIN71752	N/A	POA
053	FG55295	GABELKOPF A 10x40-M10 DIN71752	£13.39	Add
054	FG100163	TENSION SPRING	£11.93	Add
