MTD012153

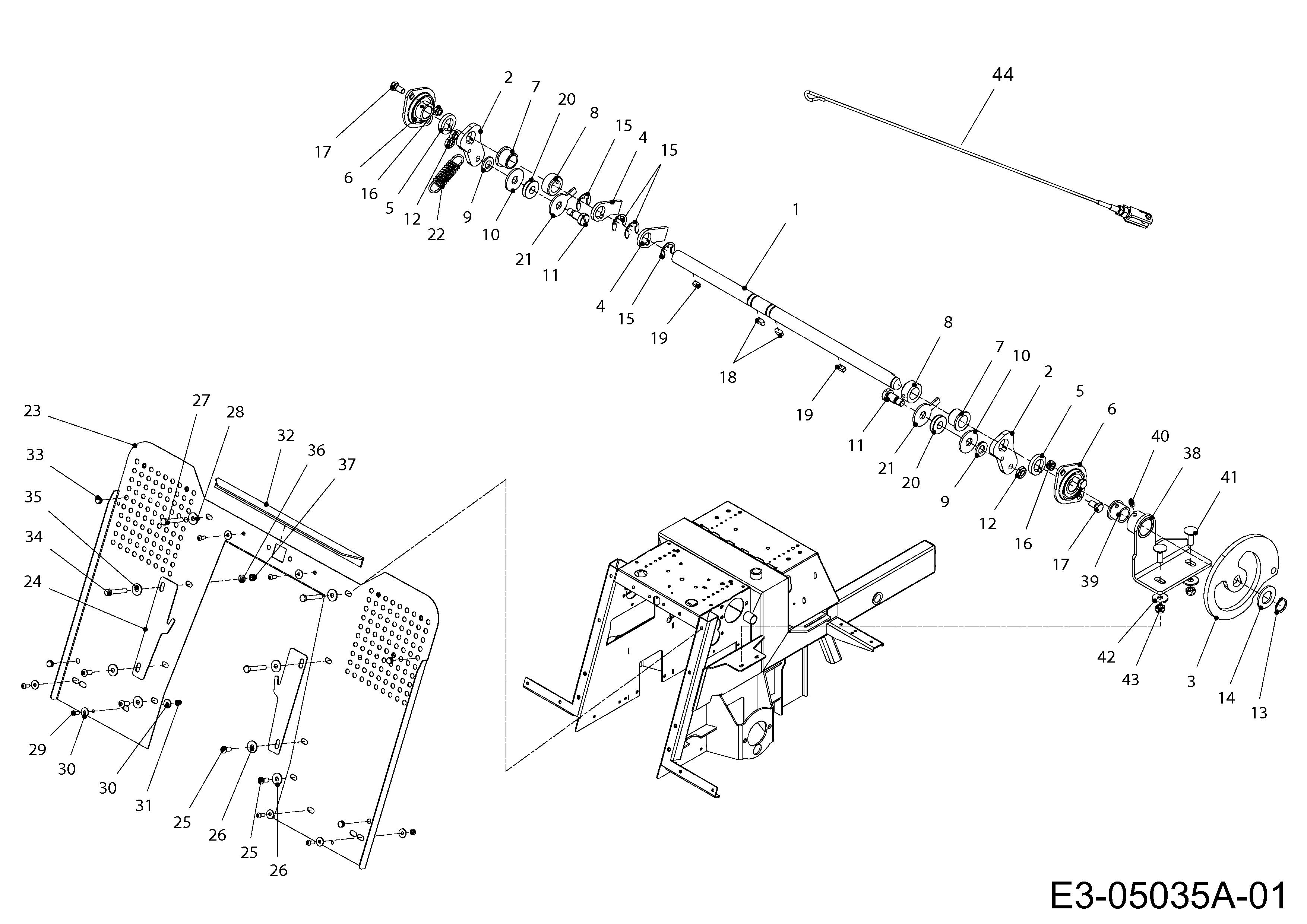

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD012153

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 FG106669 EXCAVATION SHAFT, MOW. MACH N/A POA
002 FG106670 AUSHEBEHEBEL WELLE N/A POA
003 FG106671 AUSHEBEHEBEL ZYLINDER N/A POA
004 FG106672 ANSCHLAG HÖHENEINSTELLUNG N/A POA
005 FG105092 DISTANZSCHEIBE £15.86 Add
006 FG105199 FLANGE BEARING £26.57 Add
007 FG100225 GLEITLAGER MTT BUND MFM2026-20 £7.62 Add
008 FG100091 STELLRING A 20 DIN 705 St £12.98 Add
009 736-0704 WASH:FLAT:13ID X 24OD:DIN 125 £2.93 Add
010 FG100099 SCHEIBE 13 DIN 9021 ST £4.00 Add
011 FG100182 BUNDSCHRAUBE GN 732 M10 d=12 £23.45 Add
012 FG105596 HEX NUT, THIN TYPE £2.79 Add
013 FG100075 SICHERUNGSRING F?R WELLEN 20 £2.79 Add
014 FG100056 WASHER £2.93 Add
015 FG100083 RETAINING WASHER £23.81 Add
016 FG100136 S-6KT-MUTTER M8 DIN 985-8 N/A POA
017 FG101007 HHCS:M8-1.25:16.00:GR8.8:ST £4.25 Add
018 FG106725 PASSFEDER A 6x6x14 DIN 6885 N/A POA
019 FG100090 PASSFEDER FORM B6x6x16 DIN6885 £3.59 Add
020 FG105230 UMLENKROLLE AUSHEBESEIL £19.38 Add
021 FG100209 SICHERUNGSSCHEIBE MIT HALS £15.11 Add
022 FG100163 TENSION SPRING £11.93 Add
023 FG12069 HECKBLECH GENIETET N/A POA
024 FG106987 hook N/A POA
025 FG105179 FILLISTER FLANGE HEAD SCREW £4.39 Add
026 736-0701 WASH:FLAT:8.4x24x2.00 DIN 9021 £3.80 Add
027 FG100128 FG100128 N/A POA
028 736-0701 WASH:FLAT:8.4x24x2.00 DIN 9021 £3.80 Add
029 FG100048 FILLISTER FLANGE HEAD SCREW £3.05 Add
030 736-0685 WASHER £3.26 Add
031 712-0691 HEX NUT M6 DIN 985 £2.66 Add
032 FG105481 SEALING PROFILE £34.56 Add
033 FG106188 CABLE GROMMET SELF CONTAINED N/A POA
034 FG100128 FG100128 N/A POA
035 736-0701 WASH:FLAT:8.4x24x2.00 DIN 9021 £3.80 Add
036 736-0700 FLAT WASHER £2.63 Add
037 712-0692 HEX NUT £3.10 Add
038 FG106675 LAGERUNG MÄHWERKSAUSHEBUNG G. N/A POA
039 FG100295 FLOATING BEARING WITH COLLAR £16.13 Add
040 FG105045 CONE LUBRICATING ELEMENT £4.36 Add
041 710-04451 BOLT:M8x1.25x25 DIN 603 £3.42 Add
042 736-0701 WASH:FLAT:8.4x24x2.00 DIN 9021 £3.80 Add
043 712-0692 HEX NUT £3.10 Add
044 FG100031 EINERSEITS GEWINDE EZ400840M8 £53.66 Add
