MTD012150

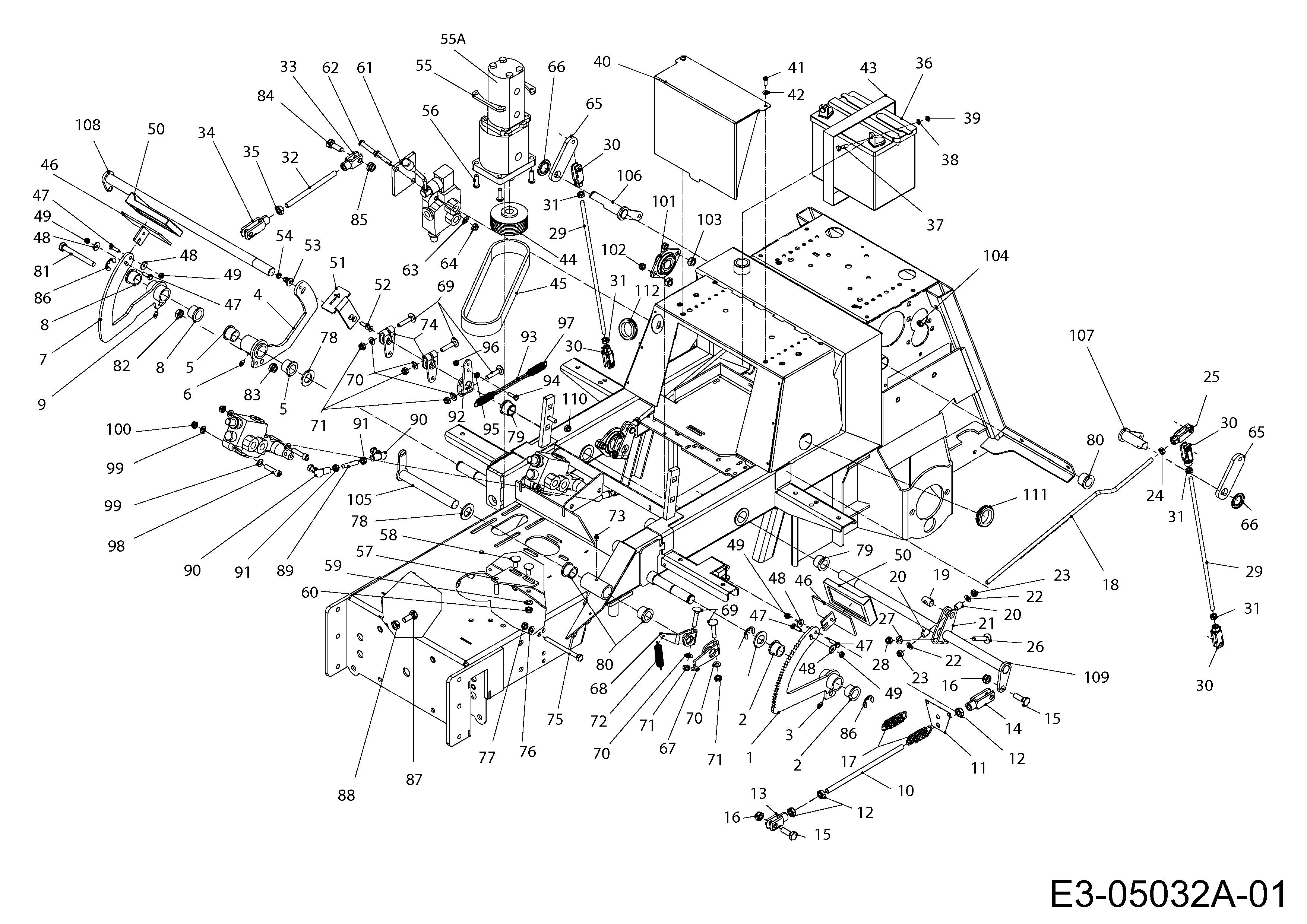

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	FG100389	PEDAL RETAINER, BRAKE	N/A	POA
002	FG100295	FLOATING BEARING WITH COLLAR	£16.13	Add
003	FG105045	CONE LUBRICATING ELEMENT	£4.36	Add
004	FG105143	PEDAL RETAINER REVERSE GEAR	N/A	POA
005	FG100295	FLOATING BEARING WITH COLLAR	£16.13	Add
006	FG105045	CONE LUBRICATING ELEMENT	£4.36	Add
007	FG100355	PEDAL ARM DRIVE AXLE	N/A	POA
008	FG100295	FLOATING BEARING WITH COLLAR	£16.13	Add
009	FG105045	CONE LUBRICATING ELEMENT	£4.36	Add
010	FG100369	OPERATION LEVERAGE, BRAKE	£23.21	Add
011	FG100196	FASTENING PLATE, SPRING	£28.82	Add
012	712-0635	NUT M10-8 DIN 934	£2.93	Add
013	FG55294	GABELKOPF A 10x20-M10 DIN71752	N/A	POA
014	FG55295	GABELKOPF A 10x40-M10 DIN71752	£13.39	Add
015	FG105052	HEXAGONAL SCREW	£2.54	Add
016	FG100137	NUT:M10x1.5 DIN 985 NYLOCK	£4.00	Add
017	FG100163	TENSION SPRING	£11.93	Add
018	FG100375	BRAKE ROD	£22.54	Add
019	FG100365	RECEIVER, BRAKE LEVERAGE	N/A	POA
020	FG100383	SPACER	£9.08	Add
021	FG100203	CLAMP LEVER BRAKE	N/A	POA
022	FG100057	WASH:FLAT:8.4 x 16 x 1.60	£2.63	Add
023	712-0692	HEX NUT	£3.10	Add
024	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
025	FG100176	CLEVIS RIGHT-HAND THREAD	£22.29	Add
026	FG100082	FG100082	N/A	POA
027	FG100057	WASH:FLAT:8.4 x 16 x 1.60	£2.63	Add
028	712-0692	HEX NUT	£3.10	Add
029	FG106668	BREMSGESTÄNGE DIREKTANTRIEB	N/A	POA
030	FG100176	CLEVIS RIGHT-HAND THREAD	£22.29	Add
031	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
032	FG100378	FG100378	N/A	POA
033	FG100174	CLEVIS A 10x20-M10 DIN71752	£27.88	Add
034	FG100175	GABELKOPF A10x40-M10 DIN 71752	£24.91	Add
035	712-0635	NUT M10-8 DIN 934	£2.93	Add
036	5032-u3-0002	BATTERY MF896 (No Returns on this item)	£93.24	Add
037	710-1753	HEX. SCREW:DIN 933-8.8 M6x20mm	£2.70	Add
038	736-0648	WASHER:LOCK:B6:DIN 127	£2.44	Add
039	712-0689	NUT:HEX:M6-1:DIN 934	£2.33	Add
040	FG106641	BATTERIEABDECKUNG	£111.14	Add
041	FG100048	FILLISTER FLANGE HEAD SCREW	£3.05	Add
042	736-0668	WASHER	£2.23	Add
043	FG105142	LASHING STRAP	N/A	POA
044	FG105321	RIPPENRIEMENSCHEIBE (?LPUMPE)	£60.18	Add
045	FG105408	RIPPENBAND 8-PK 730 Lb	£85.50	Add
046	FG100390	PEDAL PLATE FORWARD	N/A	POA
047	FG100124	6KT-SCHRAUBE M6x20 DIN 933-8.8	N/A	POA
048	736-0685	WASHER	£3.26	Add
049	712-0691	HEX NUT M6 DIN 985	£2.66	Add
050	FG100004	pedal rubber	N/A	POA
051	FG105667	RETURN PEDAL	£27.63	Add
052	FG105059	COUNTER SUNK SOCKET SCREW	£2.30	Add
053	736-0685	WASHER	£3.26	Add
054	712-0691	HEX NUT M6 DIN 985	£2.66	Add
055	FG105309	BEFESTIGUNGSPLATTE	£34.05	Add
056	FG105175	LINSENFLKPFSCHRAUBE:M8x25 10.9	£3.20	Add
057	FG101025	CLUTCH BRACE	£35.06	Add
058	FG100079	ROUND-HEAD SCREW	£3.34	Add
059	736-0700	FLAT WASHER	£2.63	Add
060	712-0692	HEX NUT	£3.10	Add
061	FG106662	DISTANZPLATTE VENTIL	N/A	POA
062	FG107405	LINSENFLKPFSCHR. M8x40 10.9	N/A	POA
063	736-0700	FLAT WASHER	£2.63	Add
064	712-0692	HEX NUT	£3.10	Add
065	FG106654	BREMSHEBEL OBEN	N/A	POA
066	FG105773	SPRING WASHER	£7.13	Add
067	FG100208	RASTHEBEL:BLAU VERZINKT	£19.68	Add
068	FG100204	FG100204	N/A	POA
069	710-1700	CARRIAGE BOLT M8x40 DIN 603-8.	£4.11	Add
070	736-0700	FLAT WASHER	£2.63	Add
071	712-0692	HEX NUT	£3.10	Add
072	FG100166	EXTENSION SPRING	£6.86	Add
073	FG105045	CONE LUBRICATING ELEMENT	£4.36	Add
074	FG100198	CLAMP LEVER, CONTROLLER	N/A	POA
075	FG105161	FG105161	N/A	POA
076	736-0700	FLAT WASHER	£2.63	Add
077	712-0692	HEX NUT	£3.10	Add
078	FG100056	WASHER	£2.93	Add
079	FG100225	GLEITLAGER MTT BUND MFM2026-20	£7.62	Add
080	FG100295	FLOATING BEARING WITH COLLAR	£16.13	Add
081	FG105049	HEXAGON SCREW	£4.36	Add
082	FG100129	6KT-MUTTER M10 DIN 934-8	N/A	POA
083	712-0637	NUT:M10x1.5 DIN 985 NYLOCK	£5.66	Add
084	FG105052	HEXAGONAL SCREW	£2.54	Add
085	712-0637	NUT:M10x1.5 DIN 985 NYLOCK	£5.66	Add
086	FG100083	RETAINING WASHER	£23.81	Add
087	FG100114	HEX BOLT	£5.40	Add
088	712-0635	NUT M10-8 DIN 934	£2.93	Add
089	FG12549	GEWINDESTANGE STEUERBLOCK	N/A	POA
090	FG100179	FG100179	N/A	POA
091	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
092	FG100197	FG100197	N/A	POA
093	FG12516	KETTE 7 GLIEDER	N/A	POA
094	710-1753	HEX. SCREW:DIN 933-8.8 M6x20mm	£2.70	Add
095	712-0689	NUT:HEX:M6-1:DIN 934	£2.33	Add
096	712-0691	HEX NUT M6 DIN 985	£2.66	Add
097	FG100166	EXTENSION SPRING	£6.86	Add
098	FG107329	ZYLINDERSCHR.M8x35 DIN 912-8.8	N/A	POA
099	736-0700	FLAT WASHER	£2.63	Add
100	712-0692	HEX NUT	£3.10	Add
101	FG105199	FLANGE BEARING	£26.57	Add
102	712-0692	HEX NUT	£3.10	Add
103	712-0635	NUT M10-8 DIN 934	£2.93	Add
104	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
105	FG100200	HANDBRAKE	N/A	POA
106	FG100374	FG100374	N/A	POA
107	FG100375	BRAKE ROD	£22.54	Add
108	FG100371	FG100371	N/A	POA
109	FG100372	BRAKE SHAFT	N/A	POA
110	712-0692	HEX NUT	£3.10	Add
111	FG105774	CABLE GROMMET	N/A	POA
112	FG105774	CABLE GROMMET	N/A	POA
55A	FG105247	HYDRAULIKPUMPE:KON.WELLE:1xGR2	£1,336.99	Add
