MTD009953

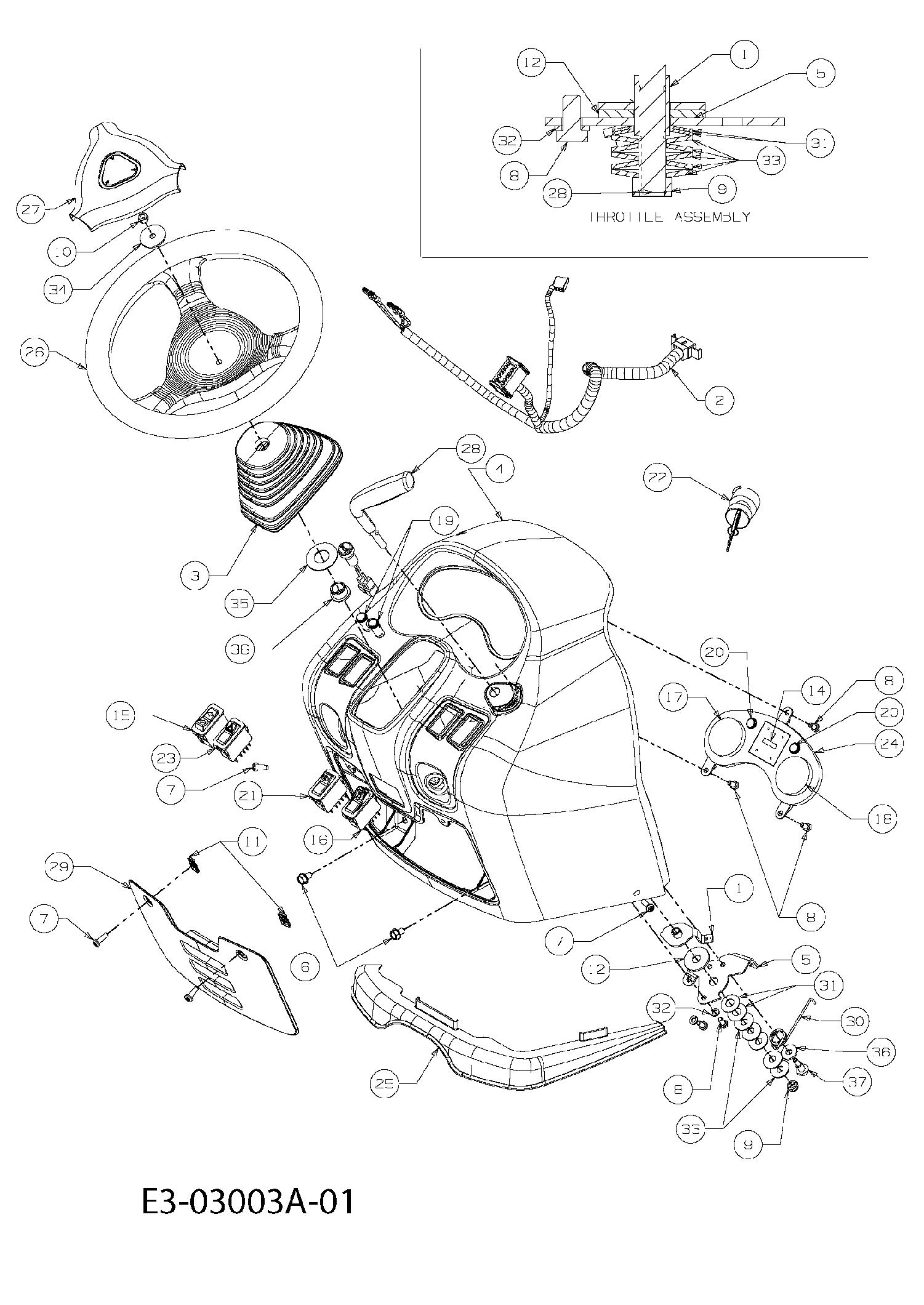

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009953

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-04305 TAB ASM-THROTTLE £74.98 Add
002 629-04062B WIRE HARNESS £188.64 Add
003 631-0076 NO LONGER AVAILABLE N/A POA
004 631-04090A PANEL-DASH £150.85 Add
005 703-05132A FASTENING PLATE:THROTTLE CABLE £32.98 Add
006 710-0604A SCREW £3.62 Add
007 710-0924 TRUSS SCREW (OBSOLETE) (OBSOLETE) (OBSOLETE) N/A
008 710-3013 SCREW HEX CAP £3.39 Add
009 712-0116 HEX NUT £3.96 Add
010 712-0237 HEX CENTRE NUT £11.18 Add
011 712-0292 SPEED NUT (DNR) £4.41 Add
012 723-3013 PAD-FRICTION £48.86 Add
013 725-04014 SWITCH-HORN £195.97 Add
014 725-04022 HOUR METER INDICATOR £111.55 Add
015 725-04031 725-04031 £82.62 Add
016 725-04076 NO LONGER AVAILABLE N/A POA
017 725-04241 GAUGE-FUEL £76.67 Add
018 725-04242 GAUGE-TACH £76.81 Add
019 725-04287 INDICATOR LIGHT, GREEN £72.30 Add
020 725-04288 LIGHT-INDICATOR YELLOW LED £54.66 Add
021 725-3274 SWITCH-HEADLAMP £99.35 Add
022 725-3277 SWITCH-IGNITIOM £94.85 Add
023 725-3279B SWITCH HAZARD LAMP £61.69 Add
024 731-05066 PANEL-CLUSTER GAUGE 5000SER £17.71 Add
025 731-05800 EXTENSION - DASH PANEL £79.50 Add
026 731-3209 WHEEL-STEERING £158.99 Add
027 731-3210 CVR:WHL:STEERING SOFT GRIP £49.30 Add
028 731-3298 LEVER-THROTTLE £53.49 Add
029 731-3344 INSERT DASHBOARD £36.06 Add
030 732-04288 Spring £25.06 Add
031 736-0255 WASHER, BELL, .515 X 1.14 X .04 THK £3.90 Add
032 736-0329 L. WASHER £3.26 Add
033 736-0331 BELL WASHER £3.95 Add
034 736-04062 washer £30.91 Add
035 736-0514 WASH:FLAT:.885 x 1.850 x.060 £3.07 Add
036 736-3072 WASH:FLAT:.38 x.93 x.110:HT £8.27 Add
037 738-04170 SCREW-SHLD: .374 DIA X .56 £11.34 Add
038 748-0176 FLANGE BEARING £8.62 Add
