MTD009815

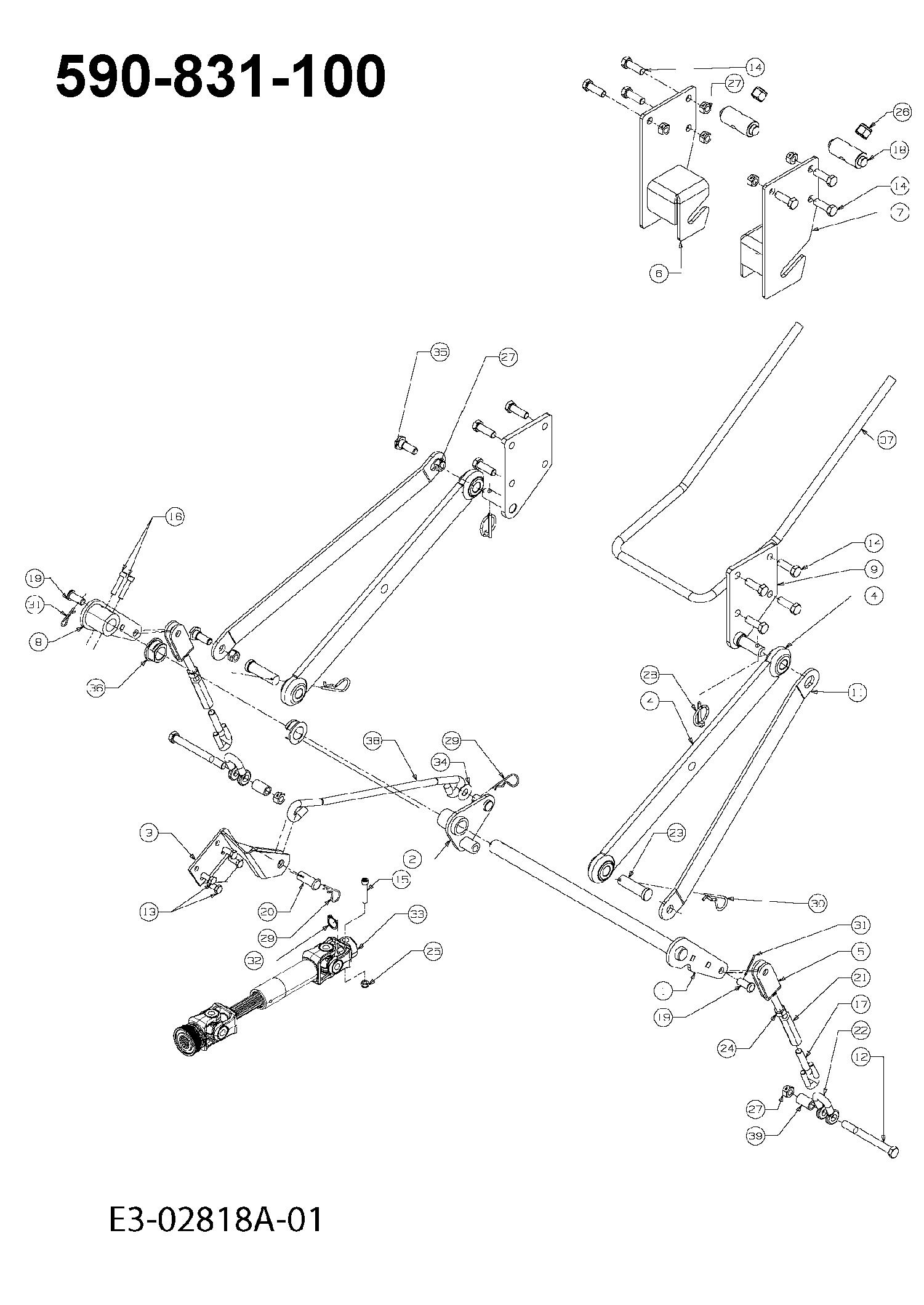

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009815

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-0667A SHF ASM:LIFT £121.95 Add
002 603-0838 CRK ASM:DECK LIFT £122.23 Add
003 603-0844 LEVER ASM:DECK LIFT £80.12 Add
004 603-0914 ARM ASM:DECK LIFT £139.09 Add
005 603-0926 CLEVIS, ADJ:1/2-13:4.76 £93.14 Add
006 603-0953 MT ASM:DECK:LH FRT HANGER £87.61 Add
007 603-0954 MT ASM:DECK:RH FRT HANGER £133.96 Add
008 603-0668A BRKT ASM:LIFT £97.38 Add
009 603-0912 MT ASM:DECK RH:6000 SERIES £89.95 Add
010 603-0913 MT ASM:DECK LH:6000 SERIES £89.95 Add
011 703-4017A PLT:ARM:FIXED £93.28 Add
012 710-0382 HHCS:1/2-13:5.00 GR5:STD £18.17 Add
013 710-3001 SCREW HHCS:3/8-16:.880:GR5:STD £3.00 Add
014 710-3181 HHCS:1/2-13:1.50:GR5:STD £4.50 Add
015 710-3251 SHCS:5/16-18:1.75:GR5 £9.47 Add
016 710-3250 SCR:SOC:CAP:5/16-18x1.5 £10.83 Add
017 711-1728A CLEVIS:CHAIN £35.25 Add
018 711-1739 PIN:MT:DECK HNGR ROD £28.82 Add
019 711-0310 CLEVIS PIN £13.90 Add
020 711-0654 CLEVIS PIN 5/8 DIA x 1.34 LG £21.82 Add
021 711-1620 SHF:HEX:CHECK CHAIN £45.81 Add
022 711-1622 CLV:1/2 DIA:CHECK CHAIN £24.60 Add
023 711-1643 PIN:CLV 3/4 x 2.50 £18.77 Add
024 712-0206 NUT £3.42 Add
025 712-0429 NUT HEX.INS L NUT £4.92 Add
026 712-3016 NUT:HEXLK:5/8-11:GR5:NYLON £11.98 Add
027 712-3022 NUT:HEXLK:1/2-13:GRB:CTRLK £10.83 Add
028 714-0143 PIN-CLICK:.245 DIA x 1.406 £9.98 Add
029 714-3020 PIN-COTTER £7.71 Add
030 714-0117 PIN:COT:INT: .148 x 3.00 £4.87 Add
031 714-0145 R CLIP £2.78 Add
032 716-0111 EXT:RET:RING:.875 SHFT £2.98 Add
033 717-3521A SHF:DR:DECK £379.41 Add
034 736-0100 WASH:FLAT:.531 x 1.25 x .036 £3.20 Add
035 738-0744A SCR:SHLDR:.625x.36:1/2-13 £20.33 Add
036 741-0170 Bearing flange £13.56 Add
037 747-04309 ROD:HNGR:FRONT DECK £108.09 Add
038 747-3455A ROD:CRANK:LIFT £71.79 Add
039 750-0655 HUB:SHFT:CRANK £16.91 Add
