MTD009816

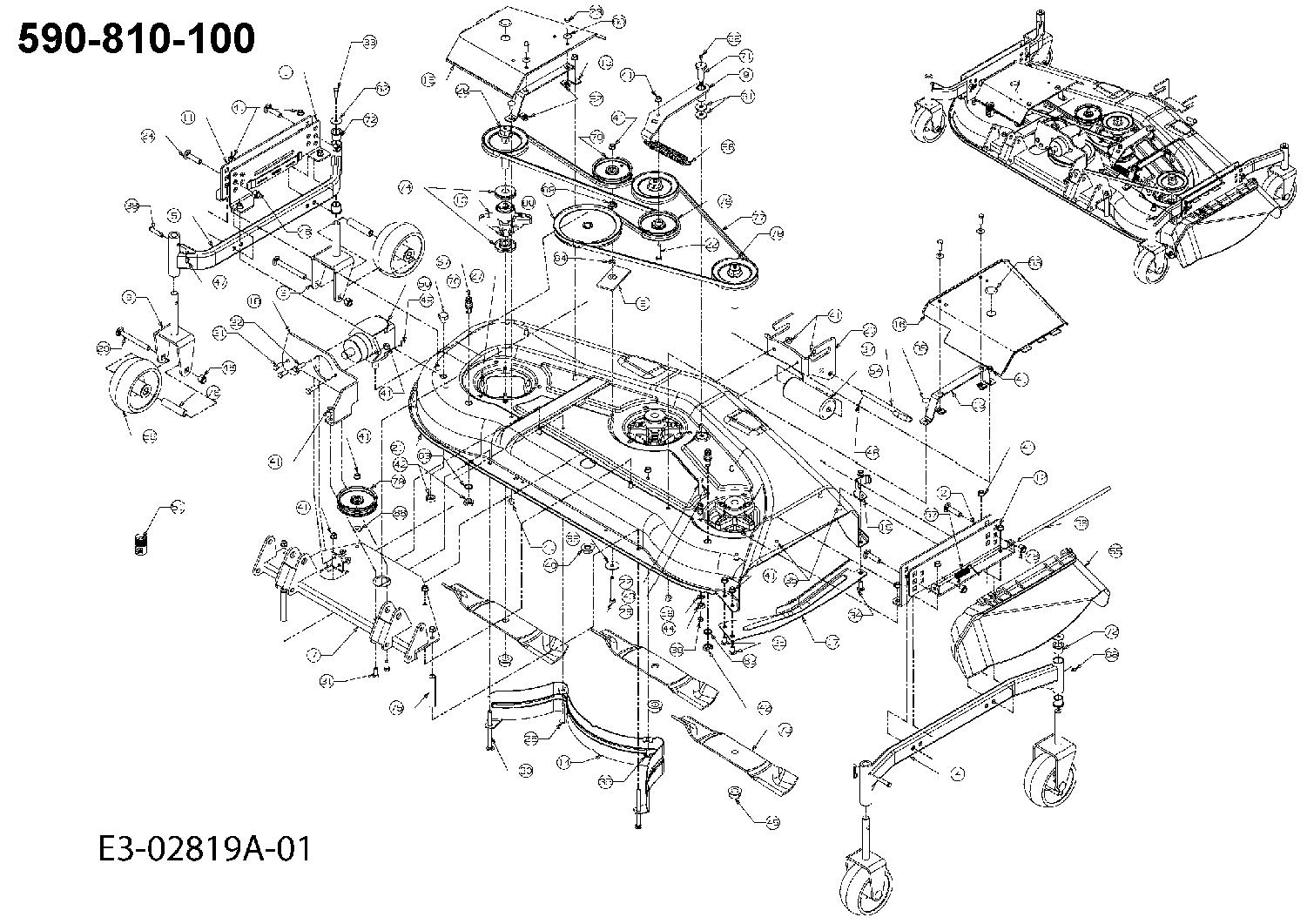

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04076	BRACKET INNER LH	£100.21	Add
002	603-04077	BRACKET INNER RH	£100.21	Add
003	603-04118B	YOKE-FRONT WHEEL CCUB YELLOW-9	£172.88	Add
004	603-04120	CASTER AXLE RH	£199.74	Add
005	603-04122	CASTOR AXLE LH	£199.74	Add
006	603-0783	NO LONGER AVAILABLE	N/A	POA
007	603-0851	CONNECTING PLATE	£306.00	Add
008	603-0646	PLATE ASSY-SPACER	£88.27	Add
009	603-0911	NO LONGER AVAILABLE	N/A	POA
010	618-3129C	SPINDLE, BLADE ASSY.	£216.30	Add
011	703-05176	BRACKET OUTER LH	£73.54	Add
012	703-05178	BRACKET OUTER RH	N/A	POA
013	703-2072	BRACKET	£16.05	Add
014	703-2093C637	BAFFLE REAR INNER 703-2093	£73.04	Add
015	703-2096B	CVR:BELT LH	£85.81	Add
016	703-2097B	GUARD-BELT	£94.82	Add
017	703-3511	GUARD-FLYWHEEL	N/A	POA
018	703-05191A	BRACKET GEARBOX C-YELLOW	£80.29	Add
019	703-3279	STOP:CHUT:DFL	£27.80	Add
020	703-3595	BRACKET FRONT ROLLER	£72.69	Add
021	703-3890A	NO LONGER AVAILABLE	N/A	POA
022	710-0347	HEX SCR	£3.72	Add
023	710-0376	SCREW HEX CAP 5/16	£9.02	Add
024	710-04191	BOLT-CARRIAGE 1/2-13X2.0	£16.20	Add
025	710-04262	SCREW-CARRIAGE	N/A	POA
026	710-0521	SCREW HHCS:3/8-16:3.00:GR8:STD	£5.19	Add
027	710-1260A	SCREW	£4.00	Add
028	710-1336A	BOLT, SPINDLE	£39.86	Add
029	710-1638	SCR:CRG:1/2-13:GR5:4.50	£13.13	Add
030	710-1644	SCR:CRG:3/8-16:GR5:5.00	£19.12	Add
031	710-3001	SCREW HHCS:3/8-16:.880:GR5:STD	£3.00	Add
032	710-3005	BOLT	£3.24	Add
033	710-3008	HEX BOLT	£3.03	Add
034	710-3168	CARRIAGE BOLT 3/8 INCH X 1 INCH	£7.01	Add
035	710-3178	BOLT SHORT NECK CARR	£11.46	Add
036	711-1762	PIN-HINGE .375DIA X 14,06	£12.95	Add
037	711-3314	PIN, ROLLER	£33.00	Add
038	711-0415	CLEVIS PIN	£5.28	Add
039	712-0181	HEX JAM L NUT	£3.69	Add
040	712-05134	BLADE NUT	£3.81	Add
041	712-0431	NUT	£3.20	Add
042	712-0641	NUT	£6.47	Add
043	712-3008	NUT:JAM:3/8-16:GR5	£3.26	Add
044	712-3019	NUT	£14.44	Add
045	712-3078	NUT HEX FLANGE 3/4-16	£11.32	Add
046	712-3083	NUT	£2.79	Add
047	714-0145	R CLIP	£2.78	Add
048	714-3004	NO LONGER AVAILABLE	N/A	POA
049	714-0868	KEY-WOODRUFF	£16.85	Add
050	717-04035	GEAR BOX ASM-DECK	£278.92	Add
051	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
052	726-0211	U NUT	£3.96	Add
053	726-3045	PLUG,BUTTON	£6.94	Add
054	731-3005	ROLLER	£42.43	Add
055	731-3131A	DEFLECTOR	£102.98	Add
056	732-0850	SPR:EXTN:1.0 OD X 6.140 LG	£38.31	Add
057	732-3070A	SPRING-TORSION	£22.18	Add
058	734-3195A	CASTER WHEEL BLACK	£96.40	Add
059	736-0171	WASHER	£2.93	Add
060	736-0242	BELL WASHER	£3.72	Add
061	736-0322	FI-WASH	£8.68	Add
062	736-0362	WASH-FLAT:.330 x 1.25 x.06:HD	£4.66	Add
063	736-0760	WASHER	£4.01	Add
064	736-3024	WASH:FL:.469 X .750 X .06	£2.90	Add
065	736-3039	WASH:FLAT:.406 x 1.5 x .105	£2.00	Add
066	736-3072	WASH:FLAT:.38 x.93 x.110:HT	£8.27	Add
067	737-04003D	NOZ:DECK:WATER	£19.14	Add
068	737-3000	FITTING LUBE 3/16 DRIVE TYPE	£3.87	Add
069	738-0372B	COLLAR	£5.64	Add
070	738-04146	PLUG:BOLT:M16 X 1.5	£8.94	Add
071	638-04012A	BOLT	£17.98	Add
072	741-0339	BEARING, HEX FLANGE	£14.70	Add
073	759-04012	BLADE 18.5LG QTY-3 H/L	£58.49	Add
074	748-3065A	SPCR:SPDL:DECK	£14.96	Add
075	750-3213	SPACER	£19.04	Add
076	750-3222	AXLE-CASTER WHEEL	£36.05	Add
077	754-3102	BELT-SPINDLE AX120" 6000 SER	£96.20	Add
078	756-1209	PULLEY-DECK DRIVE	£48.43	Add
079	756-3005	PULLEY	£84.18	Add
080	756-3097	NO LONGER AVAILABLE	N/A	POA
