MTD009826

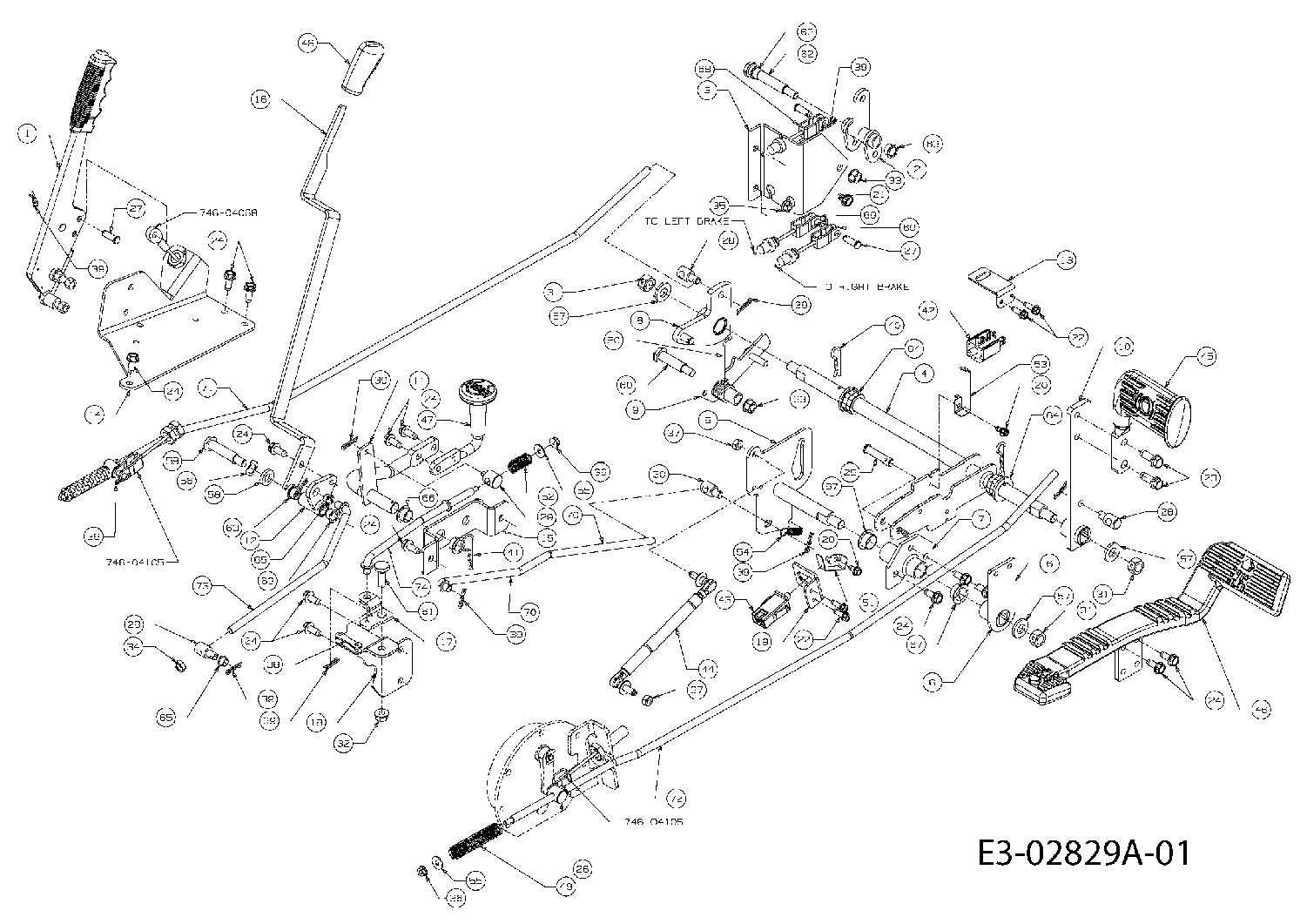

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04089	LEVER ASM:BRAKE	£178.56	Add
002	603-04090		N/A	POA
003	603-04216	BRKT ASM: BRAKE PIVOT	N/A	POA
004	603-0671	SHF:BRAKE	£162.18	Add
005	603-0672A	DRIVE SHAFT	N/A	POA
006	603-0673A	LINK ASM-PEDAL MTG	N/A	POA
007	603-0674A	KIT, CLOSURE PLATE ASSEMBLY	N/A	POA
008	603-0678	LINK ASM-LH BRAKE	N/A	POA
009	603-0679A	LINK ASM-PARK BRAKE	£68.12	Add
010	603-0680	LINK ASM-RH BRAKE	N/A	POA
011	603-0749	SHAFT ASM-DIFF LOC	N/A	POA
012	603-0770	LINK ASM-PTO SELECT	£72.03	Add
013	703-05183	BRKT:SW:3-POLE	N/A	POA
014	703-05212	BRKT:BRK:PARK	N/A	POA
015	703-3541	BRKT-DIFF SHFT PIV	N/A	POA
016	703-3571A	HANDLE PTO	£80.78	Add
017	703-3575	LINK-DIFF LOCK PIV	N/A	POA
018	703-3582	BRKT-DIF ACTUATOR	£34.53	Add
019	703-4099	BRACKET-REV SWITCH	£46.87	Add
020	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
021	710-0607	SELF TAP SCREW	£4.71	Add
022	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add
023	710-0654A	SCR:TTSEMS:3/8-16:1.000:HXLWSH	£5.10	Add
024	710-1260A	SCREW	£4.00	Add
025	711-0415	CLEVIS PIN	£5.28	Add
026	711-04224	FERRULE-BRAKE ROD	£90.74	Add
027	711-0653	CLEVIS PIN	£19.04	Add
028	711-0723A	FERRULE	£12.45	Add
029	711-1362	FERRULE BRAKE	£25.76	Add
030	711-3397	FERRULE ADJUSTMENT	£12.78	Add
031	712-0239	LOCK NUT	£12.14	Add
032	712-0379	USE 712-0375	£15.39	Add
033	712-0431	NUT	£3.20	Add
034	712-0711	NUT	£3.07	Add
035	712-3004A	HEX FLANGE NUT	£2.97	Add
036	712-3027	LOCK NUT	£2.79	Add
037	712-3077	Nut	£25.03	Add
038	713-3000	CHAIN LINK	£7.98	Add
039	714-0104	PIN INTERNAL COTTER	£2.78	Add
040	714-0147	COTTER PIN	£3.51	Add
041	714-3020	PIN-COTTER	£7.71	Add
042	725-04064	SWITCH-3 POLE	£57.21	Add
043	725-3164A	SWITCH INTERLOCK (BRAKE)	£36.48	Add
044	727-04033	CYLINDER-DAMPER FWD SHIFT 7000	£126.32	Add
045	731-3296	BRAKE PEDAL	£95.61	Add
046	731-3299A	PEDAL-FWD/REV FOOT	£143.43	Add
047	731-3320	PEDAL-DIFF LOCK FOOT 7000 SER	£71.11	Add
048	731-3321	SA HANDLE	£16.05	Add
049	732-0324	NO LONGER AVAILABLE	N/A	POA
050	732-0756A	SPR:TORSN:	£26.52	Add
051	732-0859A	Spring	£21.79	Add
052	732-3065	COMPRESSION SPRING	£8.01	Add
053	732-3117	ACTUATOR NEUTRAL SWITCH	£11.15	Add
054	732-3118	SPR:EXTN:.375 OD x 1.44 LG	£13.84	Add
055	736-0173	WASH:FL:.28ID:.74OD:.063	£3.31	Add
056	736-0232	WAVE WASHER	£3.69	Add
057	736-3019	WASHER FLAT	£5.39	Add
058	736-3069	NO LONGER AVAILABLE	N/A	POA
059	738-0509	SHLD:SCR:.500 X 1.825	£20.18	Add
060	738-0533	SHLD SCREW	£6.33	Add
061	738-0689	SCR:SHLD: 1/2 DIA x.180:3/8-24	£7.13	Add
062	738-3056	SHOULDER BOLT	£12.94	Add
063	741-0491	BEARING-NYLINER	£12.94	Add
064	741-0598	FLANGE BEARING	£11.63	Add
065	741-3073	BEARING, HEX FLANGE	£7.51	Add
066	741-3074	BRG:FLG:.626x.938x.344	£8.34	Add
067	741-3084	BUSH	£11.51	Add
068	746-04068	BOWDEN CABLE HAND BRAKE	£97.66	Add
069	746-04105	NO LONGER AVAILABLE	N/A	POA
070	747-3396	ROD-HYDRO CONTROL	£52.42	Add
071	747-3399A	ROD-LH BRAKE 6/7000 SER	N/A	POA
072	747-3400	RIGHT BRAKE ROD 42 6/7000SER	N/A	POA
073	747-3414	ROD-PTO CONTROL	£67.68	Add
074	747-3428	ROD-DIFF LOCK CONT	N/A	POA
