MTD009832

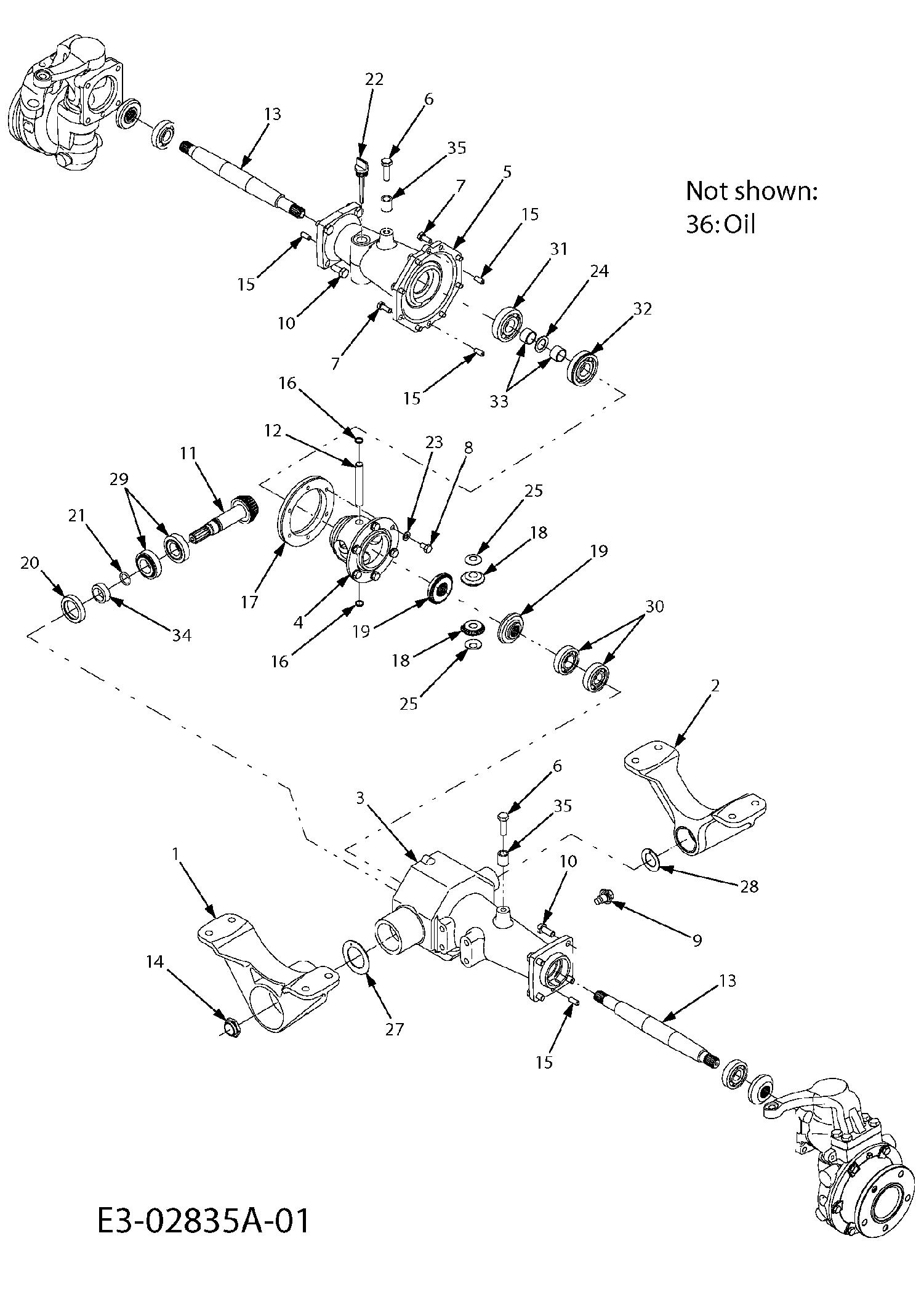

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009832

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
737-0146 FITTING-GREASE £4.11 Add
741-04037 BEARING SLEEVE N/A POA
736-0563 WASH:SHIM:.793x1.368x.010:HD £15.36 Add
736-0564 WASHER-THRUST £14.62 Add
736-0565 washer £4.76 Add
736-0566 WASHER FLAT £9.58 Add
736-0287 FLAT WASHER .78" X 1.25" X .062" £7.92 Add
721-04058 SEAL N/A POA
737-0146 FITTING-GREASE £4.11 Add
741-04036 BEARING STEEVE N/A POA
001 603-04059 REAR AXLE SUPPORT £129.78 Add
002 603-04058 FRONT AXLE SUPPORT £116.24 Add
003 619-04009A AXLE HOUSING RH £271.57 Add
004 619-04120 HOUSING-DIFFERENTIAL 5/6000SER £119.90 Add
005 619-04019A AXLE HOUSING LH £205.08 Add
006 710-1313 HHCS:M10-1.5:35mm:GR8.8:STD £20.99 Add
007 710-1682 SCR:M8-1:25.00 LG:DIN 933 £2.98 Add
007 710-3175 HHCS:M8-1.25:14MM:GR8.8:STD £4.48 Add
009 710-1633 DRAIN SCREW £21.44 Add
010 710-3208 SCREW HHCS:M10-1.5:25mm:GR8.8 £3.59 Add
011 711-04140 INPUT SHAFT £145.46 Add
012 711-04384 SHAFT-PINION CROSS 5/6000 SER £52.88 Add
013 711-04107 DIFFERENTIAL SHAFT £148.31 Add
014 712-04043 NUT-PINION SHAFT M24X1.5 5000 £29.22 Add
015 715-04014 PIN-DOWEL 8MMX20MM £10.48 Add
016 716-04045 RING-SNAP 14MM £15.87 Add
017 717-04064 GEAR-FINAL DRIVE 34T £262.23 Add
018 717-04046 GEAR-PINION MITER 10-T 5000SER £94.41 Add
019 717-04047 GEAR-DIFF MITER 16-T 5000SER £98.94 Add
020 721-04056 SEAL-OIL INPUT 5000SER £25.15 Add
021 721-04067 RING-"O" INPUT 5000 SER £6.92 Add
022 731-04336 GAUGE-OIL LEVEL 5000 SER N/A POA
023 736-0264 WASH:FLAT:.330 x.630x.0635 £3.59 Add
024 736-0287 FLAT WASHER .78" X 1.25" X .062" £7.92 Add
025 736-04098 WASHER £30.07 Add
026 736-0562 washer £6.94 Add
027 741-04038 Thrust washer £28.06 Add
028 741-04039 Thrust washer N/A POA
029 741-04042 ROLLER BEARING £34.05 Add
030 741-04044 BEARING-BALL £23.93 Add
031 741-04045 BEARING-BALL £32.99 Add
032 741-04046 BEARING-BALL £38.87 Add
033 750-04133 SLEEVE £12.33 Add
034 750-04164 SLEEVE £49.33 Add
035 750-0750 SLEEVE £14.62 Add
036 737-3065 TRANSMISSION OIL 85/140 Q £35.14 Add
