FG004_0500

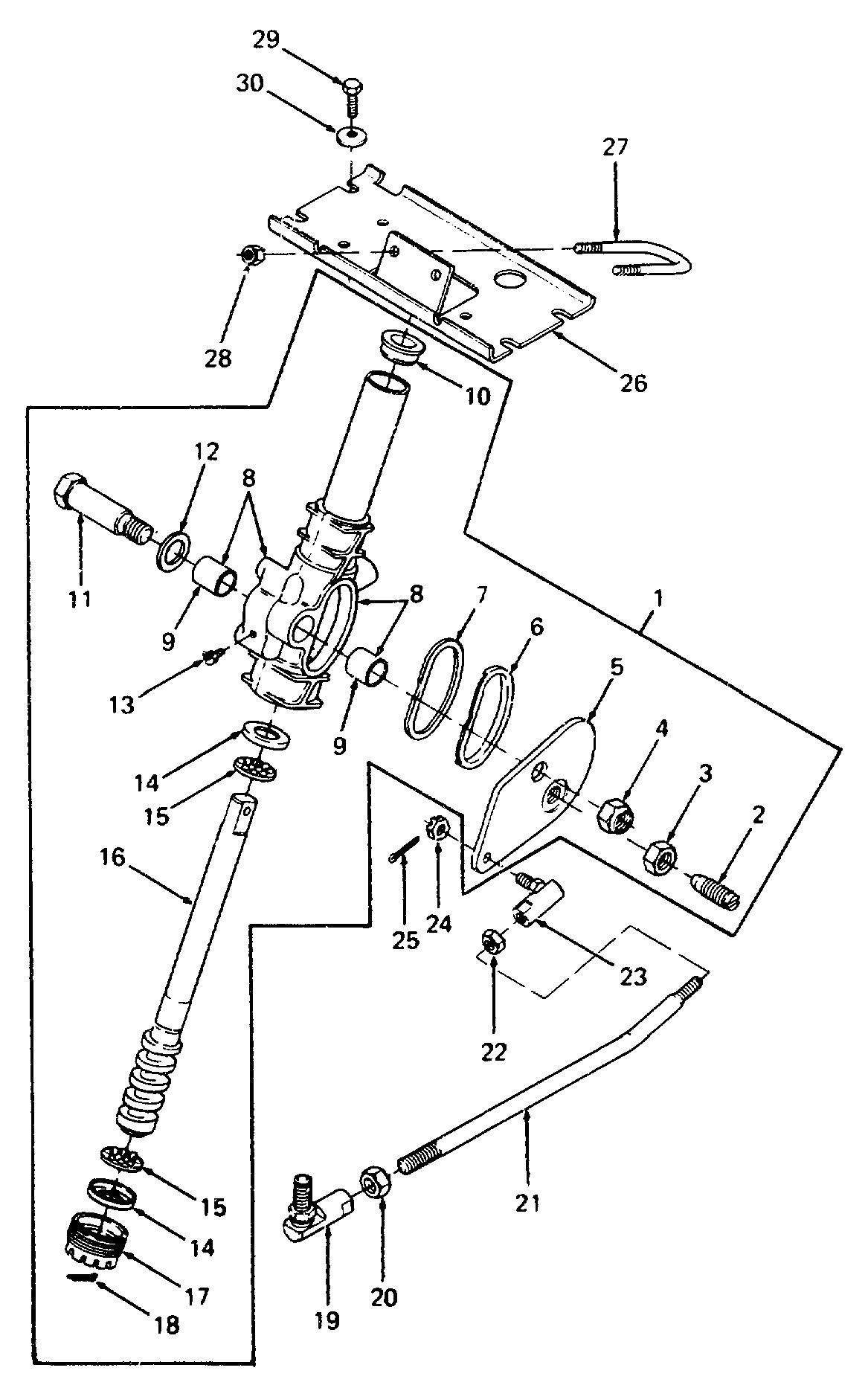

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	736-0105	BELL WASHER	£3.33	Add
001	703-1794	STEERING GEAR ASSY [INCLUDES REF NO. 2, 3, 4, 5, 6, 7, 8, 10, 11, 12, 13, 14 (QTY 2), 15 (QTY 2), 16	£769.83	Add
001	710-3001	SCREW HHCS:3/8-16:.880:GR5:STD	£3.00	Add
002	711-3149A	FOLLOWER, CAM 711-3149	£44.44	Add
003	712-3062	NUT, HEX JAM, 9/16-18	£3.59	Add
004	712-3063	NUT-HEX CROWN LOCK	£7.82	Add
005	703-1082	ARM, STEERING	£159.23	Add
006	703-1031	RETAINER, SEAL	£4.64	Add
007	723-3039	NO LONGER AVAILABLE	N/A	POA
008	703-1968	HOUSING/TUBE ASSY (INCLUDES REF NO. 9) (OBSOLETE)	N/A
009	748-3008	BUSHING	£4.76	Add
010	741-3023	NO LONGER AVAILABLE	N/A	POA
011	711-3208	SHAFT, PIVOT	£27.04	Add
012	736-3029	WASHER, FLAT, .781 X 1.25 X .027 THK	£2.79	Add
013	737-3001	GREASE NIPPLE	£15.73	Add
014	703-1029	CUP, BEARING	£5.52	Add
015	741-3021	RETAINER ASSY, BALL	£10.73	Add
016	703-1793	SHAFT/CAM ASSY	£470.89	Add
017	719-3053	PLUG, ADJUSTING	£35.50	Add
018	714-0474	PIN (RED)	£3.20	Add
019	723-3015	JOINT-BALL	£89.94	Add
020	712-3029	NUT	£3.20	Add
021	747-3140	LINK, DRAG	£23.72	Add
022	712-3001	NUT:JAM:3/8-24:GR2	£3.26	Add
023	723-3000	BALL JOINT	£44.93	Add
024	712-3002	NUT, HEX CASTLE, 3/8-24 GR5	£2.73	Add
025	714-0507	COTTER PIN 3/32 DIA	£3.13	Add
026	703-1817	PLATE, STEERING SUPPORT	£101.13	Add
027	747-3016	TIE-STRAP	£6.35	Add
028	712-0237	HEX CENTRE NUT	£11.18	Add
029	710-3004	SCREW, HEX HD CUTTING, 5/16-18 X .75 LG GR5	£2.93	Add
030	736-0242	BELL WASHER	£3.72	Add
