Parts list

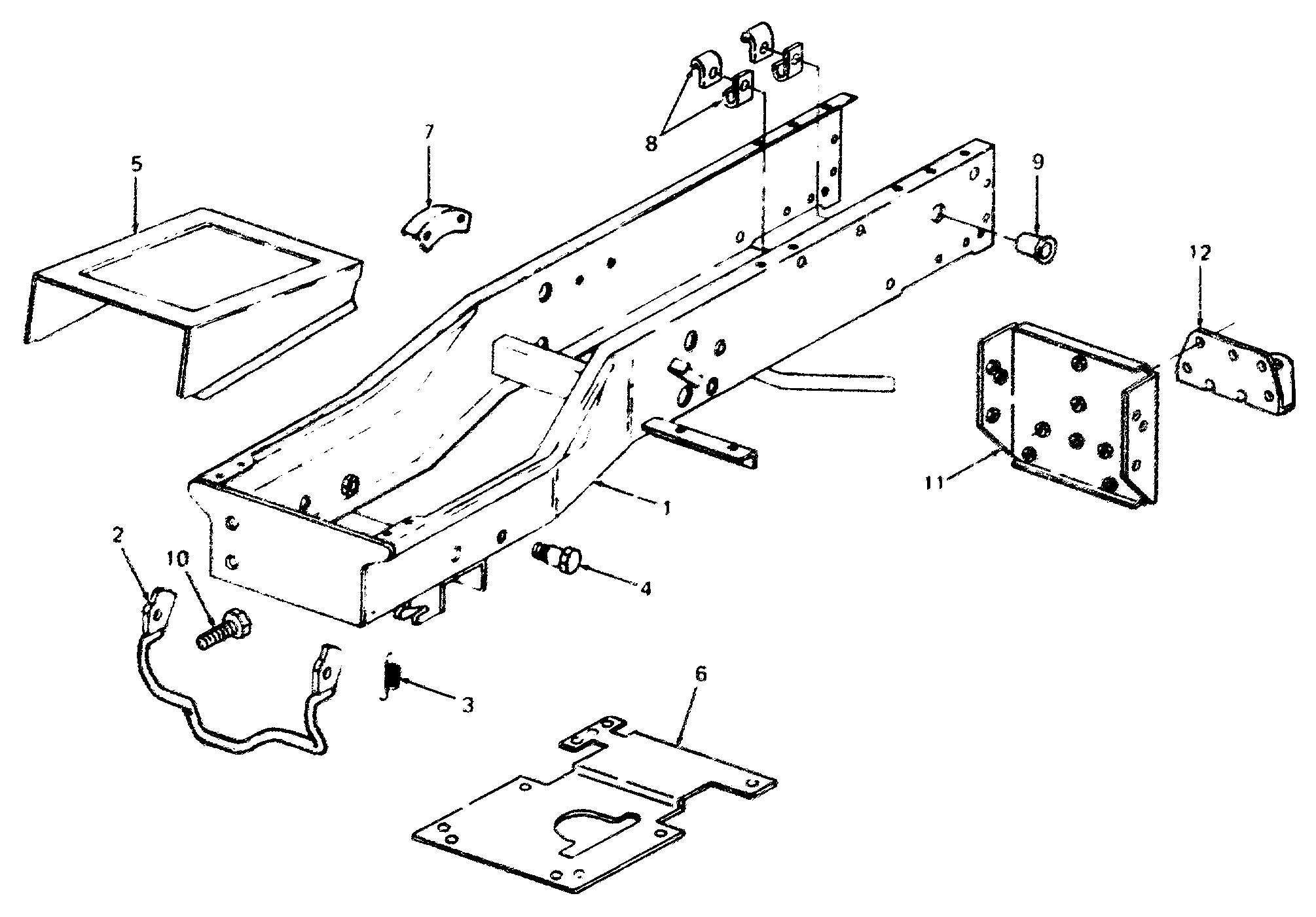

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
711-3005
|
BUSHING, FRONT AXLE PIVOT PIN
|
£8.17
|
Add
|
|
|
711-3009
|
HUB, LIFT HANDLE STOP
|
£24.18
|
Add
|
|
|
779-3334
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
|
711-3010
|
PIN, CLEVIS, 3/8 DIA X 1.0 LG
|
£3.48
|
Add
|
|
|
714-0507
|
COTTER PIN 3/32 DIA
|
£3.13
|
Add
|
|
|
736-3003
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
|
736-0272
|
WASHER:FL:.510 X 1.000 X .060
|
£3.16
|
Add
|
|
|
779-3530A
|
GRAPHIC, CAUTION
|
N/A
|
POA
|
|
|
710-3007
|
SCR:TT:#12-24:0.375 HXINDWSH
|
£3.59
|
Add
|
|
|
726-3001
|
NUT, SPEED, 5/16-18 TRD
|
£2.58
|
Add
|
|
|
710-3039
|
BOLT-HEX 5/16-18 X .50 LG
|
£2.56
|
Add
|
|
|
710-0776A
|
SCREW-HEX WASH HD
|
£3.20
|
Add
|
|
|
710-3039
|
BOLT-HEX 5/16-18 X .50 LG
|
£2.56
|
Add
|
|
|
712-3004A
|
HEX FLANGE NUT
|
£2.97
|
Add
|
|
|
779-3533A
|
GRAPHIC, LIFT HEIGHT INDICATOR 779-3533
|
£5.84
|
Add
|
|
|
728-0141
|
RIVET, .156 DIA X .250 LG
|
£2.93
|
Add
|
|
|
712-3029
|
NUT
|
£3.20
|
Add
|
|
|
710-3000
|
SCREW, HEX CAP 3/8-16X3/4 GR5
|
£3.59
|
Add
|
|
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
|
710-3000
|
SCREW, HEX CAP 3/8-16X3/4 GR5
|
£3.59
|
Add
|
|
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
001
|
703-1869
|
FRAME ASSY
|
N/A
|
POA
|
|
002
|
703-1726
|
BRACKET
|
£32.13
|
Add
|
|
003
|
732-3002
|
SPR:EXT: .51 OD X 2.12 LG
|
£10.32
|
Add
|
|
004
|
738-3001
|
BOLT, SHOULDER
|
£12.83
|
Add
|
|
005
|
759-3530
|
COVER, FRAME W/GRAPHIC
|
N/A
|
POA
|
|
006
|
703-0167
|
SCREEN, LOWER FRAME
|
£47.43
|
Add
|
|
007
|
703-0828
|
BRACKET, HEIGHT INDICATOR
|
£9.71
|
Add
|
|
008
|
726-3008
|
BRACKET
|
£2.93
|
Add
|
|
009
|
723-3042
|
bush
|
£2.79
|
Add
|
|
010
|
710-3182
|
SHLT.-SCHRAUBE 1/2-20X1"
|
£3.69
|
Add
|
|
011
|
703-1943
|
PLATE ASSY, HITCH
|
£142.15
|
Add
|
|
012
|
703-0904
|
HITCH ASSY
|
£28.26
|
Add
|
