FG004_5200

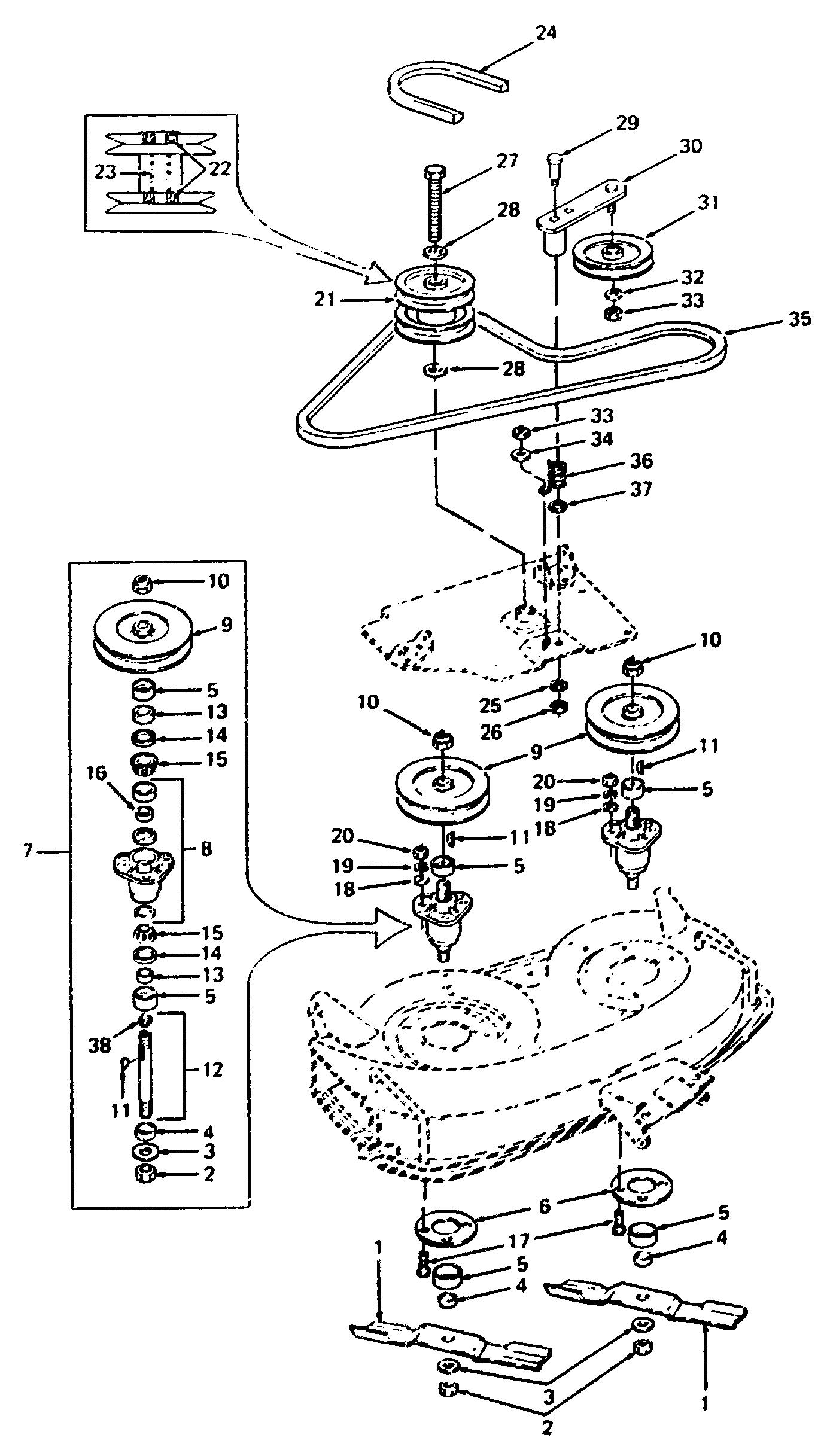

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG004_5200

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 759-3831 blade £23.94 Add
001 759-3831 blade £23.94 Add
002 712-3018 NUT £15.39 Add
003 736-3014 WASHER £10.72 Add
004 748-3020 SPACER £23.00 Add
005 703-1387 CUP,SPINDLE £27.37 Add
006 703-1650 PLATE £36.95 Add
007 759-3294 SPINDLE SERVICE KIT (INCLUDES MOUNTING HARDWARE) £314.87 Add
008 759-3226 HOUSSING w/CUPS,SPINDLE £121.99 Add
009 756-3008 PULLEY £63.08 Add
010 712-3026 NO LONGER AVAILABLE N/A POA
011 714-0135 KEY-WOODRUFF NR.91,1/4X3/4" £12.14 Add
012 759-3369 KIT-INPUT SHAFT £183.66 Add
013 711-3171 SPACER £17.52 Add
014 721-3018A SEAL-SINGLE LIP OIL £13.74 Add
015 741-04298 TAPER LK BUSHING 741-3028 £27.72 Add
016 741-3030 SPACER £15.75 Add
017 710-3005 BOLT £3.24 Add
018 736-0258 WASHER:FLAT:.385 X 1.0 X.135 £3.47 Add
019 736-0169 L. WASHER £2.89 Add
020 712-3017 NUT:JAM:3/8-16:GR5 £2.97 Add
021 703-1988 DECK DRIVE DOUBLE PULLEY ASSY (INCLUDES REF. NO. 22 [QTY 2] & 23) £268.63 Add
022 741-0155 BRG:BALL:.62x1.38x.43:1623:DS £28.42 Add
023 750-3043 NO LONGER AVAILABLE N/A POA
024 754-3042B V-BELT £110.69 Add
025 736-0171 WASHER £2.93 Add
026 712-3019 NUT £14.44 Add
027 710-3151 BOLT-HEX £29.25 Add
028 736-0290 WASHER FLAT CODE H140 AND BEFORE £11.52 Add
029 638-04012A BOLT £17.98 Add
030 703-0118 BRACKET ASSY-IDLER N/A POA
031 756-0365 NO LONGER AVAILABLE N/A POA
032 736-0185 FLAT WASHER (RED) £3.59 Add
033 712-3000 NUT:HEXLK:3/8-16 GR.B CTRLK £3.20 Add
034 736-0267 WASH:FLAT:.385 x.87 x.06:HT £3.80 Add
035 754-3026A V-BELT, 1/2 X 60 LG 754-3026 £82.62 Add
036 732-3067 SPRING £31.86 Add
037 736-3015 WASH:FLAT: .469 x .875 x .105 £18.36 Add
038 737-3000 FITTING LUBE 3/16 DRIVE TYPE £3.87 Add
