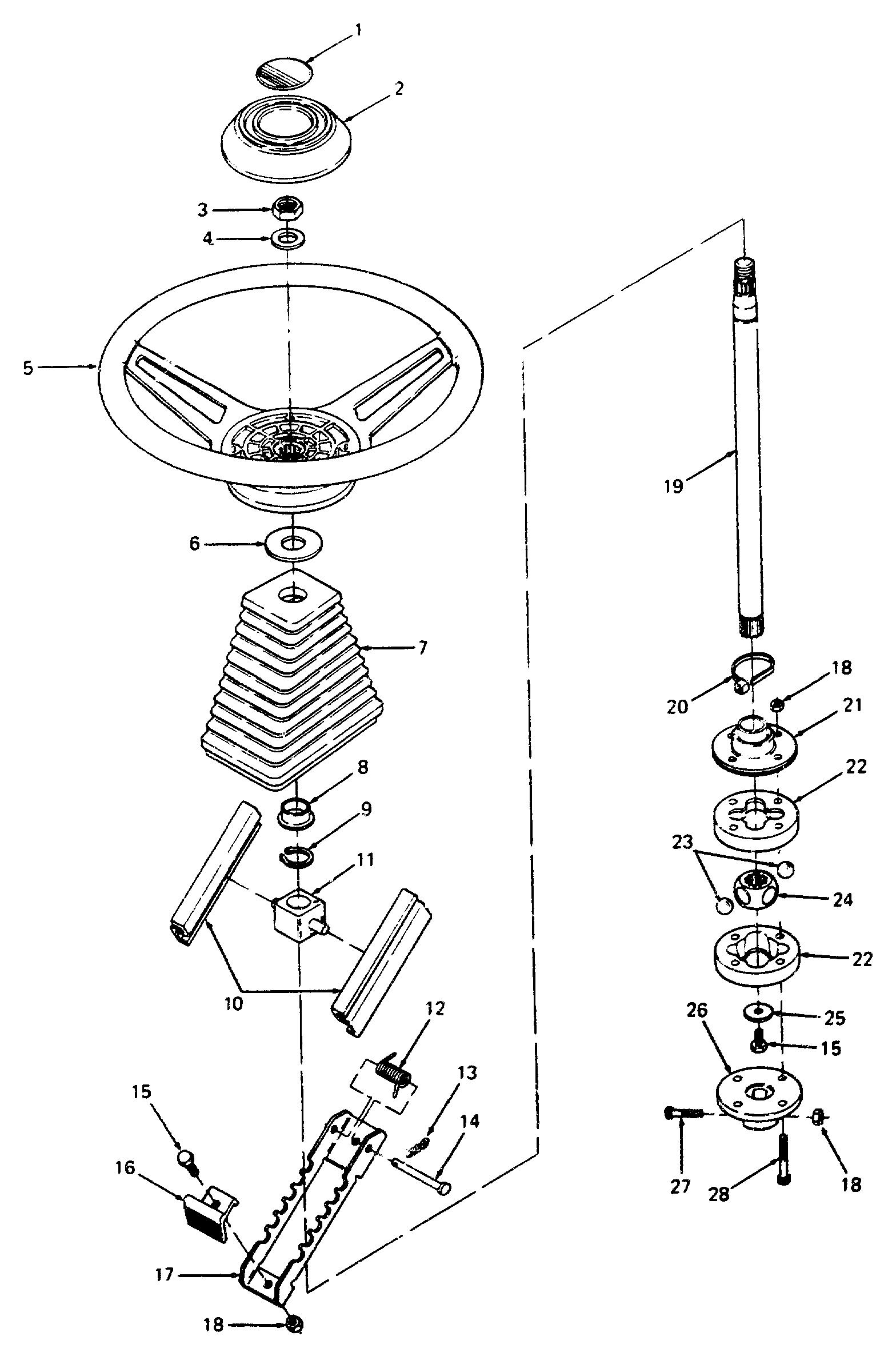

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
737-3034
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
001
|
779-3599
|
LABEL, STEERING CAP 779-3526
|
£15.38
|
Add
|
|
002
|
731-3104
|
CAP, STEERING WHEEL
|
£19.81
|
Add
|
|
003
|
712-3056
|
NUT:JAM:5/8-18:GR5
|
£3.80
|
Add
|
|
004
|
736-0187
|
FLAT WASHER
|
£3.19
|
Add
|
|
005
|
731-3103
|
WHEEL, STEERING
|
£158.07
|
Add
|
|
006
|
736-3094
|
WASHER, FLAT, .758 X 2.0 X .030 THK
|
£3.69
|
Add
|
|
007
|
735-3028
|
BOOT, STEERING SHAFT
|
£44.33
|
Add
|
|
008
|
741-0338
|
FLANGE BEARING (OBSOLETE)
|
£7.81
|
Add
|
|
009
|
716-0101
|
RING-SNAP
|
£16.41
|
Add
|
|
010
|
731-3093
|
GUIDE
|
£19.81
|
Add
|
|
011
|
731-3094
|
BUSHING, SHAFT GUIDE
|
£22.40
|
Add
|
|
012
|
732-3064
|
SPRING-TILT, TORSION
|
£4.64
|
Add
|
|
013
|
714-0104
|
PIN INTERNAL COTTER
|
£2.78
|
Add
|
|
014
|
711-3295
|
PIN,CLEVIS,.25X2.38LG
|
£4.64
|
Add
|
|
015
|
710-3013
|
SCREW HEX CAP
|
£3.39
|
Add
|
|
016
|
731-3107
|
BUTTON, TILT CONTROL
|
£12.17
|
Add
|
|
017
|
703-1805
|
PLATE, TILT CONTROL
|
£21.49
|
Add
|
|
018
|
712-0107
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
019
|
738-3080
|
SHAFT, UPPER STEERING, 16.75 LG
|
N/A
|
POA
|
|
020
|
725-0157
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
021
|
735-3029
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
022
|
748-3030A
|
COUPLING, DRIVE 748-3030
|
£29.89
|
Add
|
|
023
|
723-3022
|
BALL, STEEL, 5/8 DIA CHROME
|
£17.52
|
Add
|
|
024
|
748-3029
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
025
|
736-3092
|
WASH:FLAT:.265 x 1.0 x.030:HD
|
£3.49
|
Add
|
|
026
|
748-3033
|
ADAPTER, STEERING
|
£55.36
|
Add
|
|
027
|
710-3213
|
SCREW, SOCKET HD CAP, 1/4-20 X 1.12 LG
|
£2.79
|
Add
|
|
028
|
710-3211
|
Screw
|
£3.69
|
Add
|
