FG004_2800

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

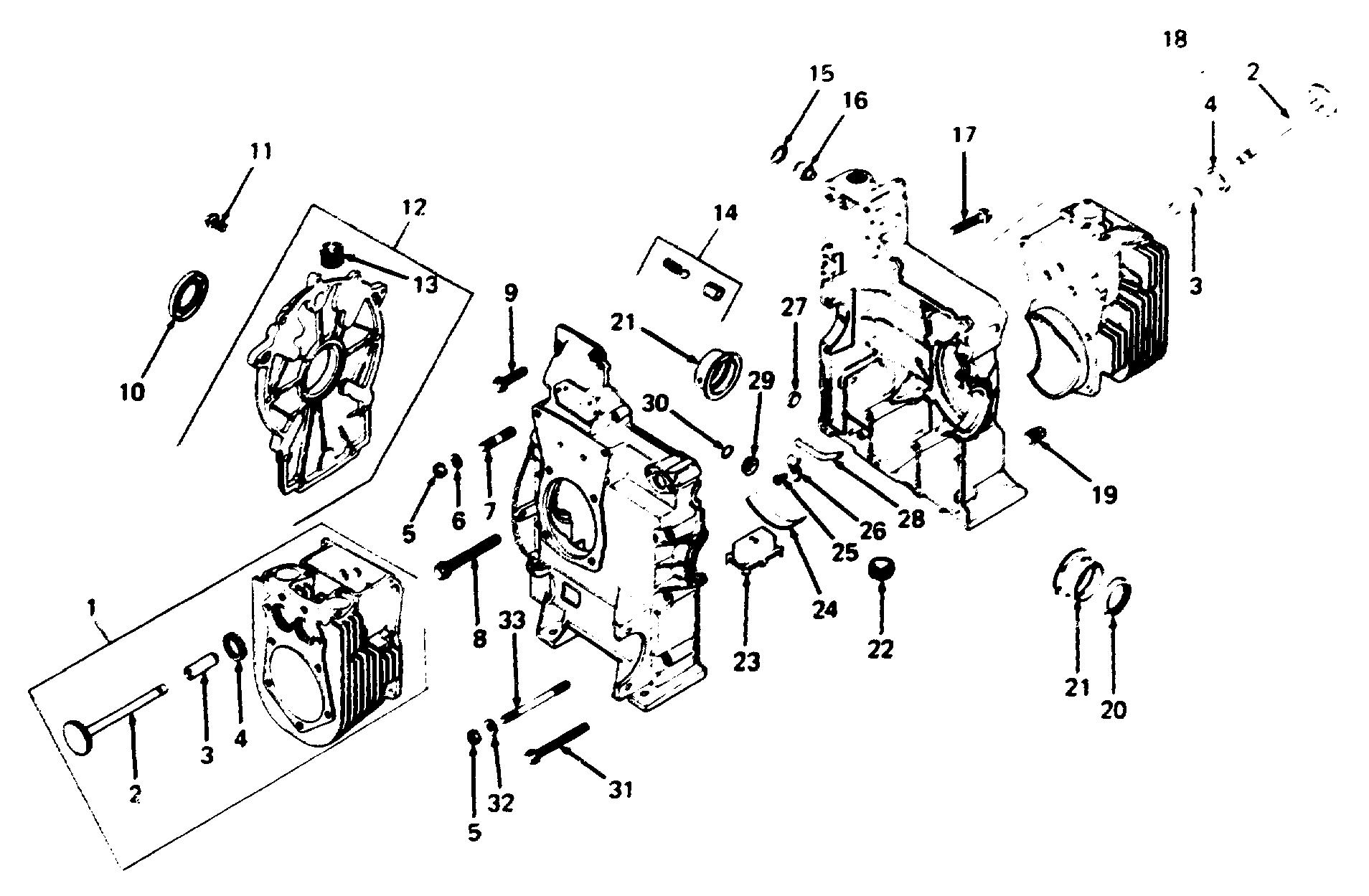

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	KH-24647	ENGINE, COMPLETE	N/A	POA
	KH-5252271	SHORT BLOCK	N/A	POA
	KH-5275594	SATZ DICHTUNGEN	£161.32	Add
001	KH-8275517	SATZ ZYLINDERGEHAUSE	£867.43	Add
002	KH-5201605	VENTIL	£161.19	Add
003	KH-5231606	VENTILFHRUNG	£25.73	Add
004	KH-5203101	RING	£44.79	Add
005	KH-X-82-2	NUT	£3.03	Add
006	KH-5246812	GASKET	£7.72	Add
007	KH-5207212	BOLT SPINDLE	£14.12	Add
008	KH-2508613	SKT-SCHRAUBE	£11.70	Add
009	KH-2508610	SKT-SCHRAUBE	£5.70	Add
010	KH-X-583-5	SEAL, REAR OIL	N/A	POA
011	KH-X-802-9	SCREW, HEX WASH HD, 5/16-18 X 1.0 LG	N/A	POA
012	KH-5275556	COVER	£334.87	Add
013	KH-X-75-23	PLUG,ALLEN HD.1/8" PIPE	£5.47	Add
014	KH-5275550	OIL STOP	£28.98	Add
015	KH-X-269-43	RING	£2.68	Add
016	KH-5207805	SHAFT-GOVERNOR GEAR	£12.36	Add
017	KH-2508612	SKT-SCHRAUBE	£13.25	Add
018	KH-8275516	SATZ ZYLINDERGEHAUSE	£664.92	Add
019	KH-X-75-32	PLUG, HEX CTSK, 3/8 NPTF	N/A	POA
020	KH-5203210	SEAL, FRONT OIL	N/A	POA
021	KH-5203010	BEARING	£208.71	Add
021	KH-5203011	BEARING	£274.90	Add
021	KH-5203012	BEARING	£274.90	Add
022	KH-5213902	PLUG, BOTTOM DRAIN, 3/8	N/A	POA
023	KH-5209503	HOUSING, OIL PICKUP	N/A	POA
024	KH-5223702	CLAMP, SPRING	N/A	POA
025	KH-67-64	SCREW, HEX WASH HD, #10-32 X .43 LG	N/A	POA
026	KH-5223705	CLAMP, TUBE	N/A	POA
027	KH-X-702-15	PLUG, CUP	N/A	POA
028	KH-5212310	TUBE, OIL PICKUP	N/A	POA
029	KH-5213908	CUP	£24.14	Add
030	KH-5214102	O-RING	£12.98	Add
031	KH-2508611	SKT-SCHRAUBE	£15.25	Add
032	KH-4146801	SCHEIBE	£10.52	Add
033	KH-25-086-11	SKT-SCHRAUBE	£15.25	Add
