FG004_3800

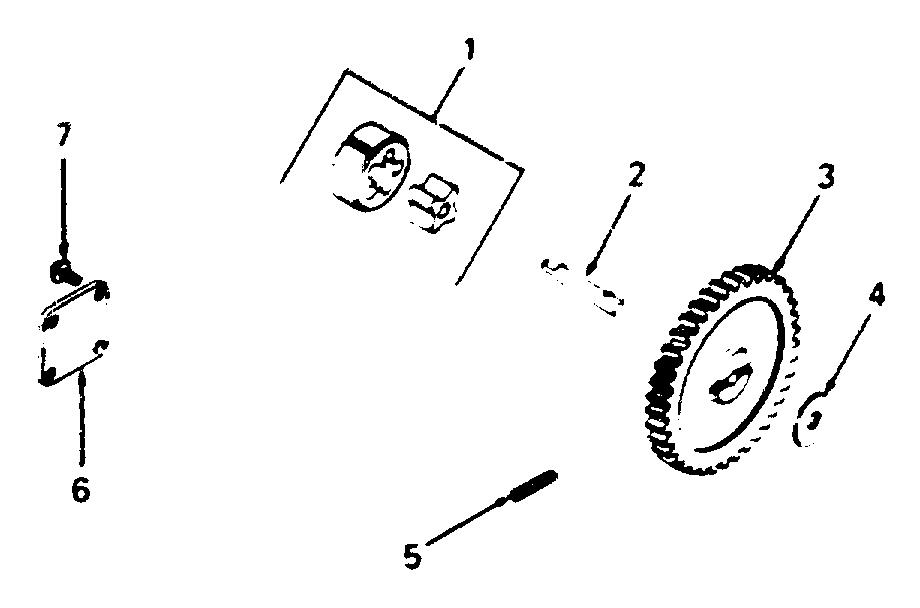

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG004_3800

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 KH-5239309 ROTOR £252.80 Add
002 KH-5214405 WELLE F.PUMPE £58.33 Add
003 KH-5204305 ZAHNRAD £55.05 Add
004 KH-5242201 SCHEIBE £9.33 Add
005 KH-X-280-25 STIFT £2.68 Add
006 KH-5209603 CUP £25.84 Add
007 KH-X-67-64 SCHRAUBE £3.70 Add
