FG004_4700

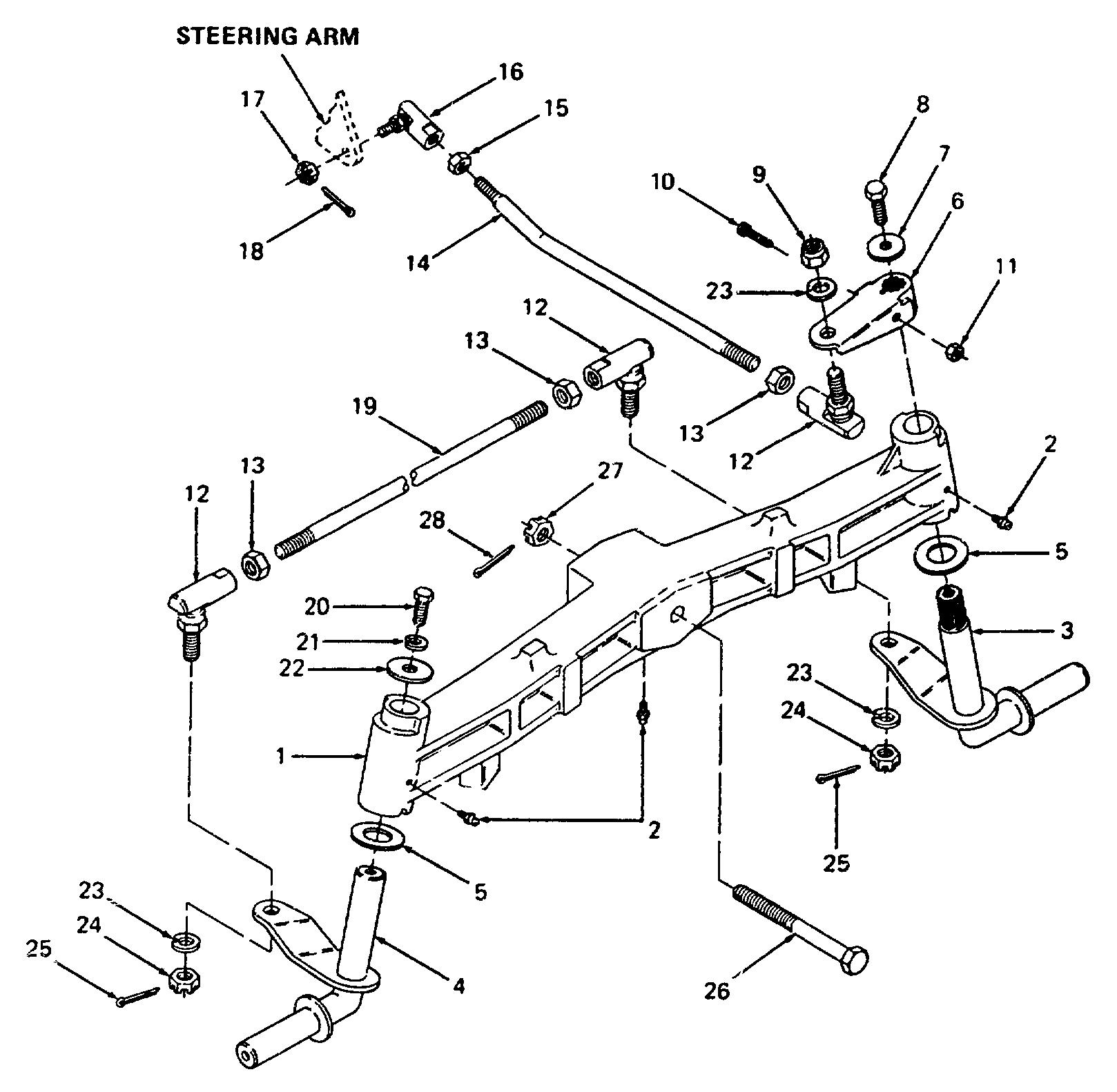

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	759-3549	AXLE, FRONT [INCLUDES REF NO. 2 (QTY 3)]	£464.19	Add
002	737-3000	FITTING LUBE 3/16 DRIVE TYPE	£3.87	Add
003	703-1748	KNUCKLE, STEERING - LH	£196.97	Add
004	703-1749	KNUCKLE, STEERING - RH	£191.95	Add
005	736-0163	WASHER-FL	£12.20	Add
006	703-1884	ARM, STEERING	£84.40	Add
007	736-0247	F.I. WASH	£8.70	Add
008	710-3118	HHCS:3/8-16:1.00:GR5:LOCK	£3.10	Add
009	712-3053	NO LONGER AVAILABLE	N/A	POA
010	710-3210	SCREW, SOCKET HD CAP, 1/4-20 X 1.38 LG	£3.34	Add
011	712-0107	NO LONGER AVAILABLE	N/A	POA
012	723-3015	JOINT-BALL	£89.94	Add
013	712-3029	NUT	£3.20	Add
014	747-3140	LINK, DRAG	£23.72	Add
015	712-3001	NUT:JAM:3/8-24:GR2	£3.26	Add
016	723-3000	BALL JOINT	£44.93	Add
017	712-3002	NUT, HEX CASTLE, 3/8-24 GR5	£2.73	Add
018	714-0507	COTTER PIN 3/32 DIA	£3.13	Add
019	747-3139	ROD, TIE	£23.17	Add
020	710-0514	HEX BOLT	£3.81	Add
021	736-0169	L. WASHER	£2.89	Add
022	736-3039	WASH:FLAT:.406 x 1.5 x .105	£2.00	Add
023	736-0921	WASHER:LOCK:1/2:REGULAR DUTY	£2.98	Add
024	712-3012	NUT:HEX:1/2-20:GR5:SLOT	£4.80	Add
025	714-3004	NO LONGER AVAILABLE	N/A	POA
026	710-3019	NO LONGER AVAILABLE	N/A	POA
027	712-3011	NO LONGER AVAILABLE	N/A	POA
028	714-3001	Roll pin	£2.30	Add
