FG003_1600

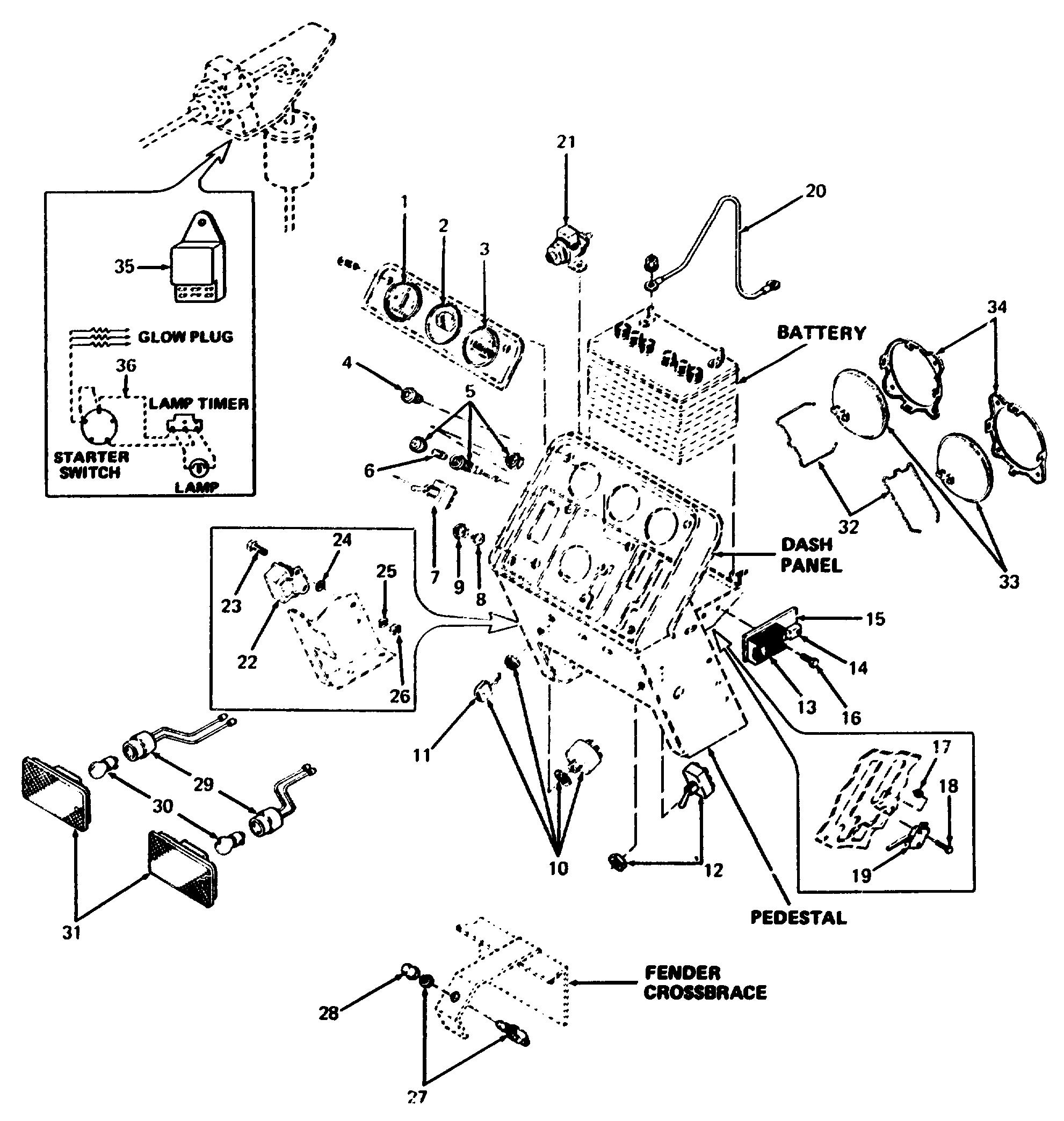

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG003_1600

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
736-0329 L. WASHER £3.26 Add
725-3132 WIRE HARNESS £814.39 Add
736-0147 WASHER-EXTERN L £2.79 Add
712-0349 NUT, HEX, #10-32 £3.31 Add
710-3003 SCREW, PAN HD, #8-32 X .75 LG £2.56 Add
736-3018 NO LONGER AVAILABLE N/A POA
712-0142 NUT:HEX:#8-32:GRA £3.24 Add
710-3003 SCREW, PAN HD, #8-32 X .75 LG £2.56 Add
712-0142 NUT:HEX:#8-32:GRA £3.24 Add
001 725-3023 ROUND AMMETER £90.48 Add
002 KB-19488-83030 N/A POA
003 725-3058 HOUR METER £220.98 Add
004 725-3153 BULB £53.80 Add
005 725-3134 OIL-PRESSURE METER £62.07 Add
006 725-3125 BULB,HEAD LAMP £6.35 Add
007 725-0893 PTO SWITCH £51.85 Add
008 736-3003 NO LONGER AVAILABLE N/A POA
009 712-3014 NO LONGER AVAILABLE N/A POA
010 KB-66704-55120 SWITCH, KEY (INCLUDES REF NO. 11) N/A POA
011 KB-66711-55140 KEY, IGNITION (SET OF 2) N/A POA
012 725-3087 SWITCH-HEADLAMP £36.40 Add
013 KB-19267-64600 REGULATOR N/A POA
014 725-3090 BREAKER-CIRCUIT £55.71 Add
015 731-3038 PLATE £14.71 Add
016 710-0606 SCREW (RED) £3.33 Add
017 712-3052 NUT-LOCK £2.56 Add
018 710-3112 SCREW-HEX HD MACH £2.69 Add
019 725-3066 NO LONGER AVAILABLE N/A POA
020 629-0739 WIRE-ELEC 725-0994 £16.05 Add
021 KB-68371-51210 PUMP, ELECTRIC FUEL N/A POA
022 725-0894P RELAY 725-0894 £59.96 Add
023 710-0751 BOLT 069 £3.39 Add
024 736-0222 NO LONGER AVAILABLE N/A POA
025 736-0329 L. WASHER £3.26 Add
026 712-3006 NUT £2.77 Add
027 725-3060 Switch £31.62 Add
028 735-3006 guard cap £18.27 Add
029 725-3019 CABLE ASSY £14.27 Add
030 725-3020 BULB £13.38 Add
031 725-3018 NO LONGER AVAILABLE N/A POA
032 732-3011 HOOD:SPRING £8.87 Add
033 725-0222 USE 725-1672 £81.69 Add
034 703-0166 DEFLECTOR £33.42 Add
035 KB-15694-65990 TIMER, LIGHT N/A POA
036 725-3156 WIRE HARNESS £28.34 Add
