FG003_2200

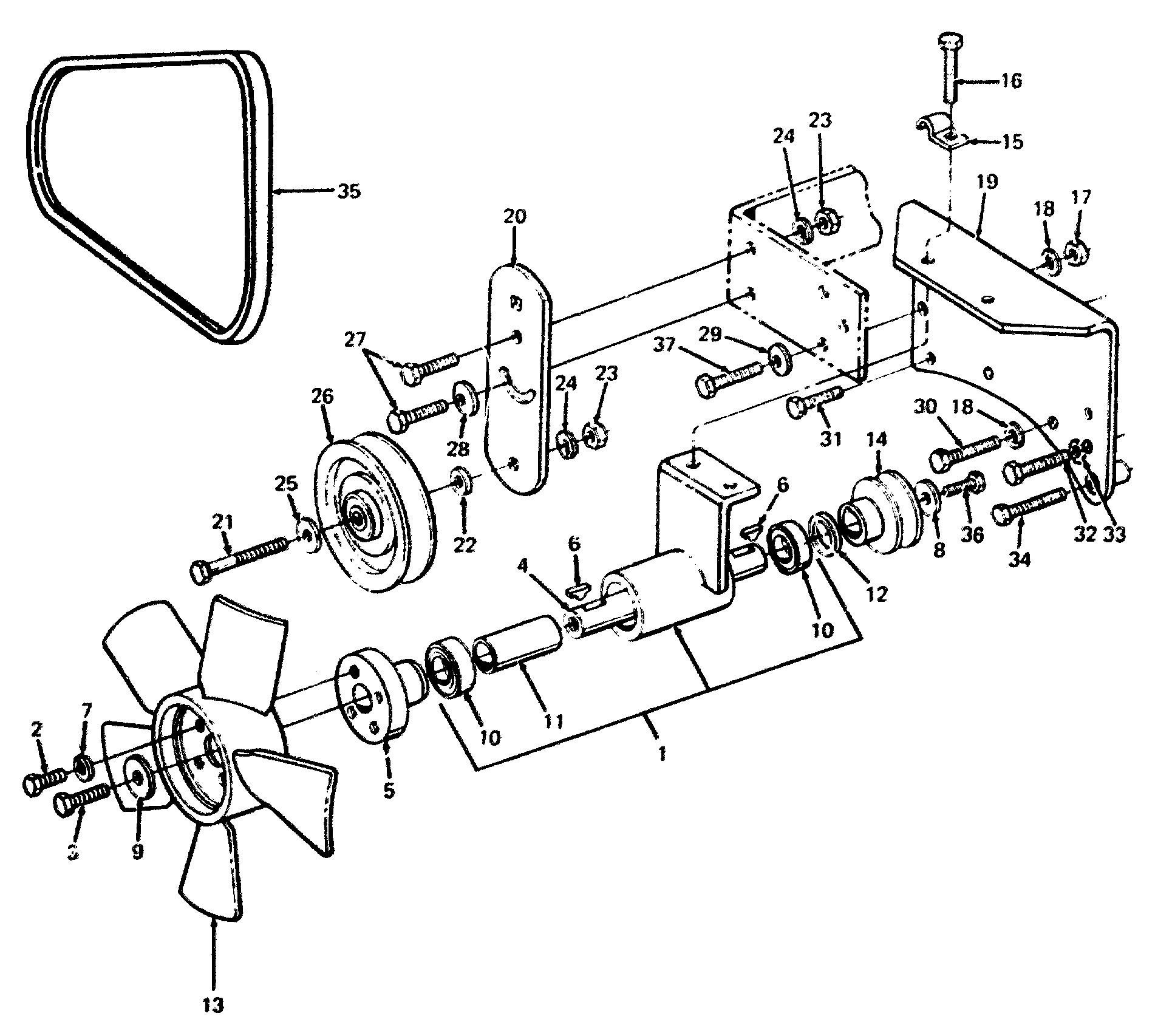

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG003_2200

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
736-0119 LOCK WASHER 5/16 £3.33 Add
712-3010 NUT 5/16 x 18 £2.77 Add
736-0119 LOCK WASHER 5/16 £3.33 Add
712-3057 NUT 5/16-24 £3.00 Add
736-0119 LOCK WASHER 5/16 £3.33 Add
712-3057 NUT 5/16-24 £3.00 Add
001 759-3201 HOUSING-BEARING £430.61 Add
002 710-0751 BOLT 069 £3.39 Add
003 710-3129 710-3129 £4.22 Add
004 711-3136 CROSS SHAFT PIVOT PIN £92.70 Add
005 711-3137 USE 618-0006 £136.16 Add
006 714-0388 KEY-WOODRUFF NR.61 3/16X5/8" £12.14 Add
007 736-0329 L. WASHER £3.26 Add
008 736-3074 WASHER £4.22 Add
009 736-3078 WASH:FLAT:.344 x 1.00 x 063:HD £4.23 Add
010 741-0140 BALL BEARING £68.26 Add
011 750-3034 SPACER £30.68 Add
012 750-3035 VANE ACTUATOR WASHER £13.60 Add
013 KB-19488-74110 FAN N/A POA
014 756-0327B NO LONGER AVAILABLE N/A POA
015 703-1050 CLAMP,CABLE £4.50 Add
016 710-3155 SKT.-SCHR. 5/16-18X.88" £2.56 Add
017 712-3057 NUT 5/16-24 £3.00 Add
018 736-0119 LOCK WASHER 5/16 £3.33 Add
019 703-0961 BRACKET, GATE SLIDE ANGLE £129.15 Add
020 703-0964 PLATE £20.18 Add
021 710-3037 SCREW-HEX £4.22 Add
022 711-3144 WASHER £9.43 Add
023 712-3000 NUT:HEXLK:3/8-16 GR.B CTRLK £3.20 Add
024 736-0169 L. WASHER £2.89 Add
025 736-0140 WASH:FLAT:.385 x.62 x.063 £3.59 Add
026 756-3032 NO LONGER AVAILABLE N/A POA
027 710-0514 HEX BOLT £3.81 Add
028 736-0308 WASHER-BELL BLADE £3.59 Add
029 736-0242 BELL WASHER £3.72 Add
030 710-3139 SKT-SCHRAUBE M8-1.25X40 £2.79 Add
031 710-0772 HEX BOLT £11.63 Add
032 710-0528 SCREW (DNR) £3.55 Add
033 736-3007 NO LONGER AVAILABLE N/A POA
034 710-0624 HEX. HEAD SCREW 5/16-24X1.50" £10.65 Add
035 754-3022 NO LONGER AVAILABLE N/A POA
036 710-3128 SKT.-SCHR. 5/16-18X1.25" £3.82 Add
037 710-0888 HEX SCR SPECIAL £8.87 Add
