Parts list

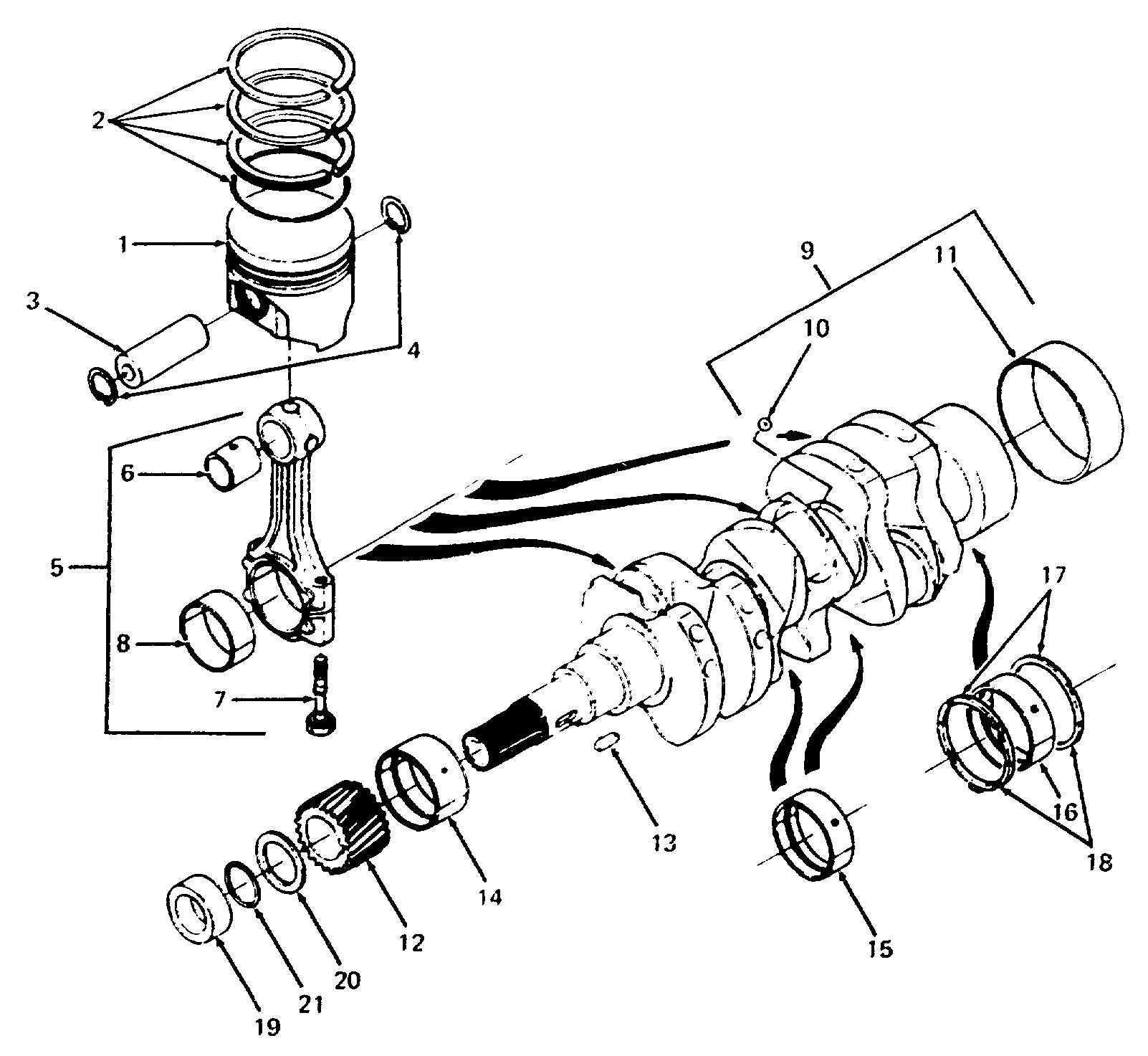

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
001
|
KB-15852-21110
|
PISTON (STD)
|
N/A
|
POA
|
|
001
|
KB-15852-21910
|
PISTON (+0.5 MM)
|
N/A
|
POA
|
|
002
|
KB-14541-21050
|
RING, PISTON (STD)
|
N/A
|
POA
|
|
002
|
KB-14541-21090
|
RING, PISTON (+0.5 MM)
|
N/A
|
POA
|
|
003
|
KB-15841-21310
|
PIN, PISTON
|
N/A
|
POA
|
|
004
|
KB-14601-21330
|
RING, RETAINING
|
N/A
|
POA
|
|
005
|
KB-19036-22010
|
ROD ASSY, CONNECTING (INCLUDES REF NO. 6, 7 & 8)
|
N/A
|
POA
|
|
006
|
KB-15841-21980
|
BUSHING, PISTON PIN
|
N/A
|
POA
|
|
007
|
KB-16851-22140
|
BOLT, CONNECTING ROD
|
N/A
|
POA
|
|
008
|
KB-19036-22310
|
BEARING, CONNECTING ROD (STD)
|
N/A
|
POA
|
|
008
|
KB-15841-22970
|
BEARING, CONNECTING ROD (-0.2 MM)
|
N/A
|
POA
|
|
008
|
KB-15841-22980
|
BEARING, CONNECTING ROD (-0.4 MM)
|
N/A
|
POA
|
|
009
|
KB-15861-23010
|
CRANKSHAFT ASSY [INCLUDES REF NO. 10 (QTY 3) *amp; 11]
|
N/A
|
POA
|
|
010
|
KB-07715-03207
|
BALL
|
N/A
|
POA
|
|
011
|
KB-19215-23280
|
SLEEVE, CRANKSHAFT
|
N/A
|
POA
|
|
012
|
KB-15841-24110
|
GEAR, CRANKSHAFT
|
N/A
|
POA
|
|
013
|
KB-05712-00515
|
KEY
|
N/A
|
POA
|
|
014
|
KB-15841-23470
|
BEARING, CRANKSHAFT MAIN
|
N/A
|
POA
|
|
014
|
KB-15841-23910
|
BEARING, CRANKSHAFT MAIN (-0.2 MM)
|
N/A
|
POA
|
|
014
|
KB-15841-23920
|
BEARING, CRANKSHAFT MAIN (-0.4 MM)
|
N/A
|
POA
|
|
015
|
KB-15841-23480
|
BEARING, CRANKSHAFT MAIN
|
N/A
|
POA
|
|
015
|
KB-15841-23860
|
BEARING, CRANKSHAFT MAIN (-0.2 MM)
|
N/A
|
POA
|
|
015
|
KB-15841-23870
|
BEARING, CRANKSHAFT MAIN (-0.4 MM)
|
N/A
|
POA
|
|
016
|
KB-15261-23480
|
BEARING, CRANKSHAFT MAIN
|
N/A
|
POA
|
|
016
|
KB-15261-23930
|
BEARING, CRANKSHAFT MAIN (-0.2 MM)
|
N/A
|
POA
|
|
016
|
KB-15261-23940
|
BEARING, CRANKSHAFT MAIN (-0.4 MM)
|
N/A
|
POA
|
|
017
|
KB-15261-23530
|
BEARING, SIDE 1
|
N/A
|
POA
|
|
017
|
KB-15261-23950
|
BEARING, SIDE (+0.2 MM)
|
N/A
|
POA
|
|
017
|
KB-15261-23980
|
BEARING, SIDE (+0.4 MM)
|
N/A
|
POA
|
|
018
|
KB-15261-23540
|
BEARING, SIDE 2
|
N/A
|
POA
|
|
018
|
KB-15261-23970
|
BEARING, SIDE (+0.2 MM)
|
N/A
|
POA
|
|
018
|
KB-15261-23980
|
BEARING, SIDE (+0.4 MM)
|
N/A
|
POA
|
|
019
|
KB-15841-23250
|
COLLAR, CRANKSHAFT
|
N/A
|
POA
|
|
020
|
KB-15881-23310
|
SLINGER, CRANKSHAFT OIL
|
N/A
|
POA
|
|
021
|
KB-04811-16220
|
O-RING
|
N/A
|
POA
|
