Parts list

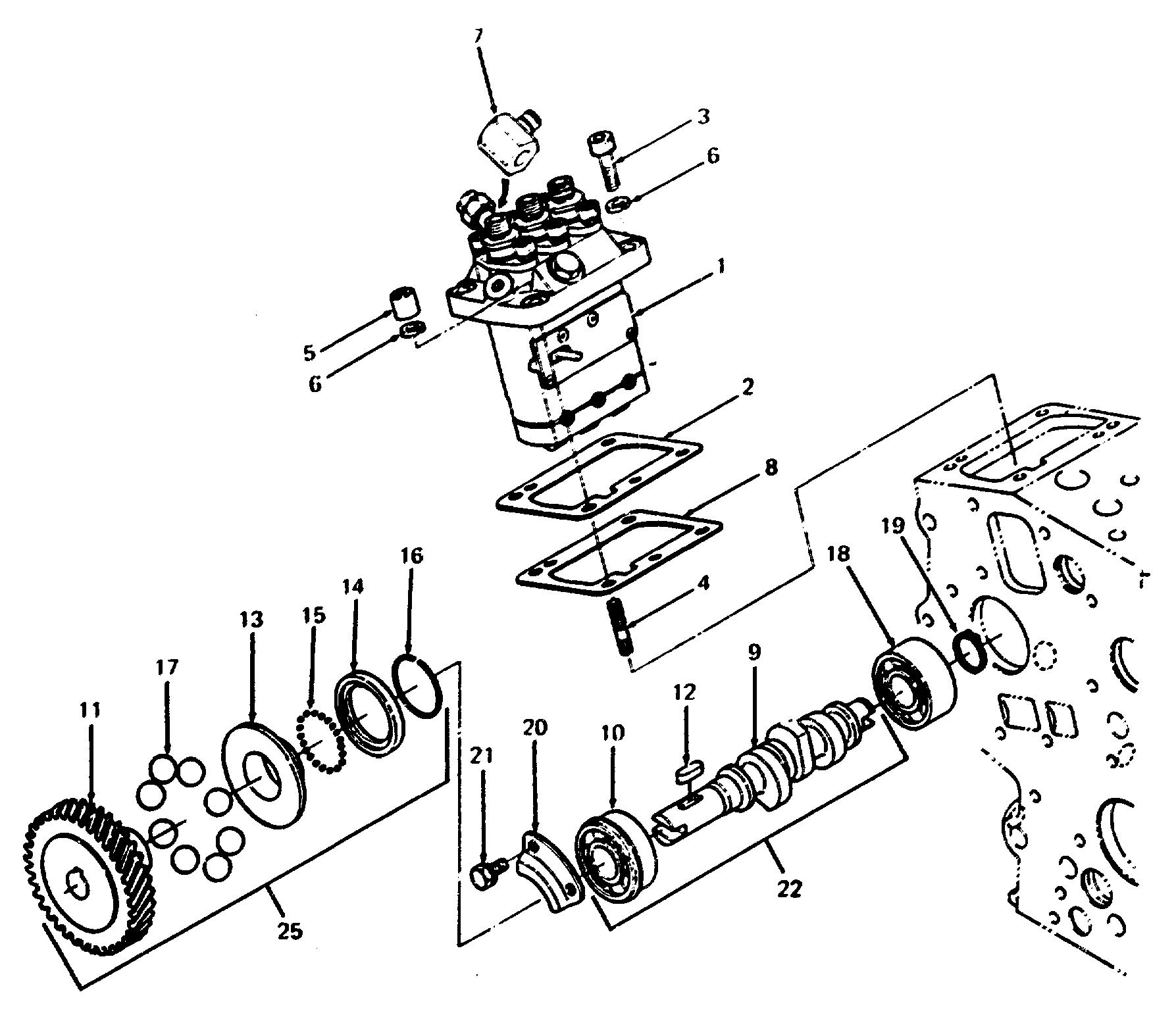

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
001
|
KB-15862-51010
|
PUMP, INJECTION
|
N/A
|
POA
|
|
002
|
KB-15861-52110
|
SHIM, INJECTION PUMP
|
N/A
|
POA
|
|
003
|
KB-01311-10620
|
SCREW, SOCKET HEAD
|
N/A
|
POA
|
|
004
|
KB-15841-91500
|
STUD
|
N/A
|
POA
|
|
005
|
KB-15841-92320
|
NUT, CAP
|
N/A
|
POA
|
|
006
|
KB-04512-50060
|
WASHER, SPRING
|
N/A
|
POA
|
|
007
|
KB-15841-95680
|
JOINT
|
N/A
|
POA
|
|
008
|
KB-15861-52120
|
SHIM, INJECTION PUMP
|
N/A
|
POA
|
|
009
|
KB-15875-16170
|
CAMSHAFT, FUEL INJECTION
|
N/A
|
POA
|
|
010
|
KB-08153-06203
|
BEARING, BALL
|
N/A
|
POA
|
|
011
|
KB-15841-51150
|
GEAR, INJECTION PUMP
|
N/A
|
POA
|
|
012
|
KB-05712-00515
|
KEY
|
N/A
|
POA
|
|
013
|
KB-15841-55450
|
SLEEVE, GOVERNOR
|
N/A
|
POA
|
|
014
|
KB-15841-55690
|
CASE, GOVERNOR BALL
|
N/A
|
POA
|
|
015
|
KB-07715-00801
|
BALL, METAL, 1/8 DIA
|
N/A
|
POA
|
|
016
|
KB-15261-55470
|
RING, GOVERNOR SLEEVE RETAINING
|
N/A
|
POA
|
|
017
|
KB-07715-03217
|
BALL, METAL, 17/32 DIA
|
N/A
|
POA
|
|
018
|
KB-08103-06203
|
BEARING, BALL
|
N/A
|
POA
|
|
019
|
KB-04612-00170
|
RING, EXTERNAL RETAINING
|
N/A
|
POA
|
|
020
|
KB-15841-16320
|
STOP, FUEL CAMSHAFT
|
N/A
|
POA
|
|
021
|
KB-01023-50612
|
SCREW, HEX CAP W/WASHER
|
N/A
|
POA
|
|
022
|
KB-15875-16020
|
CAMSHAFT ASSY, FUEL INJECTION [INCLUDES REF NO. 9, 10, 11, 12, 13, 14, 15 (QTY 32), 16 & 17 (QTY
|
N/A
|
POA
|
