FG003_6000

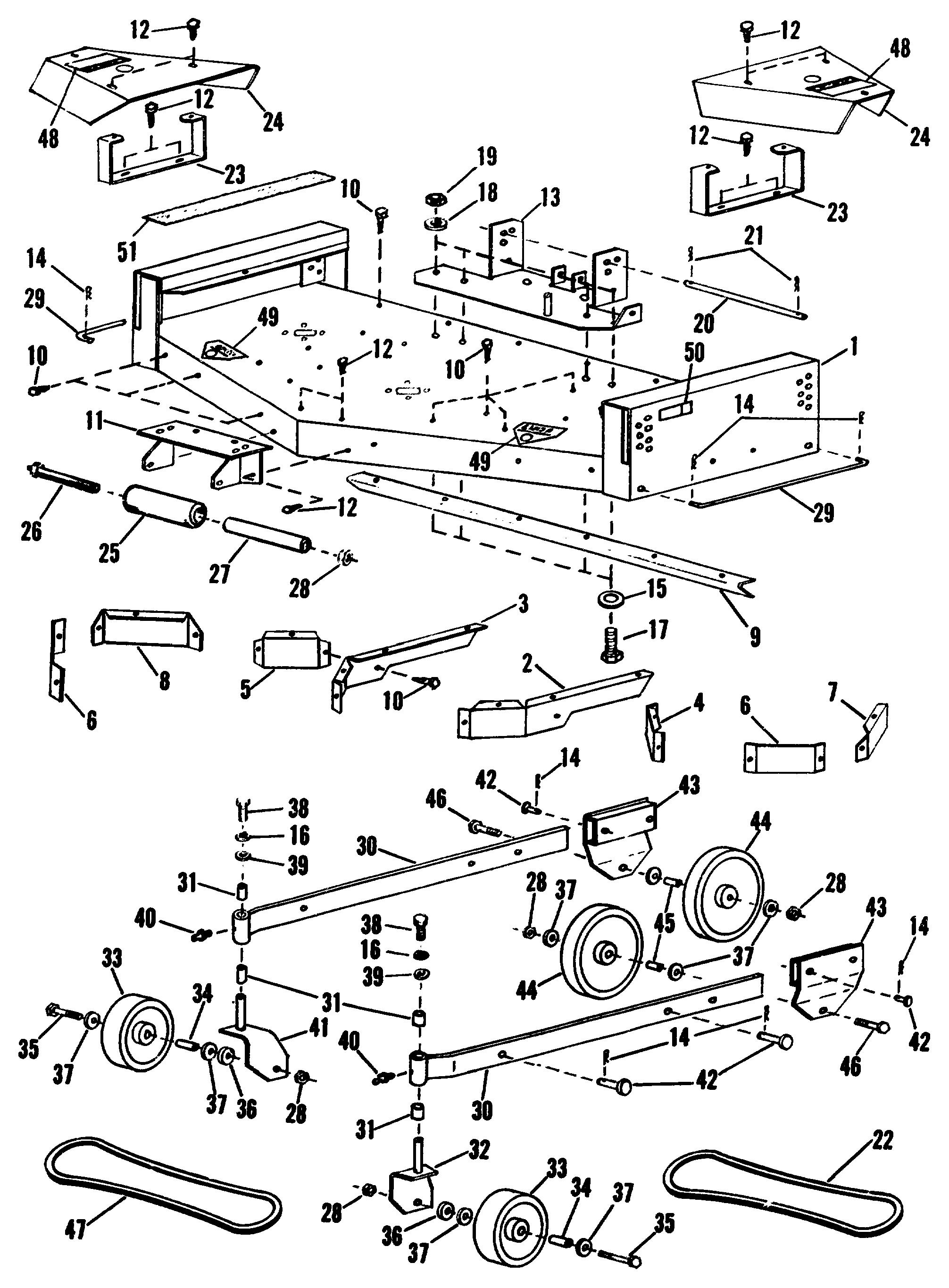

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	19099	ROTARY MOWER HOUSING	N/A	POA
002	19105	BAFFLE - L.H., CENTER	N/A	POA
003	19106	BAFFLE - R.H., CENTER	£49.85	Add
004	19107	BAFFLE - L.H., FRONT, CENTER	N/A	POA
005	19212	BAFFLE - R.H., FRONT, CENTER	£139.63	Add
006	19108	BAFFLE - FRONT, CORNER	N/A	POA
007	19109	BAFFLE - L.H., REAR	N/A	POA
008	19110	BAFFLE - R.H., REAR	N/A	POA
009	19231	DISCHARGE DEFLECTOR	£207.67	Add
010	GM-9426277	SCREW - 1/4-14 X 5/8" SELF TAPPING HEX HEAD	N/A	POA
011	19104	ROLLER MOUNTING BRACKET	N/A	POA
012	9131	SCREW - 5/16-18 X 3/4" SELF TAPPING HEX HEAD	N/A	POA
013	19131	IDLER MOUNTING BRACKET	N/A	POA
014	3430	PIN - HAIR COTTER	N/A	POA
015	GM-120396	WASHER - 17/32 X 1-1/16" X .095 FLAT	N/A	POA
016	GM-120382	WASHER - 3/8" MEDIUM LOCK	N/A	POA
017	GM-180175	BOLT - 1/2-13 X 1-1/4" HEX HEAD	N/A	POA
018	GM-120384	WASHER - 1/2" MEDIUM LOCK	N/A	POA
019	GM-120378	NUT - 1/2-13 LIGHT HEX	N/A	POA
020	19213	PIN	£157.82	Add
021	3341	PIN - HAIR COTTER	N/A	POA
022	15561	COVER ENG	£366.80	Add
023	19111	V-BELT COVER BRACKET	N/A	POA
024	19112	V-BELT COVER	N/A	POA
025	17739	ROLLER	£231.99	Add
026	17741	BOLT - W/ GREASE FITTING	£238.11	Add
027	17740637	SPIRAL BAFFLE	£53.34	Add
028	GM-9414074	NUT - 1/2-13 HEX LOCK	N/A	POA
029	19139	SIDE SKID ROD	£64.86	Add
030	19117	GAGE BAR - (INCLUDES BUSHINGS)	N/A	POA
031	15159	BUSHING	N/A	POA
032	19124	CASTER WHEEL MOUNTING - L.H.	£43.24	Add
033	14501	WHEEL - 6" X 2.00	N/A	POA
034	5579	SPACER	N/A	POA
035	GM-180194	BOLT - 1/2-13 X 4" HEX HEAD	N/A	POA
036	14306	CLUTCH HOUSING	£52.23	Add
037	GM-120390	WASHER - 9/16 X 1-3/8" X .109 FLAT	N/A	POA
038	GM-180120	BOLT - 3/8-16 X 3/4" HEX HEAD	N/A	POA
039	4506	FLAT WASHER	N/A	POA
040	5074	GREASE FITTING	N/A	POA
041	19125	CASTER WHEEL MOUNTING - R.H.	N/A	POA
042	3433	PIN - CLEVIS	N/A	POA
043	19215	REAR WHEEL MOUNTING BRACKET	£162.57	Add
044	19127	WHEEL - 8" X 2.00	£97.63	Add
045	19128	SPACER	N/A	POA
046	GM-180188	BOLT - 1/2-13 X 2-3/4" HEX HEAD	N/A	POA
047	19230	V-BELT (MULE DRIVE TO MOWER)	£37.56	Add
048	12314	DECAL - DANGER	N/A	POA
049	12315	DECAL - DANGER	N/A	POA
050	17645	DECAL - DANGER	N/A	POA
051	815040T04	ANTI-SLIP TREAD 19252	N/A	POA
