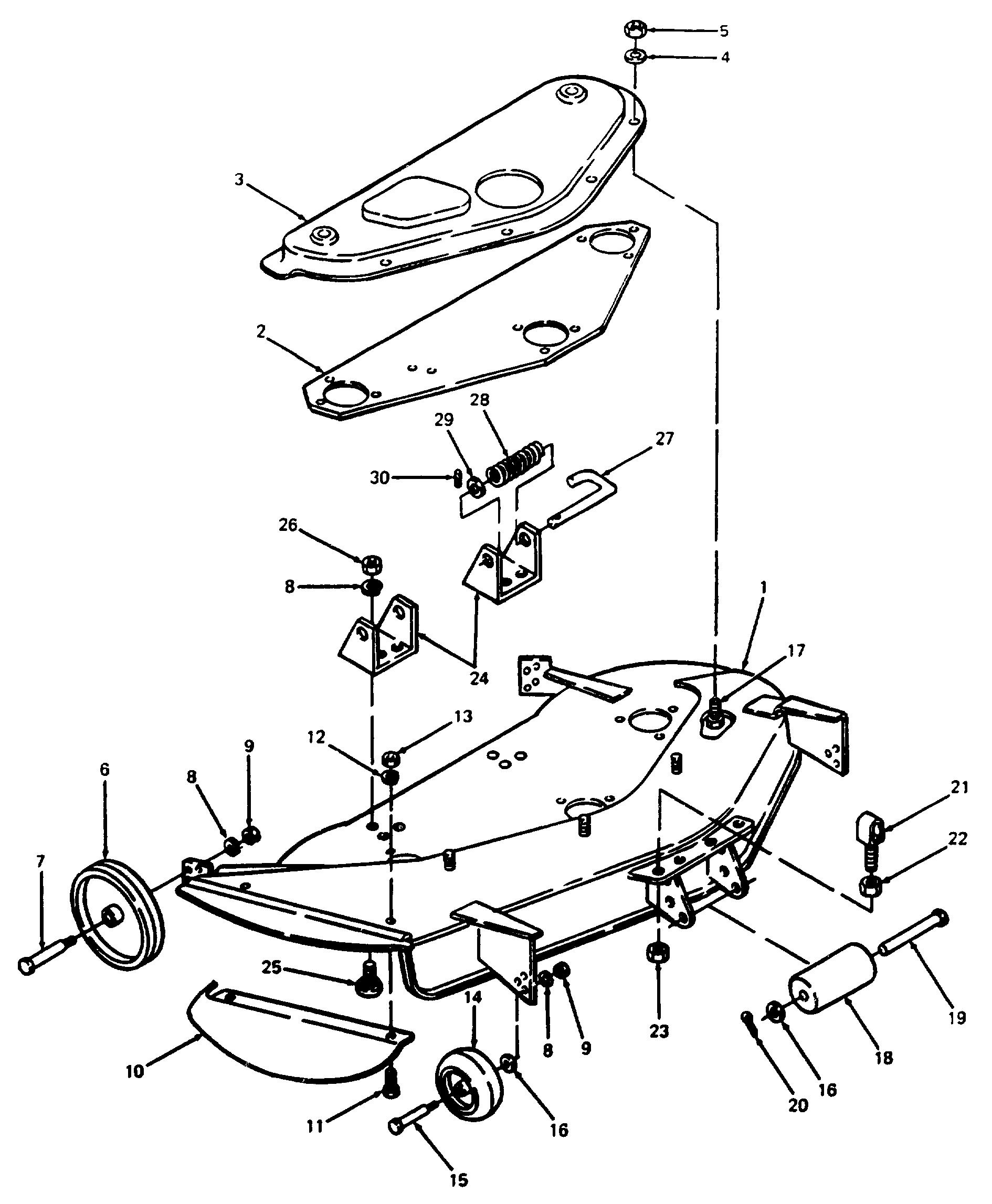

FG003_6200

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	759-3252	HOUSING ASSY, 50*quot; MOWER W/GRAPHICS (INCLUDES REF NO. 17 [QTY 8])	£946.60	Add
	777530145	NO LONGER AVAILABLE	N/A	POA
	777-6275A	GRAPHIC, THROWN OBJECT 777-6275	£4.11	Add
	777-2551	GRAPHIC, 50*quot; DO NOT STEP	N/A	POA
002	703-0137	PLATE, SPINDLE MTG.	£270.42	Add
003	703-0136	COVER, MOWER BELT	£404.24	Add
004	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add
005	712-3010	NUT 5/16 x 18	£2.77	Add
006	734-3000	WHEEL, PLASTIC, 6*quot;	£20.99	Add
007	738-3006	SCREW, SHOULDER	£11.73	Add
008	736-0169	L. WASHER	£2.89	Add
009	712-3008	NUT:JAM:3/8-16:GR5	£3.26	Add
010	703-0132	DEFLECTOR, SHIELD	£53.00	Add
011	710-3025	HHCS:5/16-18:.625:GR5:STD	£3.31	Add
012	736-0119	LOCK WASHER 5/16	£3.33	Add
013	712-3010	NUT 5/16 x 18	£2.77	Add
014	753-04856A	WHEEL, 5*quot; DECK 734-3058	£18.48	Add
015	738-3056	SHOULDER BOLT	£12.94	Add
016	736-0272	WASHER:FL:.510 X 1.000 X .060	£3.16	Add
017	710-3021	NO LONGER AVAILABLE	N/A	POA
018	731-3005	ROLLER	£42.43	Add
019	711-3019	PIN, CLEVIS, 1/2 DIA X 7.0 LG	£22.32	Add
020	714-3002	PIN, COTTER, 3/16 DIA X 1.0 LG	£2.72	Add
021	719-3009	HANGER, FRONT MOWER SUPPORT	£79.60	Add
022	712-3015	NUT	£10.65	Add
023	712-3016	NUT:HEXLK:5/8-11:GR5:NYLON	£11.98	Add
024	703-0101	BRACKET, MOWER SUPPORT	£34.85	Add
025	710-3097	BOLT:CRG:3/8-16:GR5:1.0	£10.97	Add
026	712-3017	NUT:JAM:3/8-16:GR5	£2.97	Add
027	747-3013	NO LONGER AVAILABLE	N/A	POA
028	732-3007	SPRING, COMPRESSION	£5.42	Add
029	736-0160	WASH:FLAT:.530x.930x.050	£3.39	Add
030	715-3003	PIN, SPIRAL SPRING	£15.25	Add
