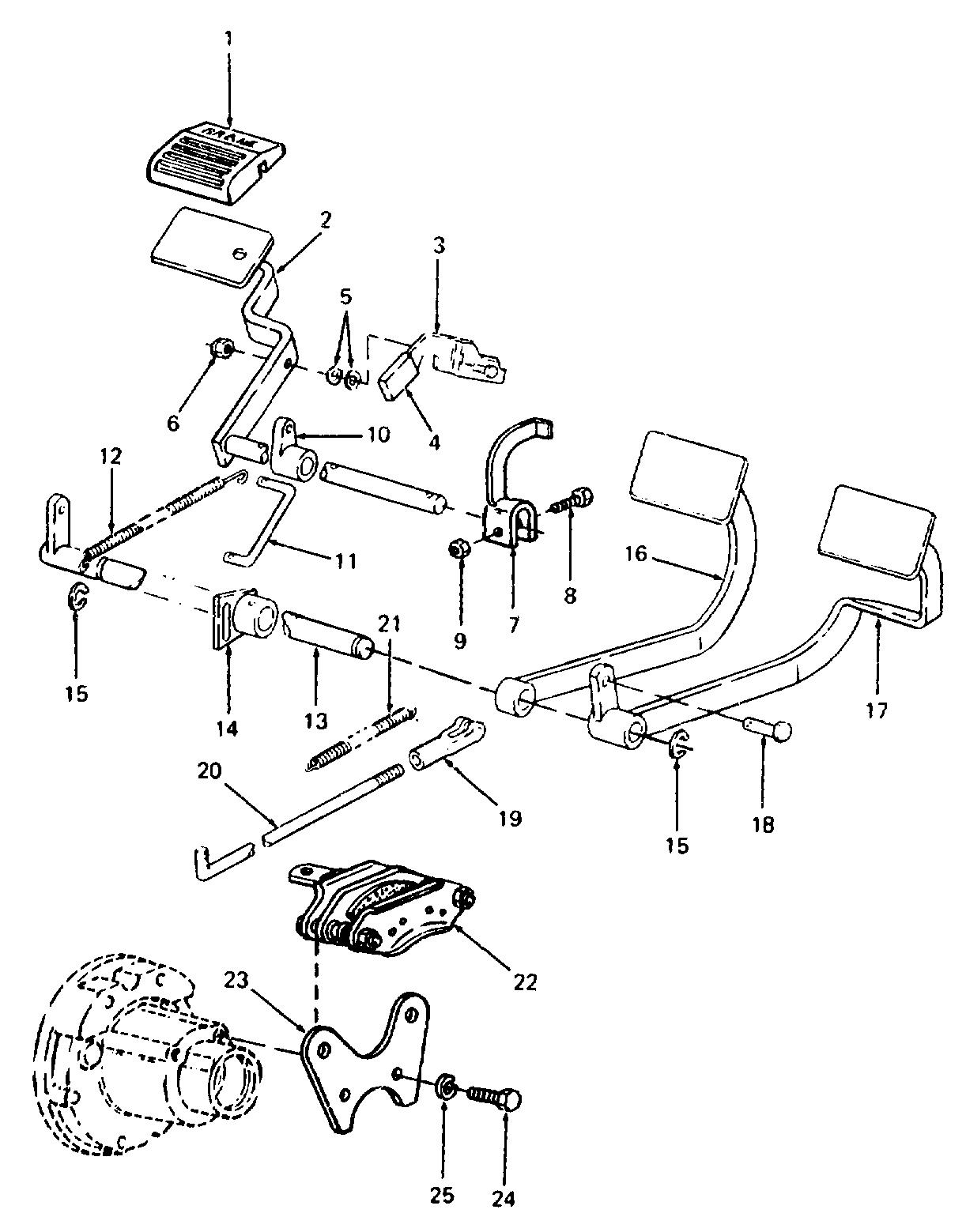

FG001_0100

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
	714-0507	COTTER PIN 3/32 DIA	£3.13	Add
	736-0185	FLAT WASHER (RED)	£3.59	Add
	715-0114A	SPRING PIN 715-0114	£5.15	Add
	715-0114A	SPRING PIN 715-0114	£5.15	Add
	737-3000	FITTING LUBE 3/16 DRIVE TYPE	£3.87	Add
	736-0185	FLAT WASHER (RED)	£3.59	Add
	714-0507	COTTER PIN 3/32 DIA	£3.13	Add
	712-3001	NUT:JAM:3/8-24:GR2	£3.26	Add
	736-0185	FLAT WASHER (RED)	£3.59	Add
	714-0474	PIN (RED)	£3.20	Add
001	724-3004	PAD, BRAKE PEDAL	£18.75	Add
002	703-0848	SHAFT,PARK BRAKE PEDAL	£110.61	Add
002	715-0114A	SPRING PIN 715-0114	£5.15	Add
003	703-1393	ROD-BRAKE LOCKOUT	£14.51	Add
004	720-3019	HANDLE	£3.48	Add
005	736-3001	736-3001	£2.69	Add
006	712-0324	HEX. INS L NUT	£3.69	Add
007	703-1956	BRACKET, START SWITCH	£12.42	Add
008	710-0106	HHCS:1/4-20:1.25:GR5:SPEC	£3.95	Add
009	712-0291	LOCK-NUT	£2.77	Add
010	719-3000	LEVER BRAKE 748-3006	£48.50	Add
011	747-3023	BRACKET	£21.99	Add
012	732-3010	732-3010	£12.62	Add
013	703-0223	WELLE ZUS.	£243.45	Add
014	703-0225	PLT:ADJ:HGT	£52.67	Add
015	716-3001	USE 716-0115	£14.70	Add
016	703-0412	BRAKE PEDAL	£245.47	Add
016	715-3000	PIN, SPIROL SPRING, 1/4 DIA X 1.38 LG	£3.82	Add
017	703-0416	BRAKE PEDAL ASSY.	£304.11	Add
018	711-3037	PIN	£5.91	Add
019	719-3013	719-3013	£25.48	Add
020	747-3022	ROD-BRAKE	£17.69	Add
021	732-3026	SPRING, EXTENSION, .66 OD X 3.3 LG	£8.38	Add
022	759-3423	759-3423	£318.08	Add
023	703-1787	BRACKET, BRAKE MOUNTING	£61.59	Add
024	710-0376	SCREW HEX CAP 5/16	£9.02	Add
025	736-0119	LOCK WASHER 5/16	£3.33	Add
