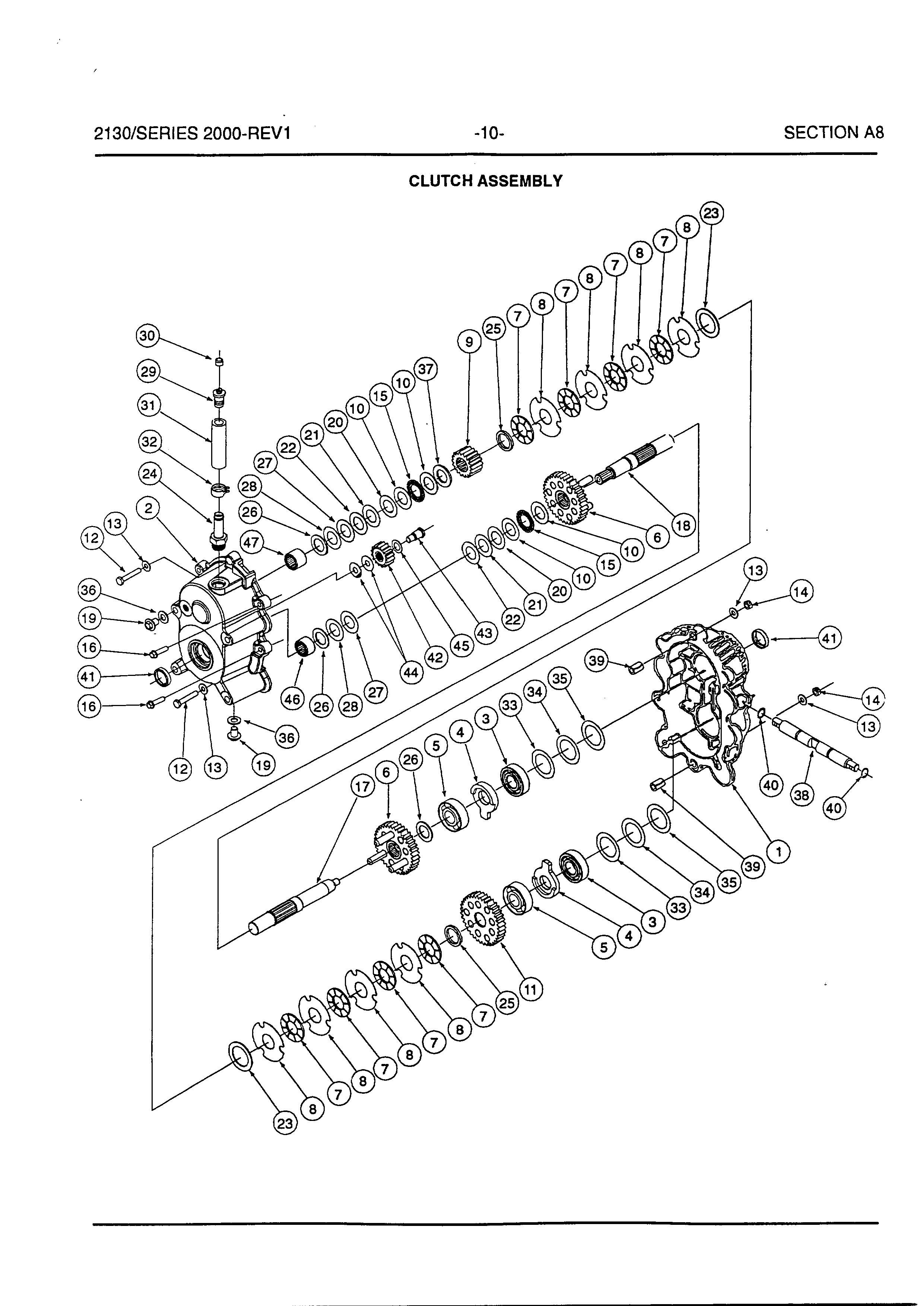

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
001
|
619-3042
|
HOUSING, FRONT CLUTCH
|
£323.59
|
Add
|
|
001
|
759-3746
|
SEALANT, ULTRA GREY, LOCTITE
|
£258.47
|
Add
|
|
002
|
619-3041
|
HOUSING, REAR CLUTCH
|
£388.92
|
Add
|
|
003
|
2010-U1-6204
|
BRG:BALL:20x47x14:6204:OPEN 741-3057
|
£17.59
|
Add
|
|
004
|
718-3003
|
FULCRUM, CLUTCH
|
£14.51
|
Add
|
|
005
|
741-3040
|
BEARING, ANGULAR CONTACT
|
£89.59
|
Add
|
|
006
|
618-3020
|
CARRIER ASSEMBLY, CLUTCH
|
£82.61
|
Add
|
|
007
|
718-3004
|
PLATE, CLUTCH
|
£35.56
|
Add
|
|
008
|
703-2133
|
DISC, FRICTION
|
£5.80
|
Add
|
|
009
|
717-3355
|
GEAR, 18T DRIVE
|
£66.75
|
Add
|
|
010
|
736-0551
|
WASHER, THRUST, .793 X 1.369 X .039
|
£12.48
|
Add
|
|
011
|
717-3363
|
GEAR, 36T
|
£102.55
|
Add
|
|
012
|
710-0606
|
SCREW (RED)
|
£3.33
|
Add
|
|
013
|
736-0463
|
WASH:FLAT: .250 x .630 x .052
|
£3.31
|
Add
|
|
014
|
712-0291
|
LOCK-NUT
|
£2.77
|
Add
|
|
015
|
741-3067
|
BEARING, NEEDLE, .825 X 1.368 X .078
|
£20.35
|
Add
|
|
016
|
710-0788
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
017
|
711-3323
|
SHAFT, CLUTCH INPUT
|
£153.25
|
Add
|
|
018
|
711-3324
|
SHAFT, CLUTCH OUTPUT
|
£136.82
|
Add
|
|
019
|
710-1323
|
HHCS:PLUG:3/8-16:.500:GR2
|
£4.64
|
Add
|
|
020
|
736-0564
|
WASHER-THRUST
|
£14.62
|
Add
|
|
021
|
736-0565
|
washer
|
£4.76
|
Add
|
|
022
|
736-0566
|
WASHER FLAT
|
£9.58
|
Add
|
|
023
|
736-3107
|
WASHER, FLAT, 1.25 X 1.80 X .062
|
£5.52
|
Add
|
|
024
|
727-3115
|
TUBE FITTING, 1/2 HOSE, 3/4-16 THRD
|
£28.75
|
Add
|
|
025
|
750-3077
|
SPACER, CLUTCH, .915 X 1.25 X .148
|
£7.09
|
Add
|
|
026
|
736-0287
|
FLAT WASHER .78" X 1.25" X .062"
|
£7.92
|
Add
|
|
027
|
736-0562
|
washer
|
£6.94
|
Add
|
|
028
|
736-0563
|
WASH:SHIM:.793x1.368x.010:HD
|
£15.36
|
Add
|
|
029
|
731-1480
|
PLASTIC VENT FOR .50 ID HOSE
|
£13.94
|
Add
|
|
030
|
731-1481
|
PLASTIC VENT CAP
|
£4.50
|
Add
|
|
031
|
731-0588
|
LINE, FUEL, 1/2" ID 7.75 LONG
|
N/A
|
POA
|
|
032
|
726-0324
|
CLIP-SPRING
|
£11.98
|
Add
|
|
033
|
736-3104
|
WASHER, FLAT, 1.25 X 1.80 X .015
|
£5.16
|
Add
|
|
034
|
736-3126
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
035
|
736-3127
|
WASH:SHIM:1.250x1.800x.010:HD
|
£5.16
|
Add
|
|
036
|
736-0567
|
washer
|
£4.59
|
Add
|
|
037
|
736-0134
|
WASH:FLAT:.812 x 1.38 x.100
|
£9.47
|
Add
|
|
038
|
711-3325A
|
SHAFT, CLUTCH ACTUATOR
|
£92.58
|
Add
|
|
039
|
715-3045
|
DOWEL:BUSH:.400X.484X.750
|
£14.75
|
Add
|
|
040
|
721-3033
|
O-RING, 1/2 ID X 5/8 OD
|
£3.48
|
Add
|
|
041
|
721-3035
|
SEAL, OIL
|
£5.91
|
Add
|
|
042
|
618-3057
|
GEAR ASSEMBLY, 16T REVERSE IDLER
|
£21.28
|
Add
|
|
043
|
738-3096
|
SHAFT, REVERSE IDLER GEAR
|
£58.75
|
Add
|
|
044
|
736-0344
|
WASHER:FLAT:.385x1.000x.030
|
£7.50
|
Add
|
|
045
|
736-3102
|
WASHER, FLAT, .510 X .86 X .030
|
£3.48
|
Add
|
|
046
|
741-3068
|
BEARING, NEEDLE, .787 X 1.024 X .625
|
£63.66
|
Add
|
|
047
|
741-3072
|
BEARING, NEEDLE, .787 X 1.024 X .787
|
£67.26
|
Add
|
|
047
|
737-3025
|
HYDRO-OIL
|
£43.81
|
Add
|
