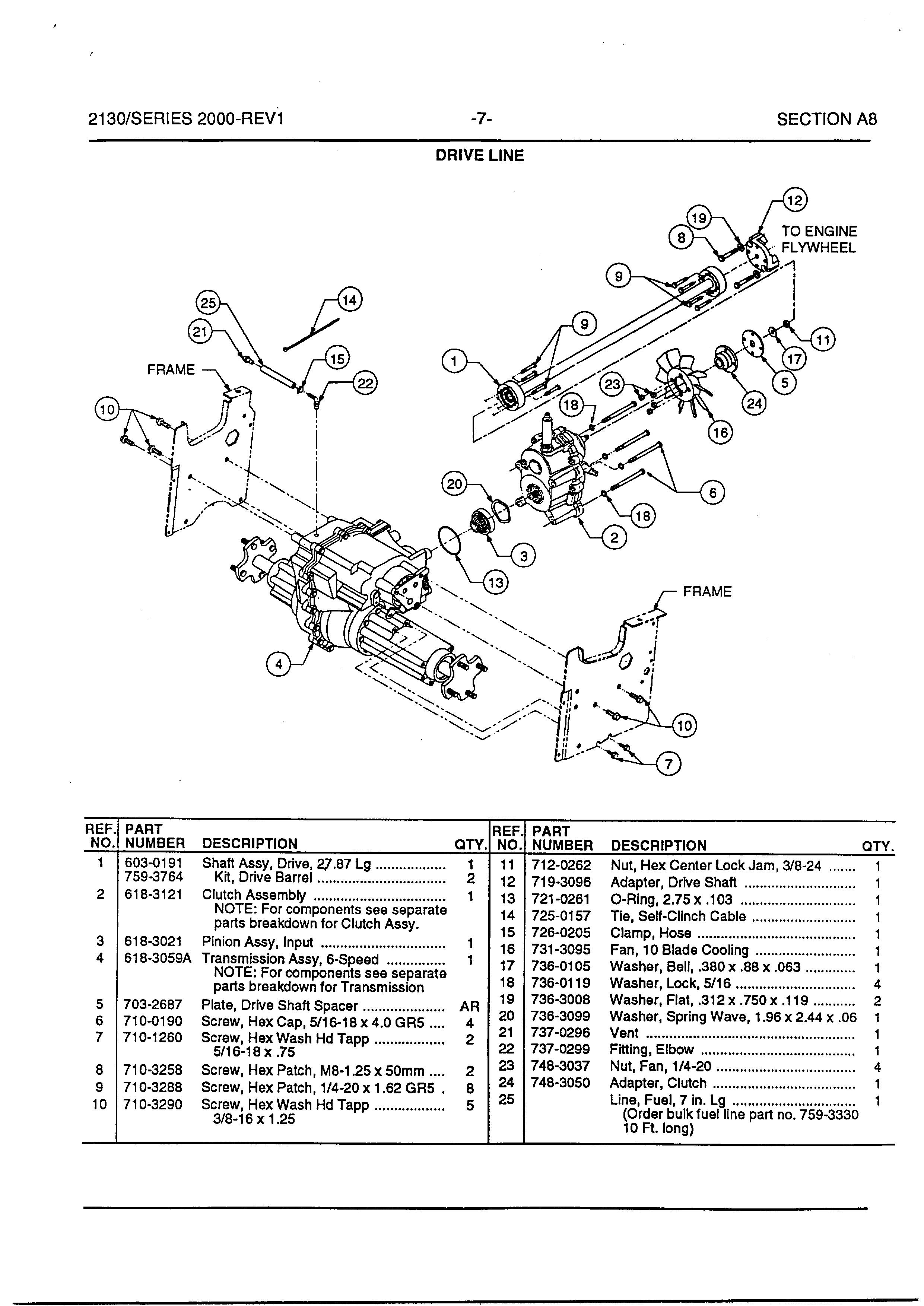

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
001
|
603-0191
|
DRIVE SHAFT ASSEMBLY
|
£302.96
|
Add
|
|
001
|
759-3764
|
KIT,DRIVE BARREL
|
£44.79
|
Add
|
|
002
|
618-3121
|
CLUTCH ASSEMBLY
|
£1,714.22
|
Add
|
|
003
|
618-3021
|
PINION ASSY, INPUT (NOTE: FOR COMPONENTS SEE SEPARATE PARTS BREAKDOWN FOR CLUTCH ASSY.)
|
£251.58
|
Add
|
|
004
|
618-3059A
|
TRANSMISSION ASSY, 6-SPEED (NOTE: FOR COMPONENTS SEE SEPARATE PARTS BREAKDOWN FOR CLUTCH ASSY.)
|
N/A
|
POA
|
|
005
|
703-2687
|
PLATE, DRIVE SHAFT SPACER (NOTE: FOR COMPONENTS SEE SEPARATE PARTS BREAKDOWN FOR TRANSMISSION)
|
£13.07
|
Add
|
|
006
|
710-0190
|
HHCS:5/16-18:4.00:GR5:STD
|
£5.31
|
Add
|
|
007
|
710-1260A
|
SCREW
|
£4.00
|
Add
|
|
008
|
710-3258
|
SCREW, HEX PATCH, M8-1.25 X 50MM (NOTE: FOR COMPONENTS SEE SEPARATE PARTS BREAKDOWN FOR TRANSMISSIO
|
£6.72
|
Add
|
|
009
|
710-3288
|
SCRE.HHCS:1/4-20:1.62:GR5:LOCK
|
£6.22
|
Add
|
|
010
|
710-3290
|
SCR:TT:3/8-16:1.250:HXINDWSH
|
£2.40
|
Add
|
|
011
|
712-0262
|
NUT:JAMLK:3/8-24:GR2
|
£12.97
|
Add
|
|
012
|
719-3096
|
ADAPTER
|
£68.59
|
Add
|
|
013
|
721-0261
|
O-RING, 2.75X.103
|
£13.23
|
Add
|
|
014
|
725-0157
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
015
|
726-0205
|
HOSE CLAMP 1/2 INCH DIA.
|
£3.44
|
Add
|
|
016
|
731-3095
|
IMPELLER ASSY
|
£37.86
|
Add
|
|
017
|
736-0105
|
BELL WASHER
|
£3.33
|
Add
|
|
018
|
736-0119
|
LOCK WASHER 5/16
|
£3.33
|
Add
|
|
019
|
736-3008
|
WASH:FL:.344 X.750 X.120
|
£3.49
|
Add
|
|
020
|
736-3099
|
WASHER
|
£11.25
|
Add
|
|
021
|
737-0296
|
VALVE,INTAKE
|
£21.95
|
Add
|
|
022
|
737-0299
|
FITTING,ELBOW
|
£8.38
|
Add
|
|
023
|
748-3037
|
NUT,FAN,1/4-20
|
£9.16
|
Add
|
|
024
|
748-3050
|
ADAPTER, CLUTCH (NOTE: FOR COMPONENTS SEE SEPARATE PARTS BREAKDOWN FOR TRANSMISSION)
|
£40.55
|
Add
|
