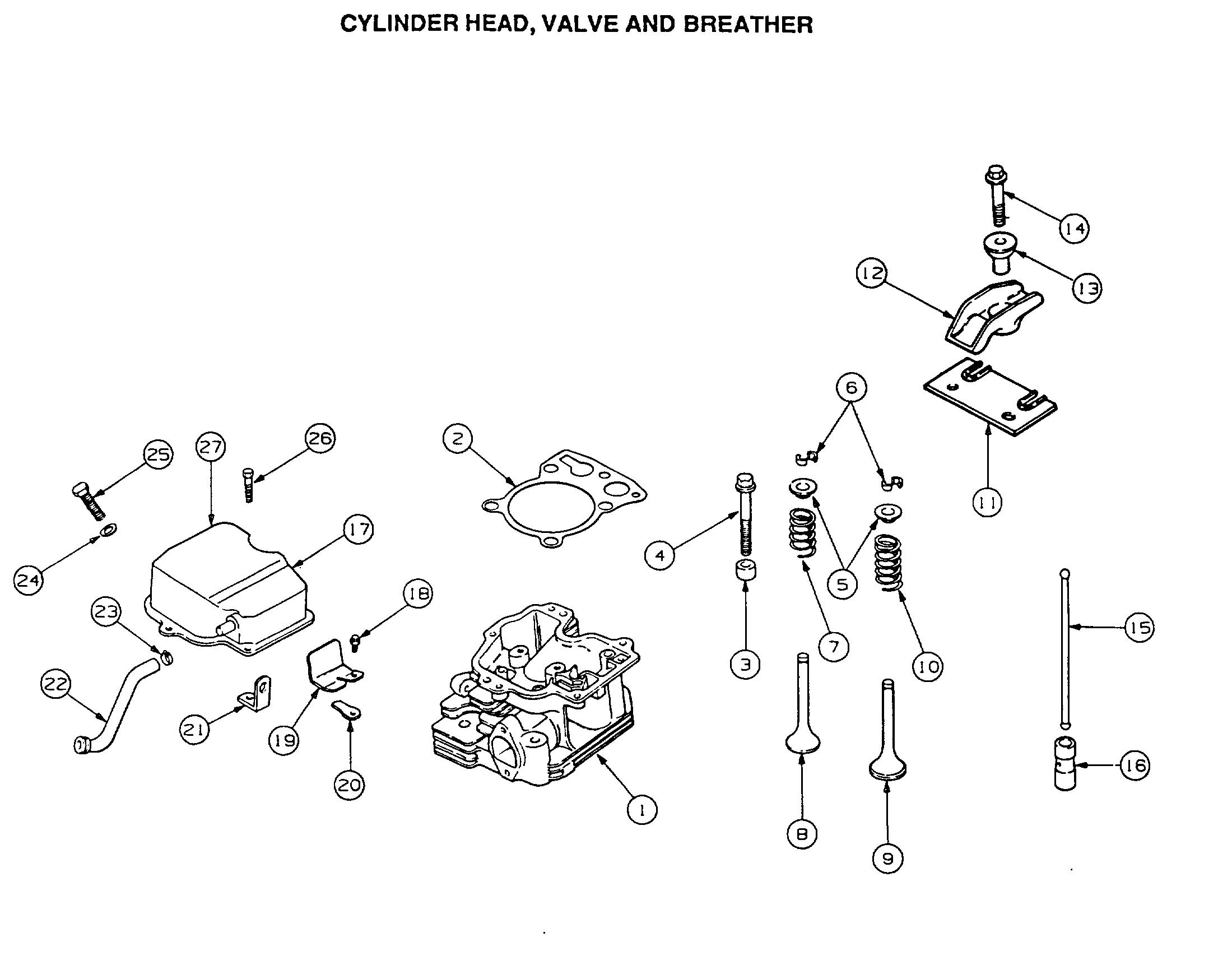

FG008_1500

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	KH-12-318-02	CYLINDER HEAD	N/A	POA
002	KH-12-041-08	GASKET, CYLINDER HEAD	N/A	POA
003	KH-12-112-13	SPACER	N/A	POA
004	KH-12-086-15	BOLT	N/A	POA
005	KH-12-173-01	CAP,VALVE SPRING	£7.16	Add
006	KH-12-755-03	KIT, RETAINER	£6.22	Add
007	KH-12-089-01	SPRING, VALVE	N/A	POA
008	KH-12-016-01	EXHAUST VALVE	N/A	POA
008	KH-12-016-02	VALVE, EXHAUST .010	£114.50	Add
009	KH-12-017-01	VALVE, INTAKE STD	N/A	POA
009	KH-12-017-02	VALVE, INTAKE .010	£63.61	Add
010	KH-12-089-15	SPRING, INTAKE VALVE	N/A	POA
011	KH-12-146-13	PLATE, GUIDE	N/A	POA
012	KH-24-186-01	ARM, ROCKER	N/A	POA
013	KH-24-194-01	BALL, PIVOT ROCKER	N/A	POA
014	KH-M-640034	SCREW, PIVOT ROCKER, M6 X 1.0 X 34	N/A	POA
015	KH-12-411-01	ASS`Y, CHANNEL SUB	N/A	POA
016	KH-12-351-01	LIFTER, VALVE	N/A	POA
017	KH-12-096-12	COVER, VALVE W/NIPPLE	N/A	POA
018	KH-M-0545010	SCREW,HEX FLANGE	£2.91	Add
019	KH-12-018-03	RETAINER-REED	£22.29	Add
020	KH-12-402-01	REED, BREATHER	N/A	POA
021	KH-12-445-05	STRAP-LIFTING	£8.65	Add
022	KH-12-326-09	HOSE-BREATHER	£25.29	Add
023	KH-X-426-9	CLAMP, HOSE	£10.78	Add
024	KH-12-468-05	WASHER	N/A	POA
025	KH-SM-0645025	SCREW, VALVE COVER, M6 X 1.0 X 25	N/A	POA
026	KH-SM-0645020	SCREW, VALVE COVER, M6 X 1.0 X 20	N/A	POA
027	777-1699	GRAPHIC, OHV ENGINE	N/A	POA
