MTD009338

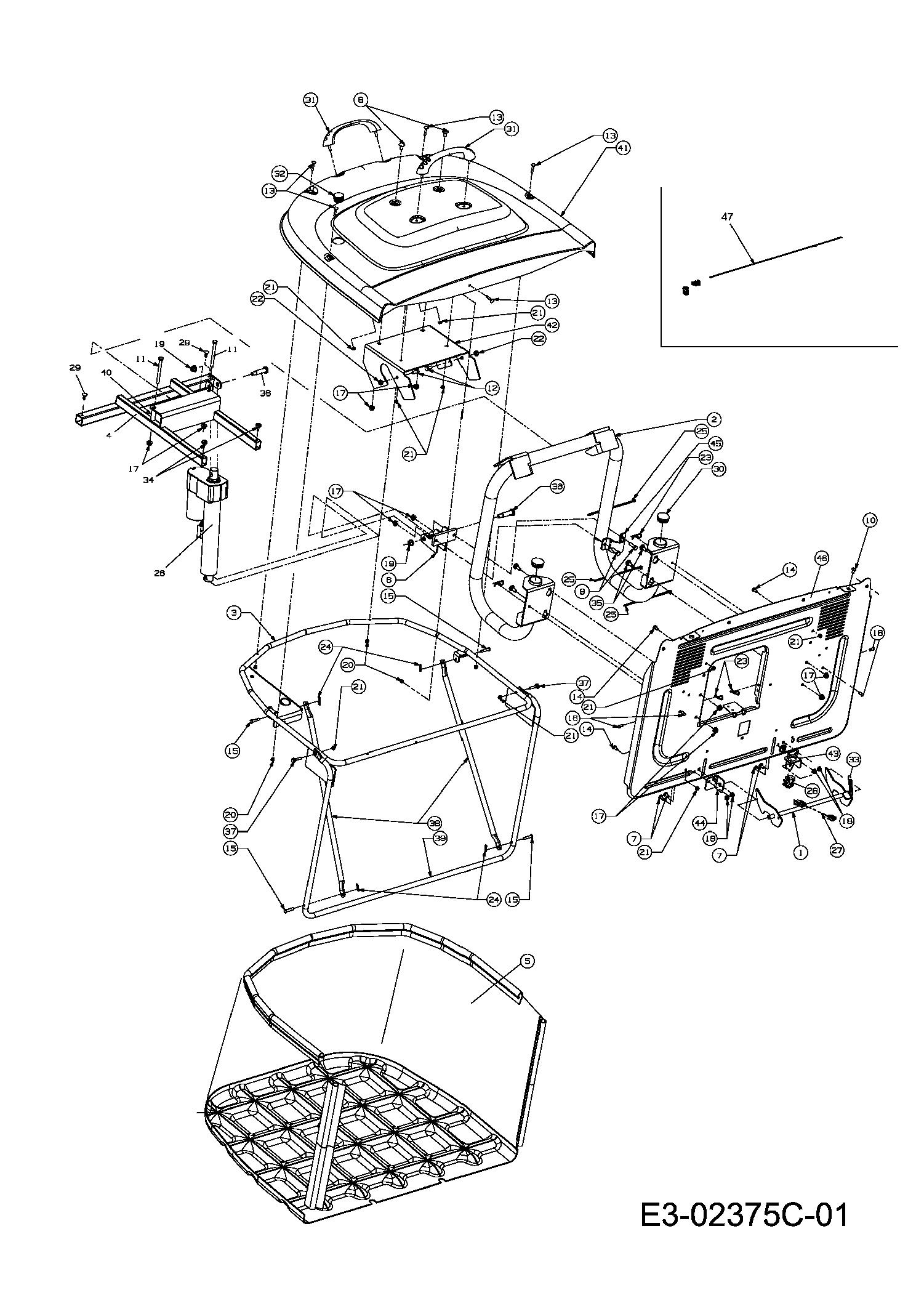

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	647-0063B	LATCH ASM:BAG 250L/300L	£31.44	Add
002	649-0132637	FRM ASM:PIVOT:300L BAG 649-0132	£234.05	Add
003	649-04008637	FRM ASM:TOP:GRSBG 300L 649-04008	£205.78	Add
004	649-04031	TUBE ASM:PIVOT:ELEC BAG DUMP	N/A	POA
005	664-0110A	GRASS BAG	£157.95	Add
006	683-04179637	SUSPENSION BRACKET, BLACK	£71.92	Add
007	710-0134	BOLT	£3.03	Add
008	710-3105	BOLT:CRG:5/16-18:.875:GR1	£8.93	Add
009	710-0376	SCREW HEX CAP 5/16	£9.02	Add
010	710-1017	TAP SCREW	£2.97	Add
011	710-1266	SCREW HHCS:5/16-18:3.5:GR5:STD	£4.70	Add
012	710-1376	CAP SCREW	£4.50	Add
013	710-1612A	BOLT:CRG:M5 x 40.0 LG DIN 603	£3.66	Add
014	710-1691	HEX. SCREW:M6X12 DIN 933 8.8	£4.11	Add
015	711-04138	PIN	£4.11	Add
016	711-0701	CLEVIS PIN	£4.89	Add
017	712-04063	FLANGED NUT	£4.20	Add
018	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
019	712-04065	NUT	£4.02	Add
020	712-0642	NUT FLGLK M5 0.8	£2.68	Add
021	712-0691	HEX NUT M6 DIN 985	£2.66	Add
022	712-0692	HEX NUT	£3.10	Add
023	714-0145	R CLIP	£2.78	Add
024	714-04033	PIN:COT:INT .072 x.92 LG	£2.77	Add
025	725-0157	NO LONGER AVAILABLE	N/A	POA
026	725-04247	ACTR:ELEC:8" STROKE	£581.70	Add
027	725-04324	ADAPTER BAG DISCHARGE	£18.08	Add
028	725-3167	SW:MT:SNAP NO	£24.68	Add
029	726-3046	RATCHET	£3.11	Add
030	731-04048	CAP:TUBE:SUPT 300L/250L BAG	£3.80	Add
031	731-04578	HANDLE	£9.37	Add
032	731-05256	CAP:HARDTOP:CUB 500	£9.23	Add
033	732-0264	EXTENSION SPRING	£10.47	Add
034	735-0271A	UTV TAILGATE GROMMET	£9.24	Add
035	738-0140	SHLD SCREW	£6.03	Add
036	738-0373	AXLE BOLT	£6.84	Add
037	738-1183	SCR:SHLDR:9.5mmX5mm:M6-1X24 LG	£3.85	Add
038	749-04010637	TUBE:SUPT:CROSS GRSBG 250/300 749-04010	£33.38	Add
039	749-1412637	TUBE:FRM:FRT:BAG 250L/300L 749-1412	£82.12	Add
040	750-0848	SPACER:.345 x.500 x 1.640 LG	£12.73	Add
041	783-04179B	CVR:BAG:HT:300L	N/A	POA
042	783-04180637	BRKT:HOOK:BAG 300L 783-04180	£41.36	Add
043	783-04622	BRKT:LATCH:MT:SW BAG 450/500	N/A	POA
044	783-04623	BRKT:MT:LATCH BAG 450/500	N/A	POA
045	783-04664	BRKT:U	N/A	POA
046	783-04834	PLT:END:RR DIS:500	N/A	POA
047	725-04655	HARN:500:BAG ASSIST:FSBX	£93.86	Add
