MTD010033

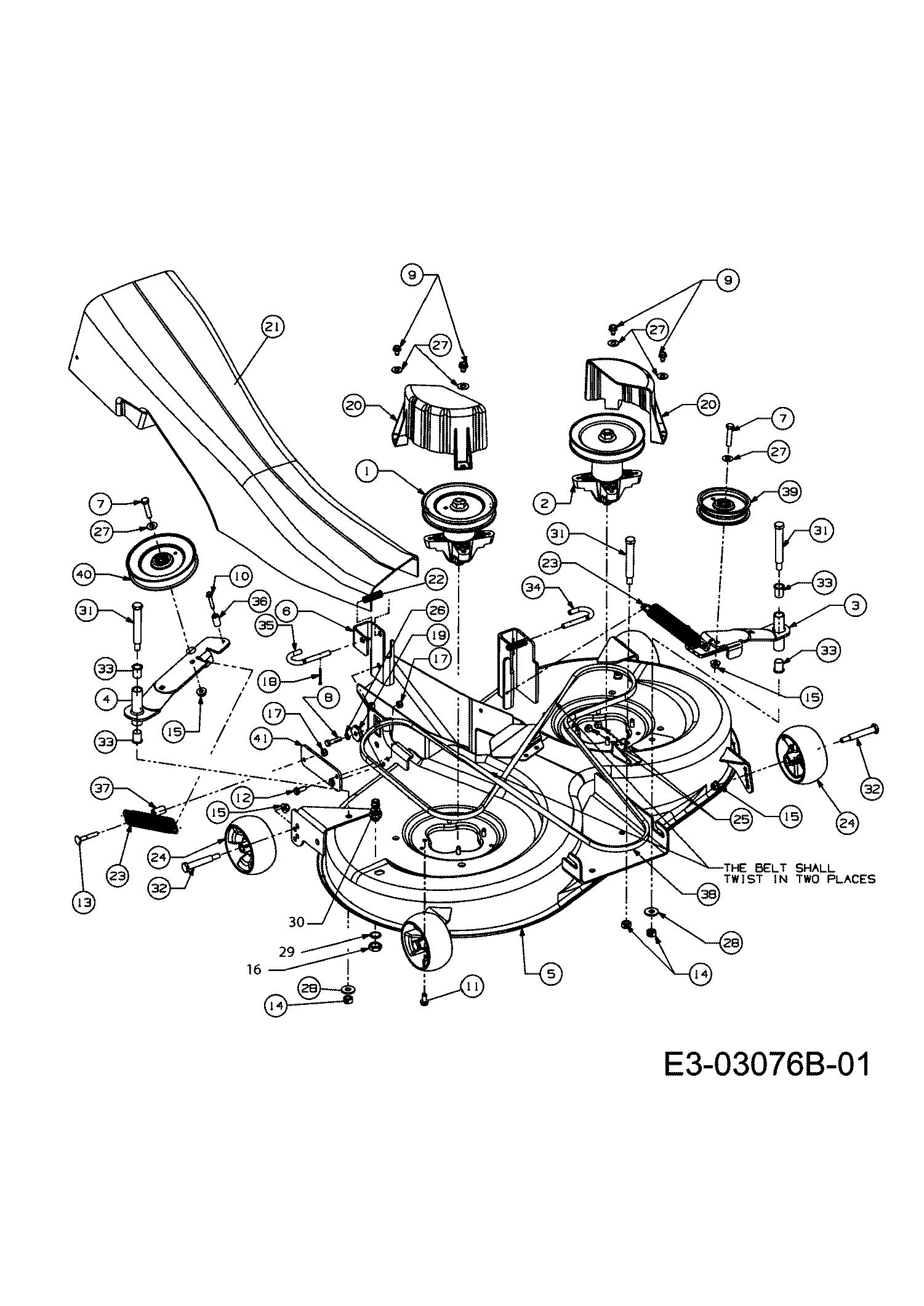

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD010033

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 918-04657A SPDL ASM V BELT PULLEY £132.94 Add
003 683-04058E-S KIT IDLER ARM WITH BELT GUIDE £79.39 Add
004 683-04061637 BRACKET IDLER ARM BLACK £28.32 Add
005 683-04330C-S DECK SHELL (ONLY) BLACK £915.93 Add
006 683-0596A637 BRKT ASM:DECK:HNGR ADJ 92/105 683-0596 £28.13 Add
007 710-0347 HEX SCR £3.72 Add
008 710-0528 SCREW (DNR) £3.55 Add
009 710-0607 SELF TAP SCREW £4.71 Add
010 710-0778 HEX WASHER HEAD SCREW £3.20 Add
011 710-1260A SCREW £4.00 Add
012 710-1681 HEX BOLT M8 X 20 DIN 933 (RED) £3.24 Add
013 710-1719 BOLT £4.89 Add
014 712-0290 NUT 7/16 CAD P/T LOCK TYPE 5 £2.78 Add
015 712-04065 NUT £4.02 Add
016 712-0641 NUT £6.47 Add
017 712-0692 HEX NUT £3.10 Add
018 714-0470 COTTER PIN £5.07 Add
019 717-04074 GEAR DECK ADJUSTMENT £11.11 Add
020 731-2538 L.H. DECK BELT GUARD £38.71 Add
021 731-2539B REAR CHUTE SHORT VERSION 731-2539A £99.06 Add
022 732-0306A SPACER £5.28 Add
023 732-04099 SPRING £12.82 Add
024 734-04155 WHEEL:DECK:5.0 DIA BALL £16.47 Add
025 735-0271A UTV TAILGATE GROMMET £9.24 Add
026 736-0119 LOCK WASHER 5/16 £3.33 Add
027 736-0300 WASHER £2.81 Add
028 736-04097A WASHER £3.33 Add
029 736-0760 WASHER £4.01 Add
030 737-04003D NOZ:DECK:WATER £19.14 Add
031 738-0476 SHOULDER SCREW £4.70 Add
032 738-3056 SHOULDER BOLT £12.94 Add
033 741-0591 FLANGE BEARING £3.44 Add
034 747-04116A ROD:HNDL:DECK REL .375 DIA 747-04116 £26.94 Add
035 747-1116 QUICK RELEASE PINS RH LONG £14.71 Add
036 750-04182 SPACER £4.38 Add
037 750-04195 SPACER Ò16 x Ò8 x 27LG DIN2391 £5.70 Add
038 754-04069 BELT N DECK £122.85 Add
039 756-04049A IDLER £47.10 Add
040 756-04050 IDLER PULLEY £38.38 Add
041 783-04255 BRKT:DECK:SPR 500 SERIES N/A POA
