MTD010028

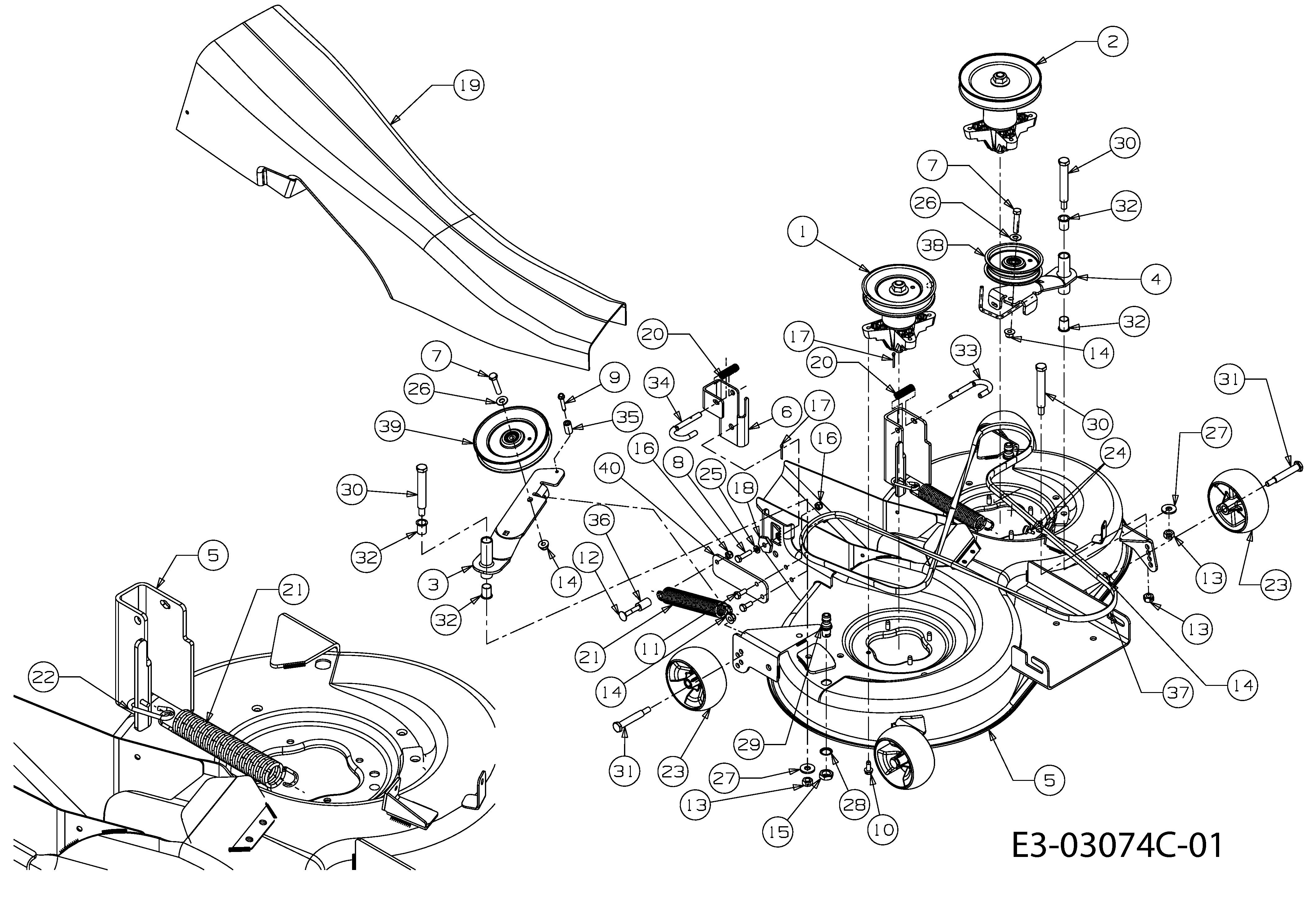

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD010028

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 618-04197B SPINDLE ASSY £151.86 Add
003 683-04061637 BRACKET IDLER ARM BLACK £28.32 Add
004 683-04072A BRKT ASM:IDLR:DECK 92cm N/A POA
005 683-04331A DECK ASM:RR DIS:92cm:WHL N/A POA
006 683-0596A637 BRKT ASM:DECK:HNGR ADJ 92/105 683-0596 £28.13 Add
007 710-0347 HEX SCR £3.72 Add
008 710-0528 SCREW (DNR) £3.55 Add
009 710-0778 HEX WASHER HEAD SCREW £3.20 Add
010 710-1260A SCREW £4.00 Add
011 710-1681 HEX BOLT M8 X 20 DIN 933 (RED) £3.24 Add
012 710-1719 BOLT £4.89 Add
013 712-0290 NUT 7/16 CAD P/T LOCK TYPE 5 £2.78 Add
014 712-04065 NUT £4.02 Add
015 712-0641 NUT £6.47 Add
016 712-0692 HEX NUT £3.10 Add
017 714-0115 COTTER PIN £3.42 Add
018 717-04074 GEAR DECK ADJUSTMENT £11.11 Add
019 731-2543B CHUTE 731-2543A £131.06 Add
020 732-0306A SPACER £5.28 Add
021 732-04099 SPRING £12.82 Add
022 732-04112 ROD:LINK:5mm DIA x 51 mm LG N/A POA
023 734-04155 WHEEL:DECK:5.0 DIA BALL £16.47 Add
024 735-0271A UTV TAILGATE GROMMET £9.24 Add
025 736-0119 LOCK WASHER 5/16 £3.33 Add
026 736-0300 WASHER £2.81 Add
027 736-04097A WASHER £3.33 Add
028 736-0760 WASHER £4.01 Add
029 737-04003D NOZ:DECK:WATER £19.14 Add
030 738-0476 SHOULDER SCREW £4.70 Add
031 738-3056 SHOULDER BOLT £12.94 Add
032 741-0591 FLANGE BEARING £3.44 Add
033 747-04116A ROD:HNDL:DECK REL .375 DIA 747-04116 £26.94 Add
034 747-1116 QUICK RELEASE PINS RH LONG £14.71 Add
035 750-04182 SPACER £4.38 Add
036 750-04195 SPACER Ò16 x Ò8 x 27LG DIN2391 £5.70 Add
037 754-04075 V BELT (500 E DECK) £108.10 Add
038 756-04049A IDLER £47.10 Add
039 756-04050 IDLER PULLEY £38.38 Add
040 783-04255 BRKT:DECK:SPR 500 SERIES N/A POA
