MTD015076

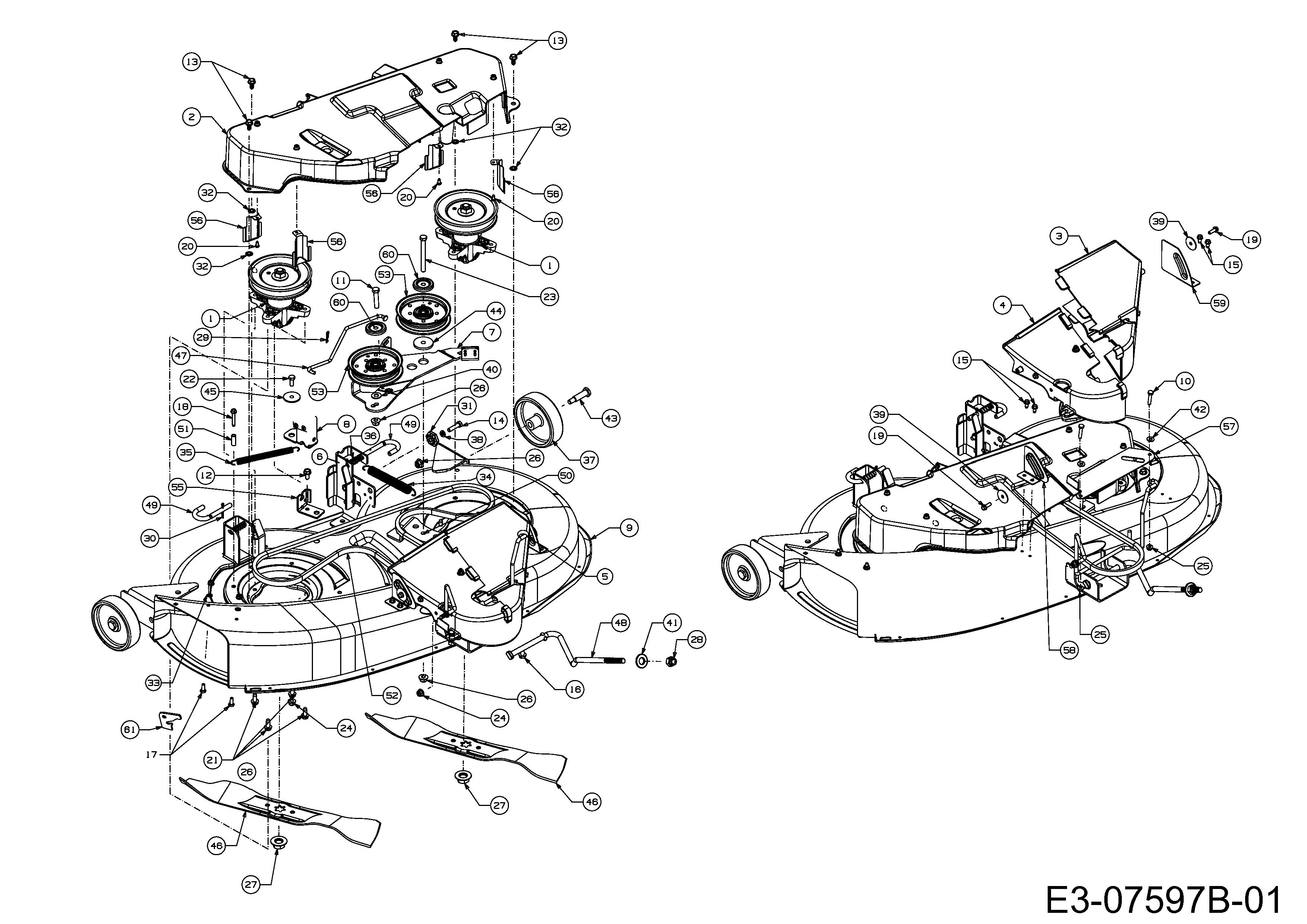

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04474B	SPINDLE 5.75 INCH DIA	£132.96	Add
002	631-04312A	COVER ASM:DECK 38"	£66.24	Add
003	631-04342	COVER ASM LEFT	£89.28	Add
004	631-04343	CVR ASM:RIGHT	£89.28	Add
005	647-04163	ROD ASM KEEPER 42" FRENCH COVR	£78.57	Add
006	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
007	983-04138B	BRAKE ASSEMBLY (DECK 42")	£27.67	Add
008	983-04167	BRAKE ASM:DECK 42" 683-04167	£23.95	Add
009	683-04264B	DECK ASM:SD:38" w/WHL BRKTS	N/A	POA
010	710-0106	HHCS:1/4-20:1.25:GR5:SPEC	£3.95	Add
011	710-0347	HEX SCR	£3.72	Add
012	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
013	710-05045A	SCR:TT:5/16-18:.750:HXINDWSH	£6.24	Add
014	710-0528	SCREW (DNR)	£3.55	Add
015	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
016	710-0604A	SCREW	£3.62	Add
017	710-0751	BOLT 069	£3.39	Add
018	710-0778	HEX WASHER HEAD SCREW	£3.20	Add
019	710-0895	SCR:HL:1/4-10:0.750:HXINDWSH	£3.51	Add
020	710-0919	SCREW TAPP	£3.07	Add
021	710-1260A	SCREW	£4.00	Add
022	710-3008	HEX BOLT	£3.03	Add
023	710-3085	HHCS 3/8 16 3.50 GR5 STD	£3.55	Add
024	712-04063	FLANGED NUT	£4.20	Add
025	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
026	712-04065	NUT	£4.02	Add
027	712-05134	BLADE NUT	£3.81	Add
028	712-04243	NUT	£5.00	Add
029	714-0104	PIN INTERNAL COTTER	£2.78	Add
030	714-0470	COTTER PIN	£5.07	Add
031	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
032	726-0201	SPEED NUT	£3.10	Add
033	726-0233	NUT:PUSH:.25 ID X .50 OD	£3.58	Add
034	732-04280B	EXT SPRING	£18.09	Add
035	732-04287	EXT SPRING	£16.41	Add
036	732-04652	SPR:COMP:.535 OD x 1.751 LG	£8.11	Add
037	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
038	736-0119	LOCK WASHER 5/16	£3.33	Add
039	736-0211	WASHER:FLAT:.285 x 1.250 x.060	£3.91	Add
040	736-0300	WASHER	£2.81	Add
041	736-0317	BELLE WASHER	£8.58	Add
042	736-0463	WASH:FLAT: .250 x .630 x .052	£3.31	Add
043	738-0373	AXLE BOLT	£6.84	Add
044	738-04162C	SPACER	£4.64	Add
045	738-04166	SPACER	£5.21	Add
046	742-0610A	BLADE 19.38" FOR 38" DECK	£43.75	Add
047	747-04381	BRAKE ROD 38"	£18.78	Add
048	747-05061	ROD:DECK 38" EURO COVER	£32.18	Add
049	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
050	750-04446	SPCR:3/8 ID x.68 OD x 1.46 LG	£7.37	Add
051	750-0566A	SPACER	£7.75	Add
052	754-04198C	BELT:V TYP:A SELECTION X 88.80 754-04198B	£115.10	Add
053	753-08171	KIT IDLER PULLEY	£37.57	Add
054	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
055	783-04740	BRKT:CBL:DECK ENGAGE (OBSOLETE)	N/A
056	783-05497	BRKT:KEEPR:BELT	£24.51	Add
057	783-06276	BRKT:CVR:FRENCH	N/A	POA
058	783-06283	PLT:PIVOT:FRNCH CVR:REIGHT	£74.24	Add
059	783-06284	PLT:PIVOT:FRENCH CVR:LEFT	£30.07	Add
060	783-07236	PULLEY CAP	£10.42	Add
061	783-1025	STOP:CHUTE	£7.30	Add
