MTD011607

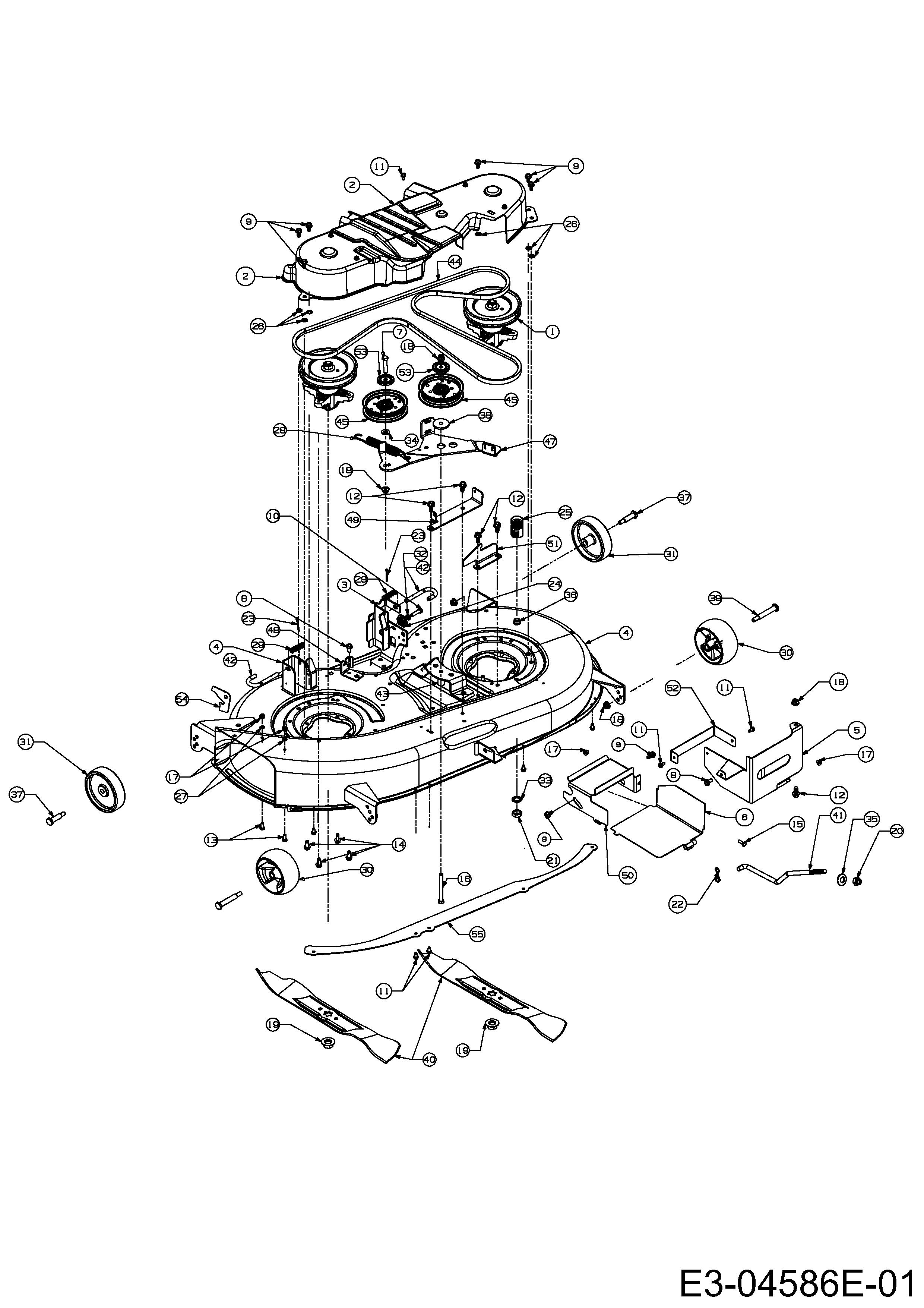

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04456B	SPINDLE ASSY PULLEY 6.3 DIA	£131.19	Add
002	631-04313A	CVR ASM:DECK:42"	£69.46	Add
003	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
004	683-04497	DECK ASM:SD:42	N/A	POA
005	683-04541	CVR ASM:PTO:CE	N/A	POA
006	683-04548A	CVR ASM:42:CE (PTO LOWER)	N/A	POA
007	710-0347	HEX SCR	£3.72	Add
008	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
009	710-05045A	SCR:TT:5/16-18:.750:HXINDWSH	£6.24	Add
010	710-0528	SCREW (DNR)	£3.55	Add
011	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
012	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
013	710-0751	BOLT 069	£3.39	Add
014	710-1260A	SCREW	£4.00	Add
015	710-3015	SCREW HEX CAP	£3.33	Add
016	710-3085	HHCS 3/8 16 3.50 GR5 STD	£3.55	Add
017	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
018	712-04065	NUT	£4.02	Add
019	712-05134	BLADE NUT	£3.81	Add
020	712-04243	NUT	£5.00	Add
021	712-0641	NUT	£6.47	Add
022	714-04043	COTTER PIN	£4.29	Add
023	714-0470	COTTER PIN	£5.07	Add
024	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
025	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
026	726-0201	SPEED NUT	£3.10	Add
027	726-0233	NUT:PUSH:.25 ID X .50 OD	£3.58	Add
028	732-04247	EXTENSION SPRING	£15.24	Add
029	732-04652	SPR:COMP:.535 OD x 1.751 LG	£8.11	Add
030	734-04155	WHEEL:DECK:5.0 DIA BALL	£16.47	Add
031	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
032	736-0119	LOCK WASHER 5/16	£3.33	Add
033	736-0225	WASHER (RED)	£5.32	Add
034	736-0300	WASHER	£2.81	Add
035	736-0317	BELLE WASHER	£8.58	Add
036	737-04003D	NOZ:DECK:WATER	£19.14	Add
037	738-0373	AXLE BOLT	£6.84	Add
038	738-04162C	SPACER	£4.64	Add
039	738-3056	SHOULDER BOLT	£12.94	Add
040	742-0616A	BLADE 21.23 INCH FOR 42 INCH DECK	£43.90	Add
041	747-05072	ROD:DECK:42" FRENCH COVER	£63.80	Add
042	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
043	750-04446	SPCR:3/8 ID x.68 OD x 1.46 LG	£7.37	Add
044	754-04060C	BELT	£62.72	Add
045	753-08171	KIT IDLER PULLEY	£37.57	Add
046	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
047	783-04491D	BRKT:IDLR:PIVOT	N/A	POA
048	783-04740	BRKT:CBL:DECK ENGAGE (OBSOLETE)	N/A
049	783-06275	BRKT:HINGE:42	N/A	POA
050	783-06334	COVER:TOP:42" CE	N/A	POA
051	783-06340	BRKT:STOP:CRG:42"	N/A	POA
052	783-06341	COVER BACK:42 CE	N/A	POA
053	783-07236	PULLEY CAP	£10.42	Add
054	783-1025	STOP:CHUTE	£7.30	Add
055	753-0884	KIT DECK SKIRT	£118.63	Add
