MTD011600

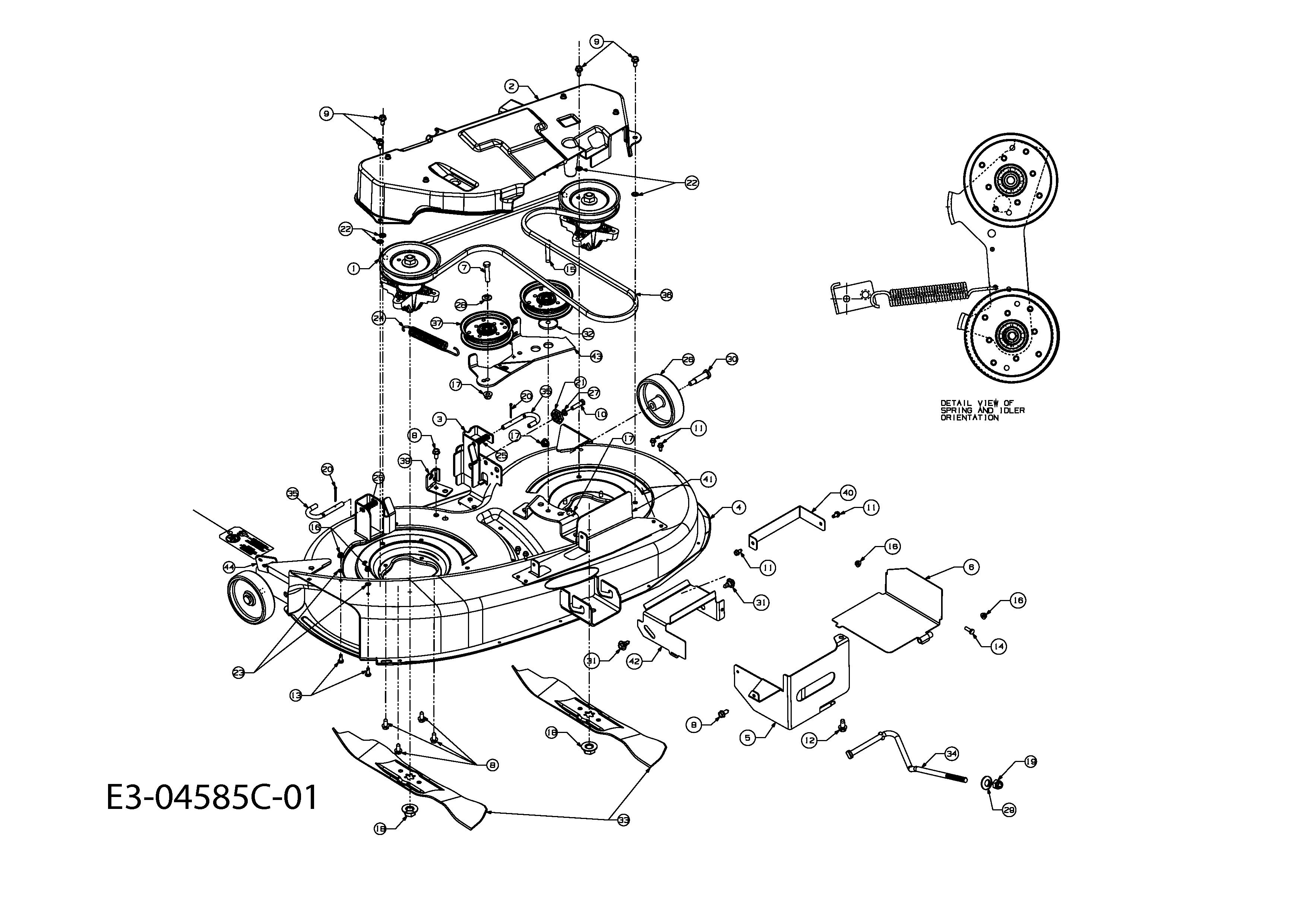

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04474B	SPINDLE 5.75 INCH DIA	£132.96	Add
002	631-04312	COVER 38" DECK	£63.42	Add
003	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
004	683-04264A	DECK ASM:SD:38" w/WHL BRKTS	N/A	POA
005	683-04541	CVR ASM:PTO:CE	N/A	POA
006	683-04548A	CVR ASM:42:CE (PTO LOWER)	N/A	POA
007	710-0347	HEX SCR	£3.72	Add
008	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
009	710-05045A	SCR:TT:5/16-18:.750:HXINDWSH	£6.24	Add
010	710-0528	SCREW (DNR)	£3.55	Add
011	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
012	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
013	710-0751	BOLT 069	£3.39	Add
014	710-3015	SCREW HEX CAP	£3.33	Add
015	710-3144-		N/A	POA
016	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
017	712-04065	NUT	£4.02	Add
018	712-05134	BLADE NUT	£3.81	Add
019	712-04243	NUT	£5.00	Add
020	714-0470	COTTER PIN	£5.07	Add
021	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
022	726-0201	SPEED NUT	£3.10	Add
023	726-0233	NUT:PUSH:.25 ID X .50 OD	£3.58	Add
024	732-04247	EXTENSION SPRING	£15.24	Add
025	732-04652	SPR:COMP:.535 OD x 1.751 LG	£8.11	Add
026	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
027	736-0119	LOCK WASHER 5/16	£3.33	Add
028	736-0300	WASHER	£2.81	Add
029	736-0317	BELLE WASHER	£8.58	Add
030	738-0373	AXLE BOLT	£6.84	Add
031	738-04091A	SCR:SHLDR:.43 x.29:TT:5/16-18	£5.45	Add
032	738-04162C	SPACER	£4.64	Add
033	742-0610A	BLADE 19.38" FOR 38" DECK	£43.75	Add
034	747-05061	ROD:DECK 38" EURO COVER	£32.18	Add
035	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
036	754-04198C	BELT:V TYP:A SELECTION X 88.80 754-04198B	£115.10	Add
037	753-08171	KIT IDLER PULLEY	£37.57	Add
038	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
039	783-04740	BRKT:CBL:DECK ENGAGE (OBSOLETE)	N/A
040	783-06341	COVER BACK:42 CE	N/A	POA
041	783-06364	BRKT:MNT:38 CE	N/A	POA
042	783-06376	COVER:RR:38 CE (BELT TOP)	N/A	POA
043	783-06388		N/A	POA
044	783-1025	STOP:CHUTE	£7.30	Add
