MTD011616

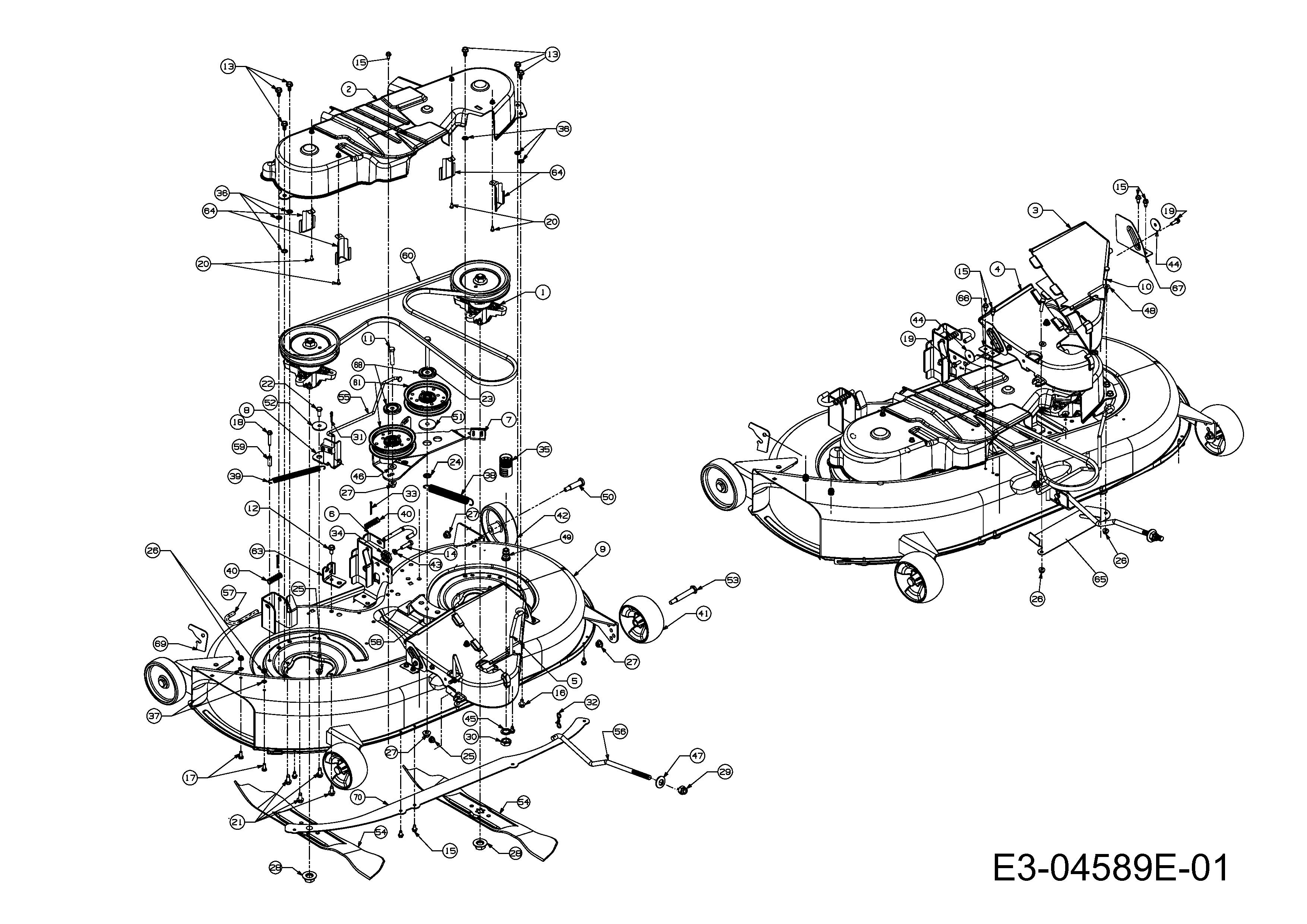

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04456B	SPINDLE ASSY PULLEY 6.3 DIA	£131.19	Add
002	631-04313A	CVR ASM:DECK:42"	£69.46	Add
003	631-04342	COVER ASM LEFT	£89.28	Add
004	631-04343	CVR ASM:RIGHT	£89.28	Add
005	647-04163	ROD ASM KEEPER 42" FRENCH COVR	£78.57	Add
006	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
007	683-04138B	BRAKE ASM:DECK:42"	£40.90	Add
008	983-04167	BRAKE ASM:DECK 42" 683-04167	£23.95	Add
009	683-04497	DECK ASM:SD:42	N/A	POA
010	710-0106	HHCS:1/4-20:1.25:GR5:SPEC	£3.95	Add
011	710-0347	HEX SCR	£3.72	Add
012	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
013	710-05045A	SCR:TT:5/16-18:.750:HXINDWSH	£6.24	Add
014	710-0528	SCREW (DNR)	£3.55	Add
015	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
016	710-0604A	SCREW	£3.62	Add
017	710-0751	BOLT 069	£3.39	Add
018	710-0778	HEX WASHER HEAD SCREW	£3.20	Add
019	710-0895	SCR:HL:1/4-10:0.750:HXINDWSH	£3.51	Add
020	710-0919	SCREW TAPP	£3.07	Add
021	710-1260A	SCREW	£4.00	Add
022	710-3008	HEX BOLT	£3.03	Add
023	710-3085	HHCS 3/8 16 3.50 GR5 STD	£3.55	Add
024	712-0229	NUT PUSH	£5.20	Add
025	712-04063	FLANGED NUT	£4.20	Add
026	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
027	712-04065	NUT	£4.02	Add
028	712-05134	BLADE NUT	£3.81	Add
029	712-04243	NUT	£5.00	Add
030	712-0641	NUT	£6.47	Add
031	714-0104	PIN INTERNAL COTTER	£2.78	Add
032	714-04043	COTTER PIN	£4.29	Add
033	714-0470	COTTER PIN	£5.07	Add
034	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
035	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
036	726-0201	SPEED NUT	£3.10	Add
037	726-0233	NUT:PUSH:.25 ID X .50 OD	£3.58	Add
038	732-04280B	EXT SPRING	£18.09	Add
039	732-04287	EXT SPRING	£16.41	Add
040	732-04652	SPR:COMP:.535 OD x 1.751 LG	£8.11	Add
041	734-04155	WHEEL:DECK:5.0 DIA BALL	£16.47	Add
042	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
043	736-0119	LOCK WASHER 5/16	£3.33	Add
044	736-0211	WASHER:FLAT:.285 x 1.250 x.060	£3.91	Add
045	736-0225	WASHER (RED)	£5.32	Add
046	736-0300	WASHER	£2.81	Add
047	736-0317	BELLE WASHER	£8.58	Add
048	736-0463	WASH:FLAT: .250 x .630 x .052	£3.31	Add
049	737-04003D	NOZ:DECK:WATER	£19.14	Add
050	738-0373	AXLE BOLT	£6.84	Add
051	738-04162C	SPACER	£4.64	Add
052	738-04166	SPACER	£5.21	Add
053	738-3056	SHOULDER BOLT	£12.94	Add
054	742-0616A	BLADE 21.23 INCH FOR 42 INCH DECK	£43.90	Add
055	747-04379A	BRAKE ROD	£25.27	Add
056	747-05072	ROD:DECK:42" FRENCH COVER	£63.80	Add
057	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
058	750-04446	SPCR:3/8 ID x.68 OD x 1.46 LG	£7.37	Add
059	750-0566A	SPACER	£7.75	Add
060	754-04060C	BELT	£62.72	Add
061	753-08171	KIT IDLER PULLEY	£37.57	Add
062	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
063	783-04740	BRKT:CBL:DECK ENGAGE (OBSOLETE)	N/A
064	783-05497	BRKT:KEEPR:BELT	£24.51	Add
065	783-06276637	COVER-HARD TOP	£55.45	Add
066	783-06283	PLT:PIVOT:FRNCH CVR:REIGHT	£74.24	Add
067	783-06284	PLT:PIVOT:FRENCH CVR:LEFT	£30.07	Add
068	783-07236	PULLEY CAP	£10.42	Add
069	783-1025	STOP:CHUTE	£7.30	Add
070	753-0884	KIT DECK SKIRT	£118.63	Add
