MTD008885

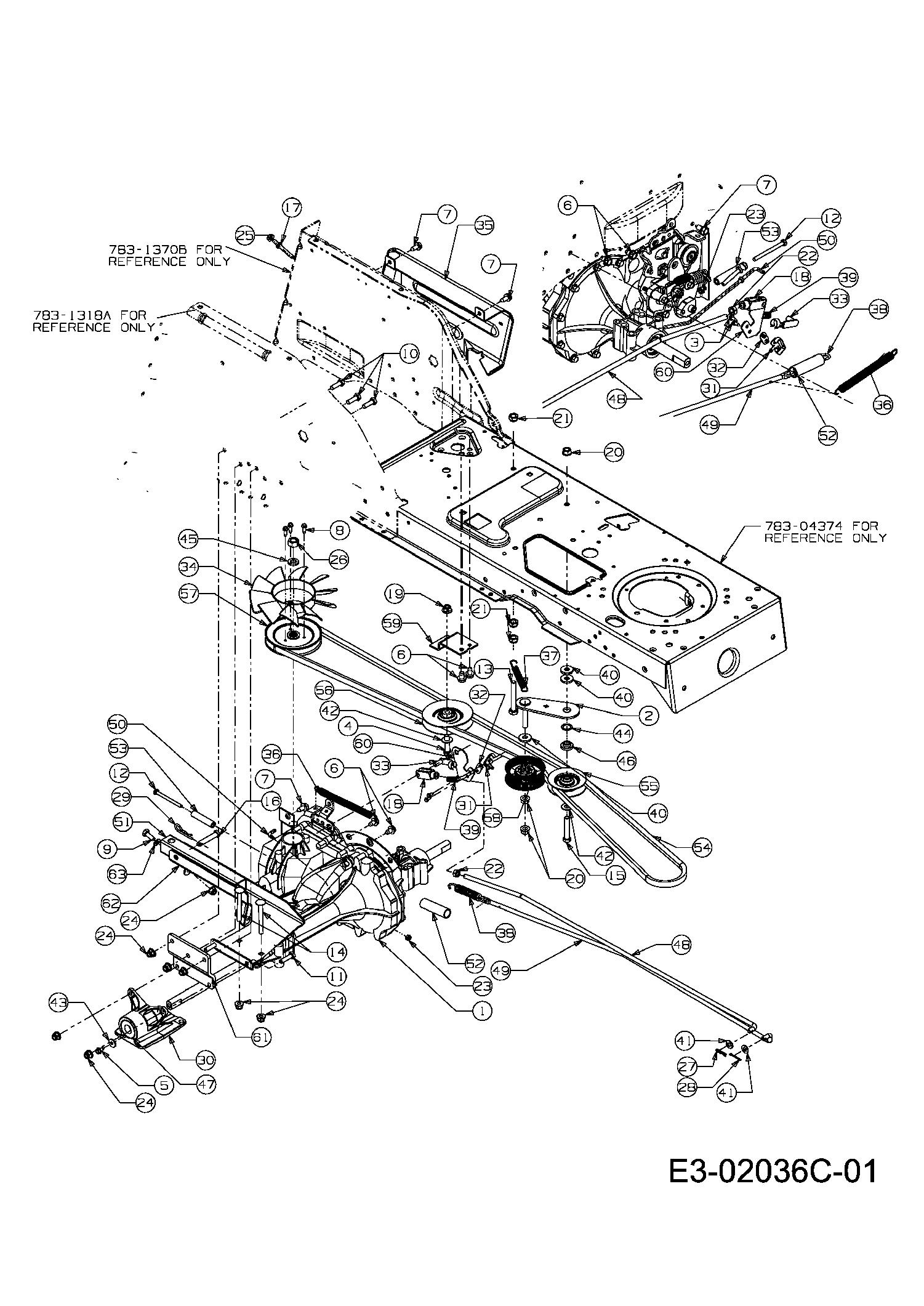

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-0389A	NO LONGER AVAILABLE	N/A	POA
002	683-0604A-Z	BRKT ASM:IDLR:DBL 683-0604A	£16.61	Add
003	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add
004	710-0344	NO LONGER AVAILABLE	N/A	POA
005	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
006	710-0607	SELF TAP SCREW	£4.71	Add
007	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add
008	710-1189	NO LONGER AVAILABLE	N/A	POA
009	710-1681	HEX BOLT M8 X 20 DIN 933 (RED)	£3.24	Add
010	710-1682	SCR:M8-1:25.00 LG:DIN 933	£2.98	Add
011	710-1683	SCR:M8-1:30.00 LG:DIN 933	£3.20	Add
012	710-1766	SCREW HHCS:M6-1:70.00:DIN 931	£4.50	Add
013	710-1771	BOLT:HEX M10-1.5:70 GR5	£4.50	Add
014	710-1895	SCR:CARR:M8-1.25:75LG DIN 603	£3.70	Add
015	710-3144	SCREW	£3.28	Add
016	711-0679A	CLEVIS PIN	£6.70	Add
017	711-0747	PIN:GDE:.250 DIA x 1.68 LG	£4.62	Add
018	711-1407	LINK	£14.01	Add
019	712-04065	NUT	£4.02	Add
020	712-0431	NUT	£3.20	Add
021	712-0637	NUT:M10x1.5 DIN 985 NYLOCK	£5.66	Add
022	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
023	712-0691	HEX NUT M6 DIN 985	£2.66	Add
024	712-0714	NUT:FLGLK:M8-1.25 DIN 6926	£3.80	Add
025	712-3027	LOCK NUT	£2.79	Add
026	712-3066	NUT:HEX:1/2-20 GR5	£3.31	Add
027	714-0104	PIN INTERNAL COTTER	£2.78	Add
028	714-0111	COTTER PIN	£3.20	Add
029	714-0147	COTTER PIN	£3.51	Add
030	719-0534	SUPPORTING BRACKET	£63.26	Add
031	725-1773	SW:SPR:SHORT	£7.20	Add
032	726-0320	INSULATING PLATE	£2.97	Add
033	726-0457	CLIP	£9.50	Add
034	731-1449A	FAN:BLADE:10	£22.24	Add
035	731-2542A	COVER	£11.52	Add
036	732-0308	EXTENSION SPRING	£10.04	Add
037	732-0429A	SPRING EXTENSION	£8.73	Add
038	732-0716D	SPRING EXTENSION	£14.42	Add
039	732-0891A	SPRING: BRAKE	£5.81	Add
040	736-0258	WASHER:FLAT:.385 X 1.0 X.135	£3.47	Add
041	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add
042	736-0300	WASHER	£2.81	Add
043	736-0685	WASHER	£3.26	Add
044	736-0773	WASH:FLAT:16x22x1 DIN 988	£2.93	Add
045	736-0921	WASHER:LOCK:1/2:REGULAR DUTY	£2.98	Add
046	738-0372B	COLLAR	£5.64	Add
047	741-0998	BRG:BALL:19mm x 40mm OD x 12mm	£30.41	Add
048	747-1301	ROD:CONT:HYDRO 500 LG	£24.00	Add
049	747-1302B	BRAKE ROD HYDRO 500 LONG	£26.31	Add
050	747-1315B	ROD:HYDRO:BYPASS 500 LWB	£18.66	Add
051	749-04013B-S	HITCH TUBE BLACK	£32.24	Add
052	750-0802	SPCR:.640 ID X .76 OD X2.63 LG	£3.20	Add
053	750-1329	SPCR:.275 ID x.50 OD x 2.28	£4.41	Add
054	754-0125A	BELT	£122.85	Add
055	756-05234	IDLER PULLEY 2" DIA	£25.60	Add
056	756-0487	PULLEY	£37.22	Add
057	756-1052	PULLEY TRANS 4.50 DIA	£33.76	Add
058	756-3054A	PULLEY IDLER	£72.08	Add
059	783-05340	BRKT:PUL:500 HYDRO	N/A	POA
060	783-0786-Z	BRKT:ACTR:SW EURO 783-0786	£8.13	Add
061	783-1371	BRKT:MT:HYDRO	£17.58	Add
062	783-1372	HITCH BRACKET	£44.91	Add
063	736-0700	FLAT WASHER	£2.63	Add
