MTD015044

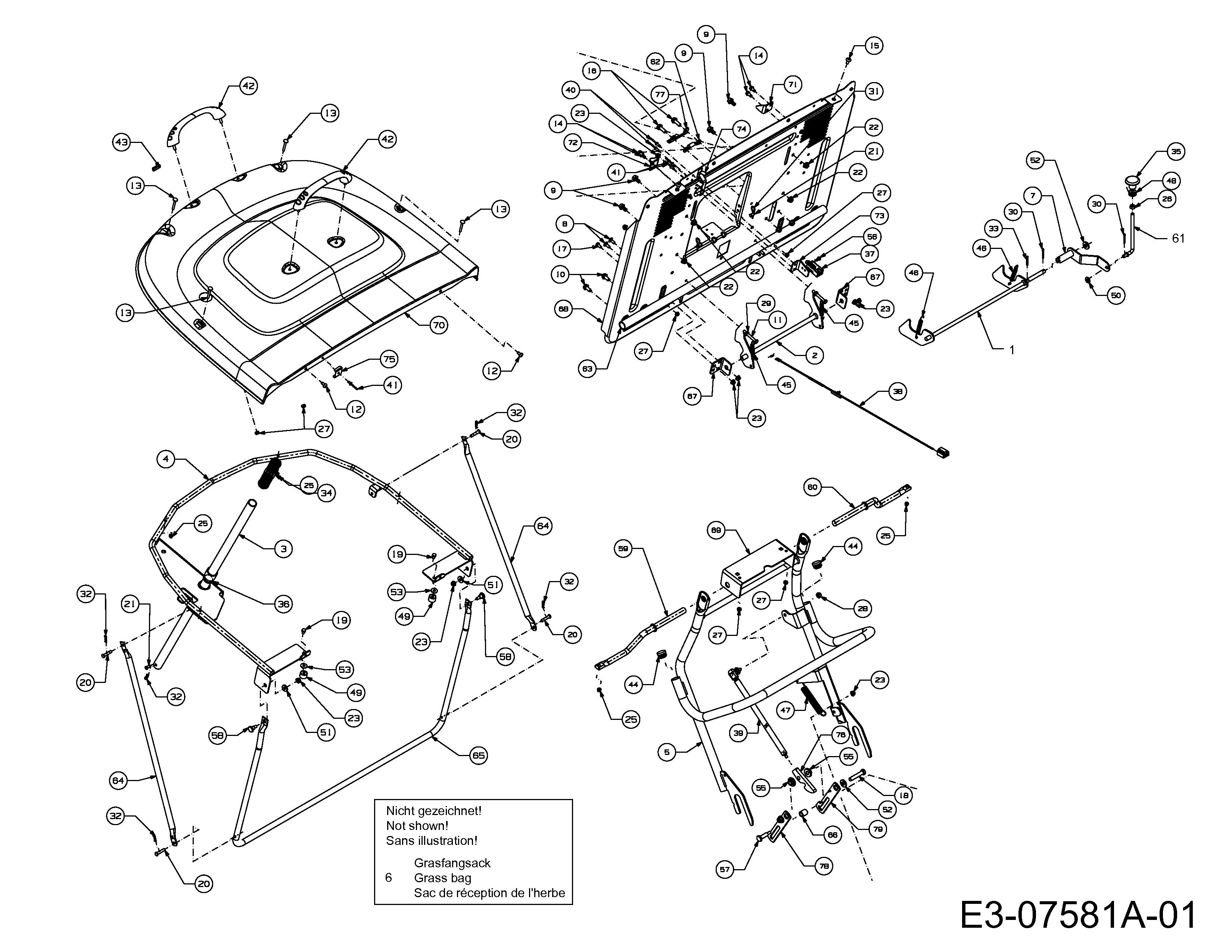

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	647-04219	LATCH ASM:BAG 250L/350L	N/A	POA
002	647-04277A		£34.25	Add
003	649-0138B		N/A	POA
004	649-04090A		N/A	POA
005	649-04108		N/A	POA
006	664-04148A	GRSBG ASM:RR DIS:300 L 500	£149.90	Add
007	683-04669-Z	LVLR ASM:LATCH CRANK:YELLOW	£30.09	Add
008	710-0134	BOLT	£3.03	Add
009	710-04049	SCREW	£4.84	Add
010	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
011	710-0501	HHCS:1/4-20:2.0:GR5:STD	£3.91	Add
012	710-05070	SCR:TT:1/4-20:.5:PANTRXI:BLK	£4.18	Add
013	710-05448	BOLT:CRG:5mm x 40.0 LG	£3.39	Add
014	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
015	710-1017	TAP SCREW	£2.97	Add
016	710-1238	SCREW	£3.20	Add
017	710-1691	HEX. SCREW:M6X12 DIN 933 8.8	£4.11	Add
018	710-3144	SCREW	£3.28	Add
019	710-3209	HHCS:M6-1.0:10MM:GR8.8:STD	£4.52	Add
020	711-04138	PIN	£4.11	Add
021	711-0701	CLEVIS PIN	£4.89	Add
022	712-04063	FLANGED NUT	£4.20	Add
023	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
024	712-04065	NUT	£4.02	Add
025	712-0642	NUT FLGLK M5 0.8	£2.68	Add
026	712-0690	NUT:HEX:M8-1.25 DIN 934	£2.72	Add
027	712-0691	HEX NUT M6 DIN 985	£2.66	Add
028	712-0692	HEX NUT	£3.10	Add
029	712-3006	NUT	£2.77	Add
030	714-0115	COTTER PIN	£3.42	Add
031	714-0145	R CLIP	£2.78	Add
032	714-04033	PIN:COT:INT .072 x.92 LG	£2.77	Add
033	715-0120	PIN:ROLL:3/16 DIA x 1.1 LG 715-0150	£8.67	Add
034	720-0204	GRIP:1.0 ID x 4.7 LG	£12.60	Add
035	720-04164	KNOB:SHFT	£11.16	Add
036	721-04491	O-RING:.9375 ID x .139 DIA	£3.41	Add
037	725-04363	SWITCH	£18.57	Add
038	725-05260	HARN ASM:500:BAG PRESENT	£17.07	Add
039	727-04370	DAMPER	£46.89	Add
040	728-0123	POP RIVET 3/16 DIA x.450:STY1	£4.23	Add
041	728-04000	RIV:POP:.188 DIA x .300 L	£4.64	Add
042	731-04578	HANDLE	£9.37	Add
043	731-051181	EDGE GUARD 731-0511	£32.27	Add
044	731-07972	CAP:TUBE:SUPT 300L/250L BAG	£3.53	Add
045	732-0264	EXTENSION SPRING	£10.47	Add
046	732-04488	SPRING:EXT:.38 OD x 3.25 LG	£16.58	Add
047	732-04855	SPR:EXTN:.67 DIA X 5.50 LG	£7.75	Add
048	735-04093	GROM:RUBR:9x22x12	£9.07	Add
049	735-04121	BMPR:	£22.65	Add
050	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add
051	736-3000	WASH:FLAT:.250x.750x.119	£4.13	Add
052	736-3004	FLAT WASHER	£2.77	Add
053	736-3090	FL.WASHER:.260 X .720 X .060	£3.11	Add
055	738-0372B	COLLAR	£5.64	Add
056	738-04237A	SCR:SHLDR:T:#10-32:.500	£3.44	Add
057	738-0572	SHOULDER BOLT	£8.74	Add
058	738-0974	SCR:SHLDR:.375x.380:1/4-20	£9.24	Add
059	747-05345	ROD:PIVOT:RH:BAG 300L	£15.59	Add
060	747-05354	ROD:PIVOT:LH:BAG 300L	£15.59	Add
061	747-05432	LVR:HANDLE	£12.56	Add
062	747-05434A		N/A	POA
063	749-04696A	TUBE:PIVOT:BAG:250L/300L	£17.98	Add
064	749-04729	TUBE:SUPT:CROSS:GRSBG 250/300	N/A	POA
065	749-04730	TUBE:FRM:FRT:BAG 250L/300L	N/A	POA
066	750-05533	SPCR:16mm O.D.:10mm I.D.	£5.74	Add
067	783-04623A		N/A	POA
068	783-06697	PLT:END:RR DIS:500	N/A	POA
069	783-06719	BRKT:PIVOT:BAG	N/A	POA
070	783-06720716	BOX TOP YELLOW	£207.53	Add
071	783-06795	BRKT:ELB:LHS	£10.61	Add
072	783-06796	BRKT:ELB:RHS	£10.61	Add
073	783-06812	BRKT:SW:MNT	£10.13	Add
074	783-06813	BRKT:SW:STRIKER	£9.37	Add
075	783-06876	PLT:WEAR	£3.41	Add
076	783-06919	BRKT:HOOK	£28.31	Add
077	783-06925		£5.91	Add
078	783-06926	BRKT:GDE:CYL w/DTNT	£11.10	Add
079	783-06928	BRKT:GDE:CYL w/DTNT	£10.62	Add
