MTD017984

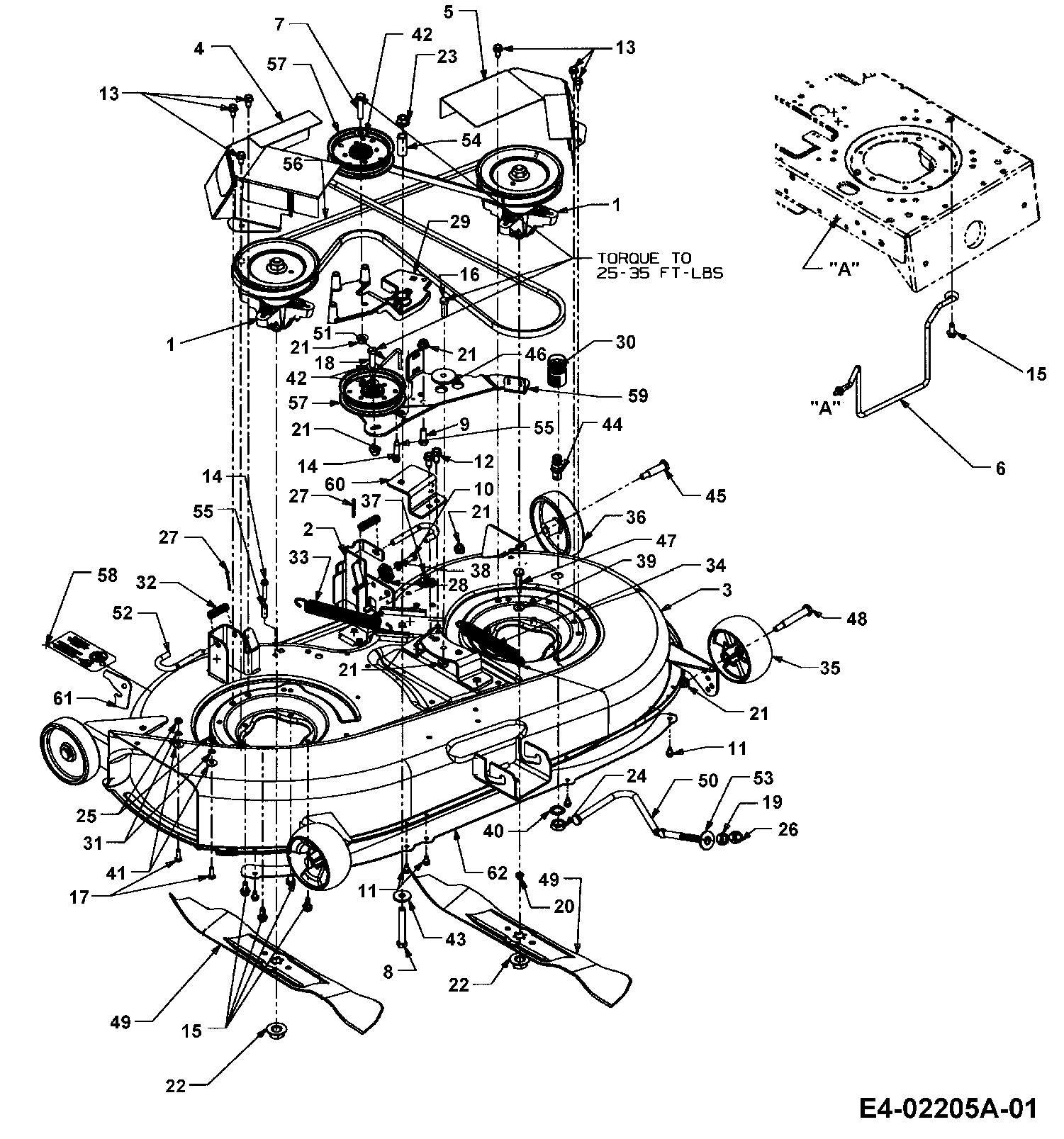

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04456B	SPINDLE ASSY PULLEY 6.3 DIA	£131.19	Add
002	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
003	683-04262		N/A	POA
004	683-04275	CVR ASM:RH 42" DECK	N/A	POA
005	683-04276	CVR ASM:LH 42" DECK	N/A	POA
006	683-04443	ROD ASM:KEEPR:BELT 42":PAINT	N/A	POA
007	710-0347	HEX SCR	£3.72	Add
008	710-0510	HHCS:7/16-20:3.00:GR5:STD	£4.39	Add
009	710-0514	HEX BOLT	£3.81	Add
010	710-0528	SCREW (DNR)	£3.55	Add
011	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
012	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
013	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add
014	710-0778	HEX WASHER HEAD SCREW	£3.20	Add
015	710-1260A	SCREW	£4.00	Add
016	710-3005	BOLT	£3.24	Add
017	710-3015	SCREW HEX CAP	£3.33	Add
018	710-3144	SCREW	£3.28	Add
019	712-0206	NUT	£3.42	Add
020	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
021	712-04065	NUT	£4.02	Add
022	712-05134	BLADE NUT	£3.81	Add
023	712-0459	LOCK NUT	£4.59	Add
024	712-0641	NUT	£6.47	Add
025	712-3006	NUT	£2.77	Add
026	712-3083	NUT	£2.79	Add
027	714-0470	COTTER PIN	£5.07	Add
028	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
029	719-04233	BRACKET-IDLER:42"	£69.98	Add
030	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
031	726-0233	NUT:PUSH:.25 ID X .50 OD	£3.58	Add
032	732-0306A	SPACER	£5.28	Add
033	732-04391	SPRING-EXTENSION:.94 ODx7.57LG	£22.29	Add
034	732-0459C	EXTENSION SPRING	£18.91	Add
035	734-04155	WHEEL:DECK:5.0 DIA BALL	£16.47	Add
036	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
037	735-0271A	UTV TAILGATE GROMMET	£9.24	Add
038	736-0119	LOCK WASHER 5/16	£3.33	Add
039	736-0173	WASH:FL:.28ID:.74OD:.063	£3.31	Add
040	736-0225	WASHER (RED)	£5.32	Add
041	736-0270	BELL WASHER	£3.91	Add
042	736-0300	WASHER	£2.81	Add
043	736-0322	FI-WASH	£8.68	Add
044	737-04003D	NOZ:DECK:WATER	£19.14	Add
045	738-0373	AXLE BOLT	£6.84	Add
046	738-04162C	SPACER	£4.64	Add
047	738-04272	Screw	£11.22	Add
048	738-3056	SHOULDER BOLT	£12.94	Add
049	742-0616A	BLADE 21.23 INCH FOR 42 INCH DECK	£43.90	Add
050	747-04269A	ROD:DECK:FRNT ADJ .4480" DIA	£22.22	Add
051	747-04530	ROD KEEPER	£19.05	Add
052	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
053	748-04069	PIVOT CUP	£4.12	Add
054	750-04637B	SPACER:.455 IDx.697 OD x 1.585	£14.20	Add
055	750-0566A	SPACER	£7.75	Add
056	754-04045	BELT (DECK)	£86.89	Add
057	753-08171	KIT IDLER PULLEY	£37.57	Add
058	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
059	783-04491D	BRKT:IDLR:PIVOT	N/A	POA
060	783-05490	BRACKET:SUPPORT 42"	£80.12	Add
061	783-1025	STOP:CHUTE	£7.30	Add
062	753-0884	KIT DECK SKIRT	£118.63	Add
