MTD015058

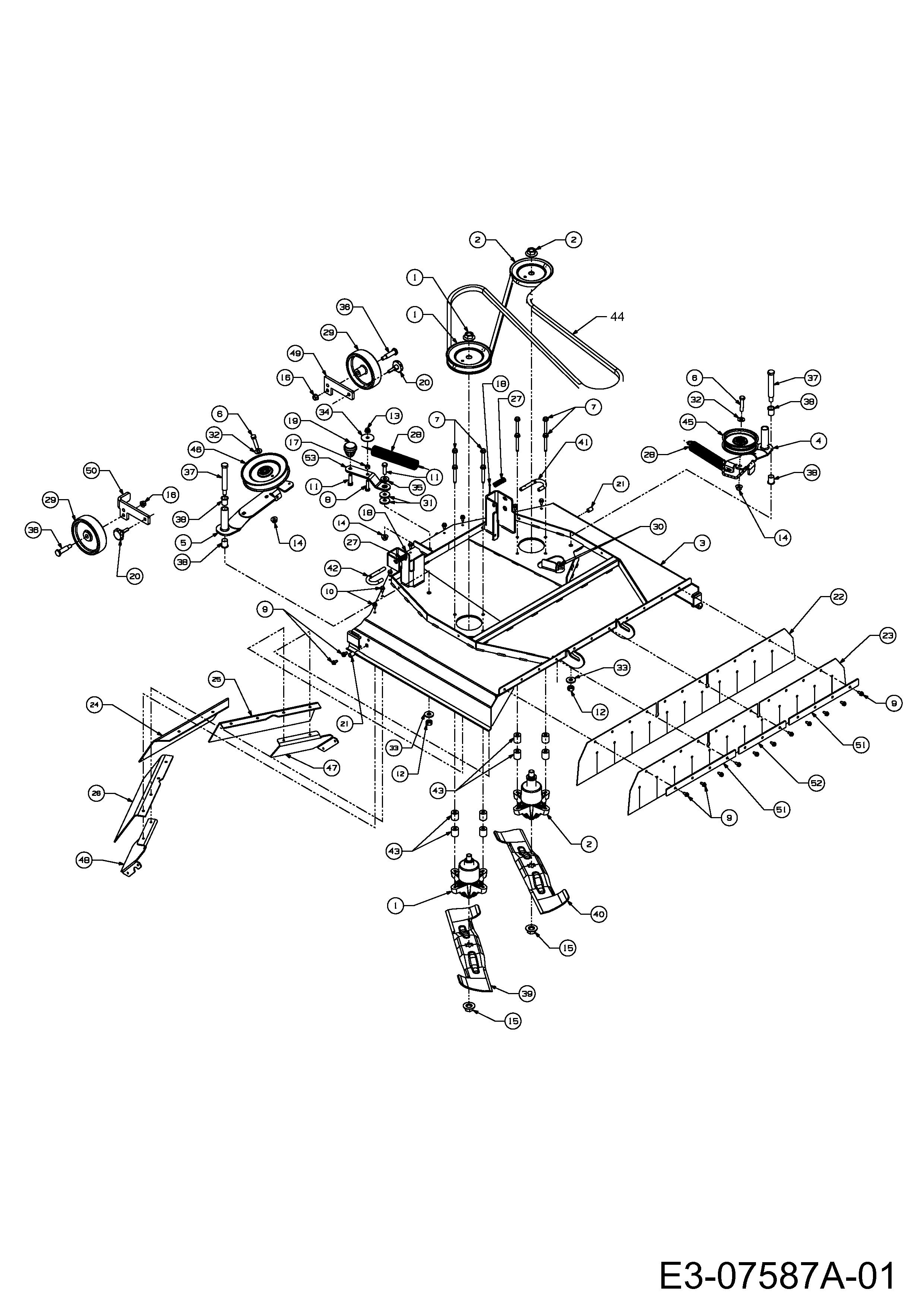

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04197B	SPINDLE ASSY	£151.86	Add
002	918-0409C	KNIFE SHAFT ASSEMBLY PULLEY 5.39 DIA	£150.30	Add
003	683-04741		N/A	POA
004	683-04776		N/A	POA
005	683-04777		N/A	POA
006	710-0347	HEX SCR	£3.72	Add
007	710-04389	SCREW:TT:5/16-18:2.25HXINDWSH	£2.97	Add
008	710-0528	SCREW (DNR)	£3.55	Add
009	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
010	710-1652	SCR:TT:1/4-20 x.625:HXINDWH	£4.25	Add
011	710-3005	BOLT	£3.24	Add
012	712-0290	NUT 7/16 CAD P/T LOCK TYPE 5	£2.78	Add
013	712-04063	FLANGED NUT	£4.20	Add
014	712-04065	NUT	£4.02	Add
015	712-05134	BLADE NUT	£3.81	Add
016	712-0431	NUT	£3.20	Add
017	712-3010	NUT 5/16 x 18	£2.77	Add
018	714-0115	COTTER PIN	£3.42	Add
019	720-0232	KNOB:SHFT:1.60 OD X 1.56	£6.72	Add
020	720-04201	KNOB:M8-1.25 x 25	£10.03	Add
021	728-04069	RIV NUT:M8-1.25	£3.31	Add
022	731-08803	DFL:FRT:RUBR:I-DECK	£29.33	Add
023	731-08809	DFL:FRT:RUBR:I-DECK	£29.33	Add
024	731-08878	DFL:REAR:RUBR:I-DECK	£23.89	Add
025	731-08880	DFL:REAR:RUBR:I-DECK:LS	£24.91	Add
026	731-08881	DFL:REAR:RUBR:I-DECK:RS	£26.31	Add
027	732-0306A	SPACER	£5.28	Add
028	732-04099	SPRING	£12.82	Add
029	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
030	735-0271A	UTV TAILGATE GROMMET	£9.24	Add
031	736-0247	F.I. WASH	£8.70	Add
032	736-0300	WASHER	£2.81	Add
033	736-04097A	WASHER	£3.33	Add
034	736-0430	WASHER	£4.22	Add
035	738-0372B	COLLAR	£5.64	Add
036	738-0373	AXLE BOLT	£6.84	Add
037	738-0476	SHOULDER SCREW	£4.70	Add
038	741-0591	FLANGE BEARING	£3.44	Add
039	742-04160	BLADE:RH:18.40 LG:STAR BAG	£32.24	Add
040	742-04161	BLADE:LH:18.40:STAR BAG	£32.24	Add
041	747-04116A	ROD:HNDL:DECK REL .375 DIA 747-04116	£26.94	Add
042	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
043	750-04297A	SPACER:.875x.320x1.00	£11.29	Add
044	754-04069	BELT N DECK	£122.85	Add
045	756-04049A	IDLER	£47.10	Add
046	756-04050	IDLER PULLEY	£38.38	Add
047	783-07312		N/A	POA
048	783-07313		N/A	POA
049	783-07330	BRKT:WHEEL:I-DECK LS	N/A	POA
050	783-07331	BRKT:WHL:I-DECK RS	£30.93	Add
051	783-07332		N/A	POA
052	783-07333		N/A	POA
053	783-07335		N/A	POA
