MTD008962

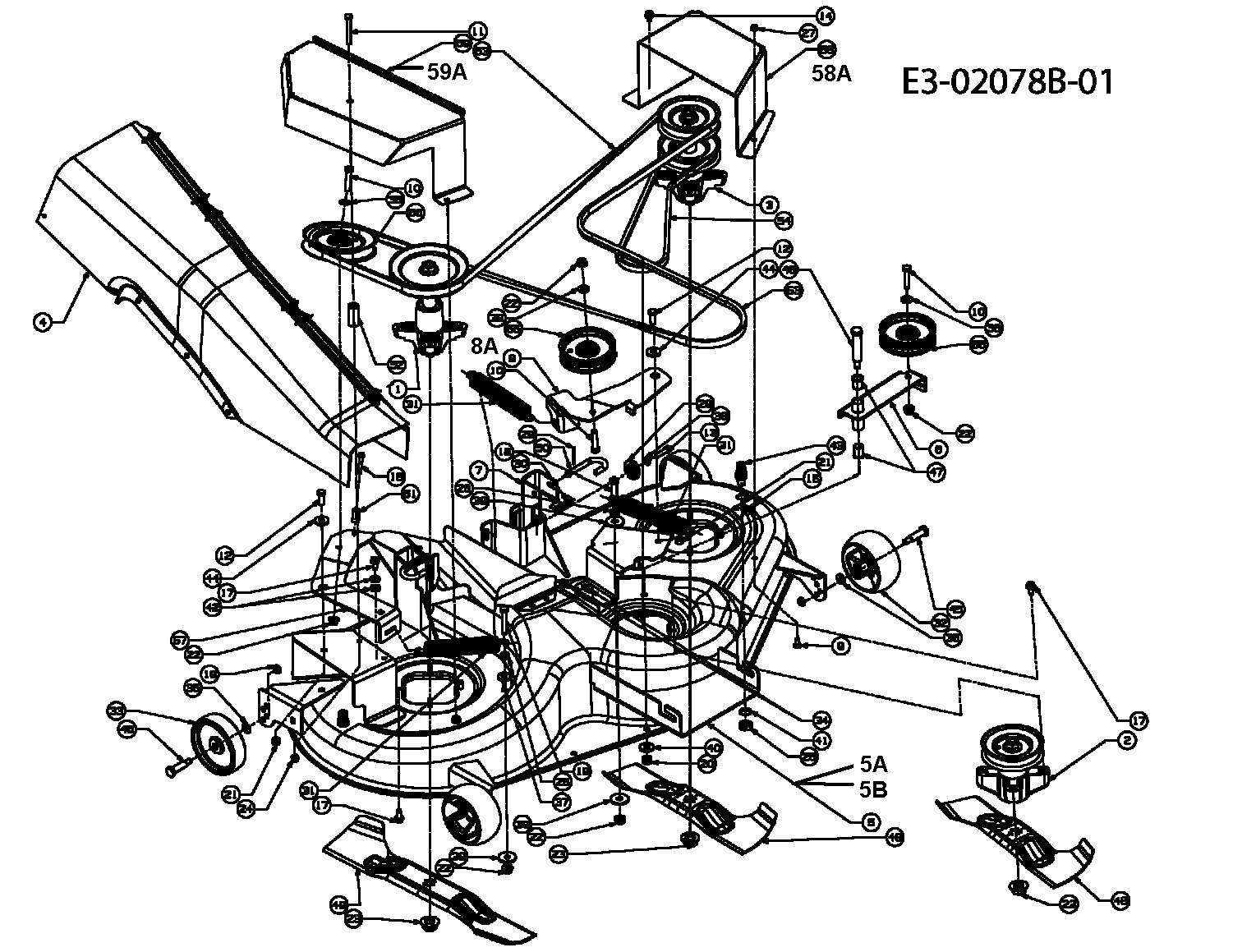

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	918-04160B	SPDL ASM:PUL:6.482 x .5625 DIA	£127.63	Add
002	918-04161B	SPINDLE ASSY	£103.25	Add
003	918-04162D	SPINDLE ASM	£125.87	Add
004	931-04099A	CHUT AMS:RR DIS:122 cm DECK 631-04099	£235.29	Add
005	683-04110CCY	DECK 122 CM YELLOW	£650.64	Add
006	683-04136A-S	BRKT ASM:IDLR:FLAT SM 122 CM	£40.89	Add
007	683-04142A	BRKT ASM:DECK:HNGR ADJ 122cm	£24.12	Add
008	683-04160A-S	122 cm / SCHWARZ LACKIERT 683-04160637	£50.72	Add
009	710-0134	BOLT	£3.03	Add
010	710-0347	HEX SCR	£3.72	Add
011	710-0378	HHCS:5/16-18:2.50:GR5:STD	£3.80	Add
012	710-0514	HEX BOLT	£3.81	Add
013	710-0528	SCREW (DNR)	£3.55	Add
014	710-0607	SELF TAP SCREW	£4.71	Add
015	710-0650	SCREW	£3.58	Add
016	710-0778	HEX WASHER HEAD SCREW	£3.20	Add
017	710-1260A	SCREW	£4.00	Add
018	710-3011	BOLT 3/8 X 2-1/4 TYPE 5	£5.52	Add
019	712-0181	HEX JAM L NUT	£3.69	Add
020	712-0290	NUT 7/16 CAD P/T LOCK TYPE 5	£2.78	Add
021	712-0375	NUT:HEXLK:3/8-16:GRA:CTRLK	£3.51	Add
022	712-04065	NUT	£4.02	Add
023	712-05134	BLADE NUT	£3.81	Add
024	712-0429	NUT HEX.INS L NUT	£4.92	Add
025	712-0641	NUT	£6.47	Add
026	712-3017	NUT:JAM:3/8-16:GR5	£2.97	Add
027	712-3027	LOCK NUT	£2.79	Add
028	714-0470	COTTER PIN	£5.07	Add
029	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
030	732-0306A	SPACER	£5.28	Add
031	732-04099	SPRING	£12.82	Add
032	734-04039	WHL:DECK:5.0 DIA BALL	£29.96	Add
033	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
034	735-0271A	UTV TAILGATE GROMMET	£9.24	Add
035	736-0105	BELL WASHER	£3.33	Add
036	736-0119	LOCK WASHER 5/16	£3.33	Add
037	736-0258	WASHER:FLAT:.385 X 1.0 X.135	£3.47	Add
038	736-0300	WASHER	£2.81	Add
039	736-0320	WASH:FLAT:.380 x.1.380 x.125	£4.70	Add
040	736-04097A	WASHER	£3.33	Add
041	736-0760	WASHER	£4.01	Add
042	736-3008	WASH:FL:.344 X.750 X.120	£3.49	Add
043	737-04003D	NOZ:DECK:WATER	£19.14	Add
044	738-0347	SPACER	£4.16	Add
045	738-0373	AXLE BOLT	£6.84	Add
046	738-04127	SCR:SHLDR:.65x2.64:7/16-14	£9.51	Add
047	741-0591	FLANGE BEARING	£3.44	Add
048	742-04082	BLADE L. H.	£38.23	Add
049	742-0670A	BLADE	£60.48	Add
050	747-04116A	ROD:HNDL:DECK REL .375 DIA 747-04116	£26.94	Add
051	750-04182	SPACER	£4.38	Add
052	750-04315	SPCR:.75 OD x.34 ID x 1.80 LG	£11.93	Add
053	754-04052	BELT	£119.12	Add
054	754-04053	BELT:V TYP:5L x 44 LG KEVL	£54.98	Add
055	756-04049A	IDLER	£47.10	Add
056	756-04050	IDLER PULLEY	£38.38	Add
057	783-004495C-S	BRKT:IDLR:122 CM 783-04495637	£33.67	Add
058	783-04511A-S	BRKT:CVR:DECK 122CM LH	£69.16	Add
059	783-04512A-G	COVER DECK 122 CM RIGHT	£72.00	Add
05A	683-04110CRG	DECK pan SS 122CM	£617.26	Add
05B	683-04110BYG	DECK 122CM	£450.86	Add
08A	683-04160650	122 cm / RED METALLIC LACKIERT	£49.01	Add
58A	783-04511ACY	BRKT:CVR:DECK 122CM LH	£69.63	Add
59A	783-04512ACY	BRKT:CVR:DECK 122CM RH	£72.00	Add
