MTD015052

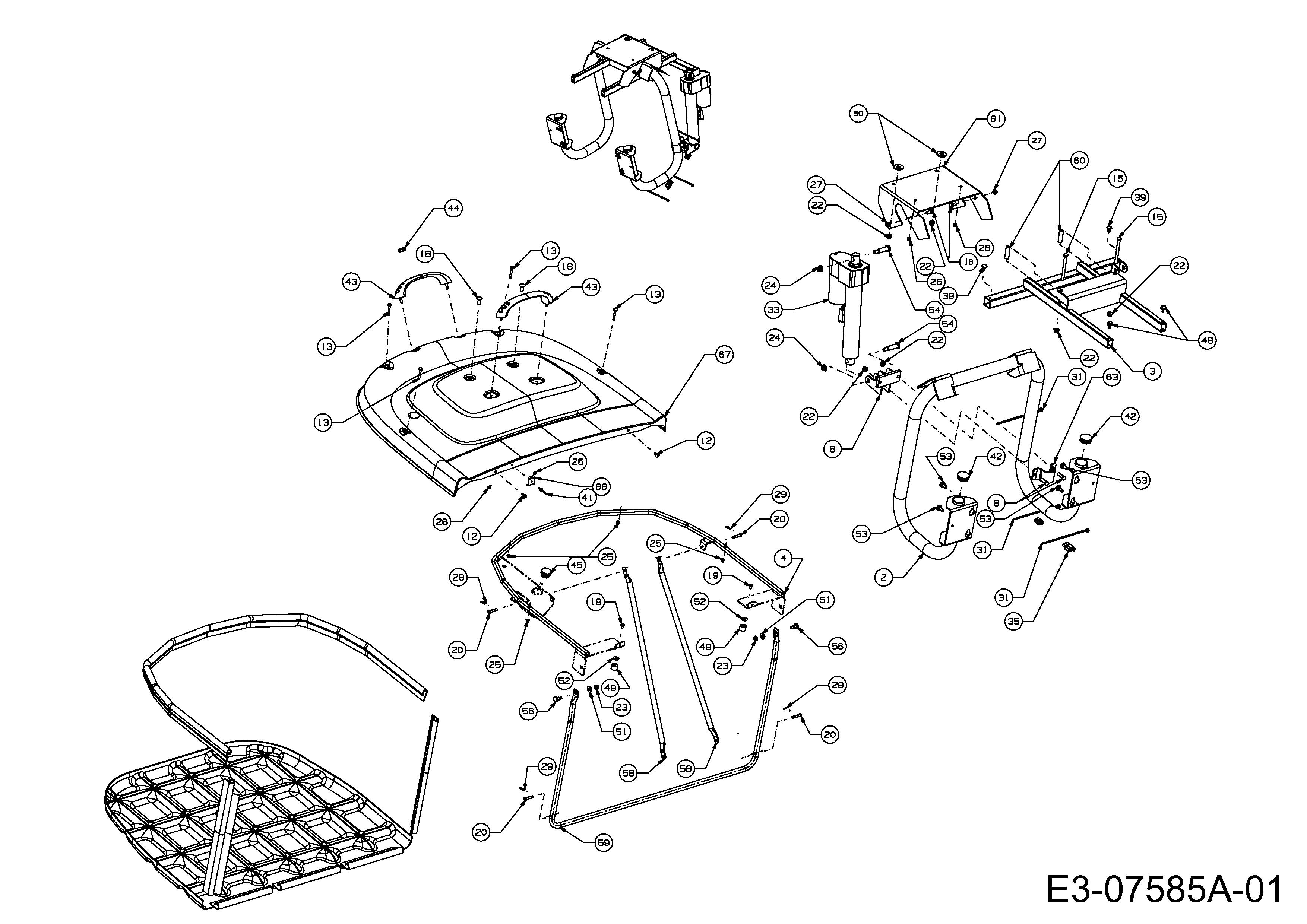

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	647-04277A		£34.25	Add
002	649-0132637	FRM ASM:PIVOT:300L BAG 649-0132	£234.05	Add
003	649-04031	TUBE ASM:PIVOT:ELEC BAG DUMP	N/A	POA
004	649-04090A		N/A	POA
005	664-04148A	GRSBG ASM:RR DIS:300 L 500	£149.90	Add
006	683-04179637	SUSPENSION BRACKET, BLACK	£71.92	Add
007	710-0134	BOLT	£3.03	Add
008	710-0376	SCREW HEX CAP 5/16	£9.02	Add
009	710-04043	SCREW	£10.58	Add
010	710-04049	SCREW	£4.84	Add
011	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
012	710-05070	SCR:TT:1/4-20:.5:PANTRXI:BLK	£4.18	Add
013	710-05448	BOLT:CRG:5mm x 40.0 LG	£3.39	Add
014	710-1017	TAP SCREW	£2.97	Add
015	710-1266	SCREW HHCS:5/16-18:3.5:GR5:STD	£4.70	Add
016	710-1376	CAP SCREW	£4.50	Add
017	710-1691	HEX. SCREW:M6X12 DIN 933 8.8	£4.11	Add
018	710-3105	BOLT:CRG:5/16-18:.875:GR1	£8.93	Add
019	710-3209	HHCS:M6-1.0:10MM:GR8.8:STD	£4.52	Add
020	711-04138	PIN	£4.11	Add
021	711-0701	CLEVIS PIN	£4.89	Add
022	712-04063	FLANGED NUT	£4.20	Add
023	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
024	712-04065	NUT	£4.02	Add
025	712-0642	NUT FLGLK M5 0.8	£2.68	Add
026	712-0691	HEX NUT M6 DIN 985	£2.66	Add
027	712-0692	HEX NUT	£3.10	Add
028	714-0145	R CLIP	£2.78	Add
029	714-04033	PIN:COT:INT .072 x.92 LG	£2.77	Add
031	725-0157	NO LONGER AVAILABLE	N/A	POA
032	725-04164	RLY:12V:20A/30A	£33.56	Add
033	725-04247	ACTR:ELEC:8" STROKE	£581.70	Add
034	725-04263	SW:500:ELEC BAG DUMP	£33.82	Add
035	725-04324	ADAPTER BAG DISCHARGE	£18.08	Add
036	725-04363	SWITCH	£18.57	Add
037	725-04655A	HARN:500:BAG ASSIST:FSBX	£93.86	Add
038	725-05260	HARN ASM:500:BAG PRESENT	£17.07	Add
039	726-3046	RATCHET	£3.11	Add
040	728-0123	POP RIVET 3/16 DIA x.450:STY1	£4.23	Add
041	728-04000	RIV:POP:.188 DIA x .300 L	£4.64	Add
042	731-04048	CAP:TUBE:SUPT 300L/250L BAG	£3.80	Add
043	731-04578	HANDLE	£9.37	Add
044	731-051181	EDGE GUARD 731-0511	£32.27	Add
045	731-05256	CAP:HARDTOP:CUB 500	£9.23	Add
046	731-08355	PLUG:CAP:DIA15-17:3.0-.05 THK	£2.70	Add
047	732-0264	EXTENSION SPRING	£10.47	Add
048	735-0271A	UTV TAILGATE GROMMET	£9.24	Add
049	735-04121	BMPR:	£22.65	Add
050	736-0322	FI-WASH	£8.68	Add
051	736-3000	WASH:FLAT:.250x.750x.119	£4.13	Add
052	736-3090	FL.WASHER:.260 X .720 X .060	£3.11	Add
053	738-0140	SHLD SCREW	£6.03	Add
054	738-0373	AXLE BOLT	£6.84	Add
055	738-04237A	SCR:SHLDR:T:#10-32:.500	£3.44	Add
056	738-0974	SCR:SHLDR:.375x.380:1/4-20	£9.24	Add
057	747-05419	ROD:SUPT:LH:BAG:250L/300L	£9.92	Add
058	749-04729	TUBE:SUPT:CROSS:GRSBG 250/300	N/A	POA
059	749-04730	TUBE:FRM:FRT:BAG 250L/300L	N/A	POA
060	750-0848	SPACER:.345 x.500 x 1.640 LG	£12.73	Add
061	783-04180637	BRKT:HOOK:BAG 300L 783-04180	£41.36	Add
062	783-04623A		N/A	POA
063	783-04664	BRKT:U	N/A	POA
064	783-06812	BRKT:SW:MNT	£10.13	Add
065	783-06813	BRKT:SW:STRIKER	£9.37	Add
066	783-06876	PLT:WEAR	£3.41	Add
067	783-06969		N/A	POA
068	783-07011		N/A	POA
069	783-07013A		N/A	POA
