MTD015057

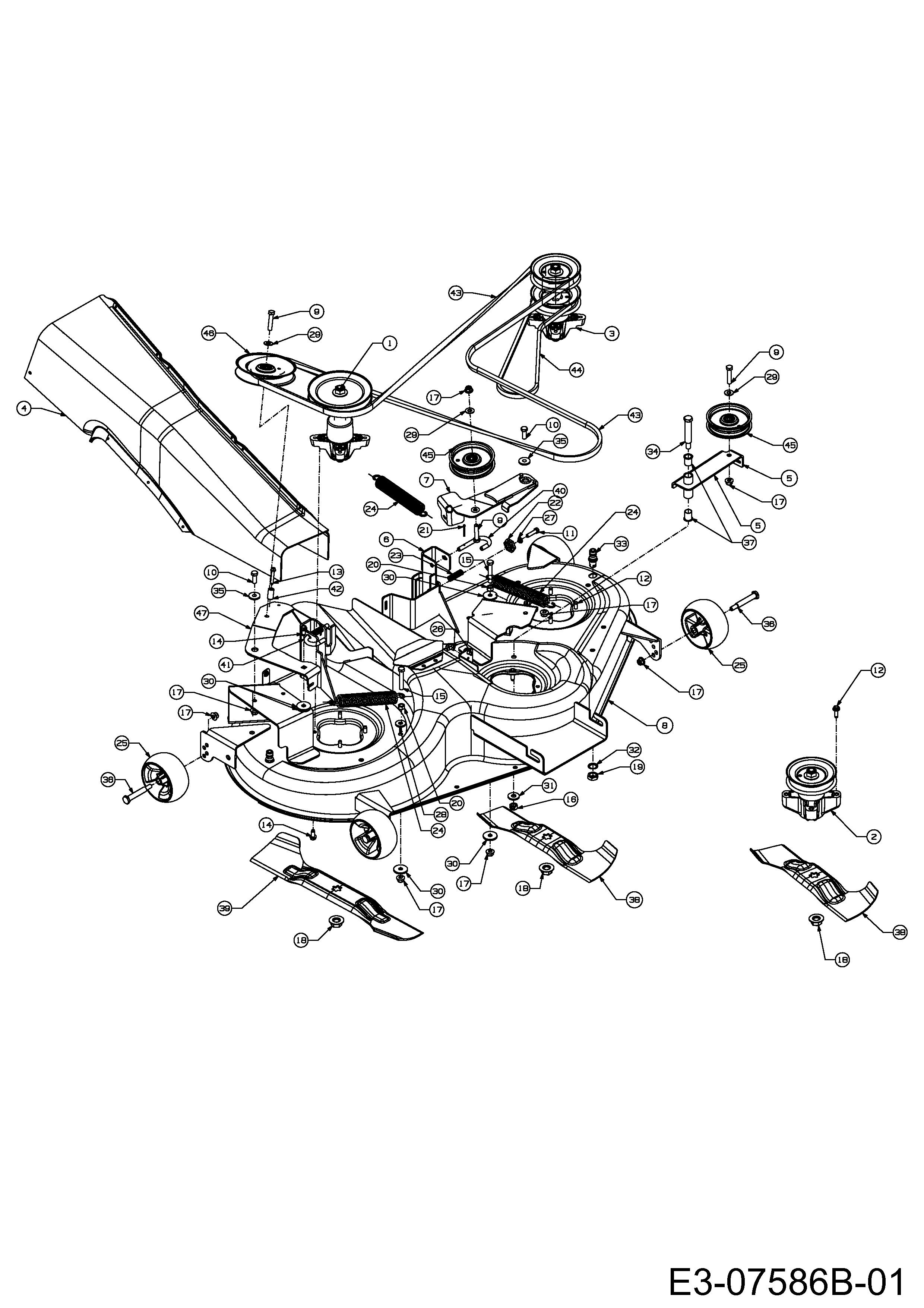

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD015057

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 618-04160B N/A POA
002 618-04161B N/A POA
003 618-04162D N/A POA
004 631-04099A CHUT ASM:RR DIS:122cm DECK N/A POA
005 683-04136A BRKT ASM:IDLR:FLAT SM 122 CM N/A POA
006 683-04142A BRKT ASM:DECK:HNGR ADJ 122cm £24.12 Add
007 683-04160A BRKT ASM:IDLR:FLAT 122cm N/A POA
008 683-04740 DECK ASM:122cm N/A POA
009 710-0347 HEX SCR £3.72 Add
010 710-0514 HEX BOLT £3.81 Add
011 710-0528 SCREW (DNR) £3.55 Add
012 710-0602 SCREW:TT:5/16-18:1.00:HXINDWSH £5.64 Add
013 710-0778 HEX WASHER HEAD SCREW £3.20 Add
014 710-1260A SCREW £4.00 Add
015 710-3011 BOLT 3/8 X 2-1/4 TYPE 5 £5.52 Add
016 712-0290 NUT 7/16 CAD P/T LOCK TYPE 5 £2.78 Add
017 712-04065 NUT £4.02 Add
018 712-05134 BLADE NUT £3.81 Add
019 712-0641 NUT £6.47 Add
020 712-3017 NUT:JAM:3/8-16:GR5 £2.97 Add
021 714-0115 COTTER PIN £3.42 Add
022 717-04074 GEAR DECK ADJUSTMENT £11.11 Add
023 732-0306A SPACER £5.28 Add
024 732-04099 SPRING £12.82 Add
025 734-04155 WHEEL:DECK:5.0 DIA BALL £16.47 Add
026 735-0271A UTV TAILGATE GROMMET £9.24 Add
027 736-0119 LOCK WASHER 5/16 £3.33 Add
028 736-0258 WASHER:FLAT:.385 X 1.0 X.135 £3.47 Add
029 736-0300 WASHER £2.81 Add
030 736-0320 WASH:FLAT:.380 x.1.380 x.125 £4.70 Add
031 736-04097A WASHER £3.33 Add
032 736-0760 WASHER £4.01 Add
033 737-04003D NOZ:DECK:WATER £19.14 Add
034 738-04127 SCR:SHLDR:.65x2.64:7/16-14 £9.51 Add
035 738-04137 SPCR:SHLDR:.6250 DIA X .190 £5.27 Add
036 738-3056 SHOULDER BOLT £12.94 Add
037 741-0591 FLANGE BEARING £3.44 Add
038 742-04082 BLADE L. H. £38.23 Add
039 742-0670A BLADE £60.48 Add
040 747-04116A ROD:HNDL:DECK REL .375 DIA 747-04116 £26.94 Add
041 747-1116 QUICK RELEASE PINS RH LONG £14.71 Add
042 750-04182 SPACER £4.38 Add
043 754-04052 BELT £119.12 Add
044 754-04053 BELT:V TYP:5L x 44 LG KEVL £54.98 Add
045 756-04049A IDLER £47.10 Add
046 756-04050 IDLER PULLEY £38.38 Add
047 783-04495C N/A POA
