MTD008964

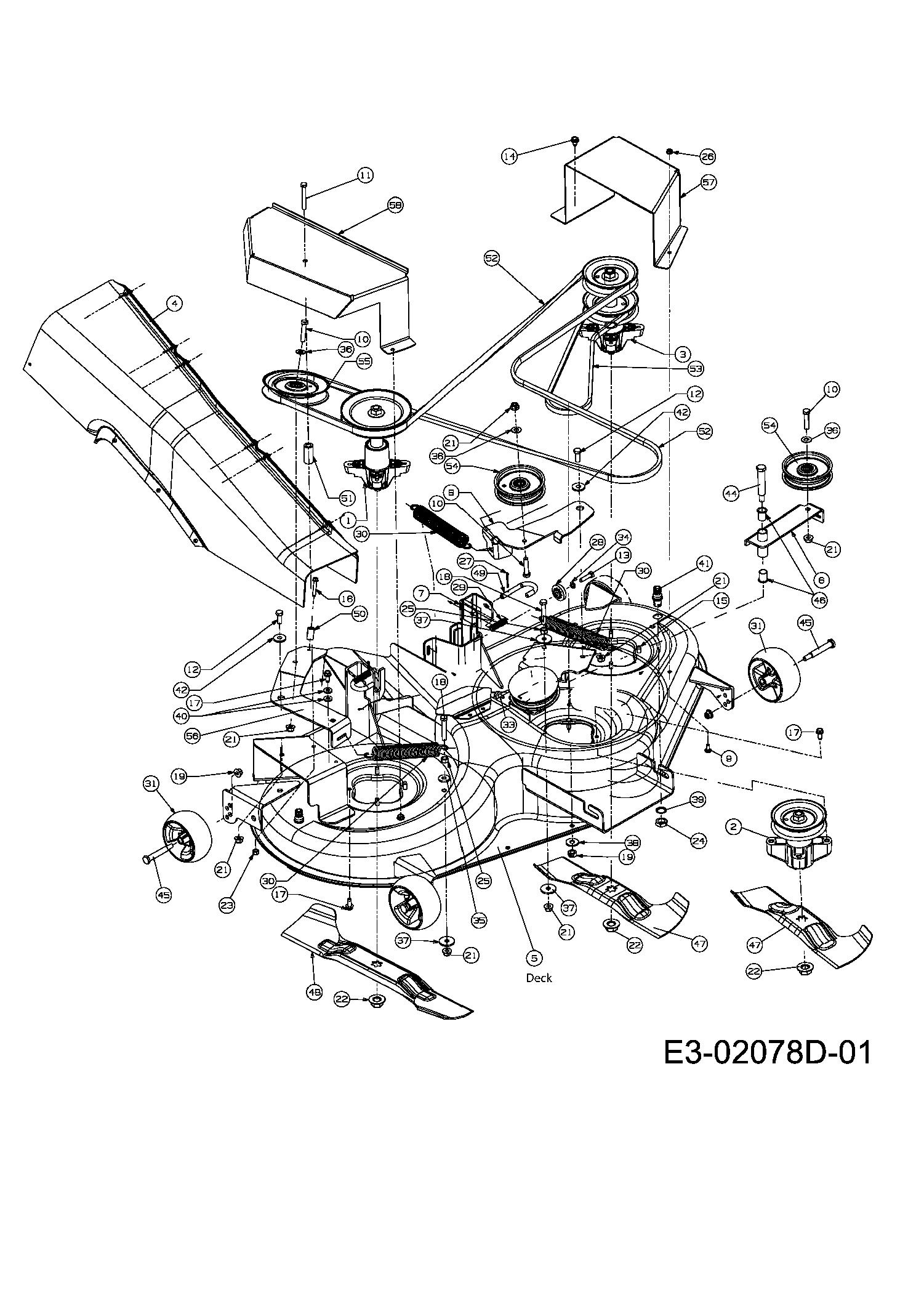

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	918-04160B	SPDL ASM:PUL:6.482 x .5625 DIA	£127.63	Add
002	918-04161B	SPINDLE ASSY	£103.25	Add
003	918-04162D	SPINDLE ASM	£125.87	Add
004	931-04099A	CHUT AMS:RR DIS:122 cm DECK 631-04099	£235.29	Add
005	683-04110C-S	DECK:ASM 122cm	£662.36	Add
006	683-04136A	BRKT ASM:IDLR:FLAT SM 122 CM	N/A	POA
007	683-04142A	BRKT ASM:DECK:HNGR ADJ 122cm	£24.12	Add
008	683-04160A	BRKT ASM:IDLR:FLAT 122cm	N/A	POA
009	710-0134	BOLT	£3.03	Add
010	710-0347	HEX SCR	£3.72	Add
011	710-0378	HHCS:5/16-18:2.50:GR5:STD	£3.80	Add
012	710-0514	HEX BOLT	£3.81	Add
013	710-0528	SCREW (DNR)	£3.55	Add
014	710-0607	SELF TAP SCREW	£4.71	Add
015	710-0650	SCREW	£3.58	Add
016	710-0778	HEX WASHER HEAD SCREW	£3.20	Add
017	710-1260A	SCREW	£4.00	Add
018	710-3011	BOLT 3/8 X 2-1/4 TYPE 5	£5.52	Add
019	712-0290	NUT 7/16 CAD P/T LOCK TYPE 5	£2.78	Add
021	712-04065	NUT	£4.02	Add
022	712-05134	BLADE NUT	£3.81	Add
023	712-0429	NUT HEX.INS L NUT	£4.92	Add
024	712-0641	NUT	£6.47	Add
025	712-3017	NUT:JAM:3/8-16:GR5	£2.97	Add
026	712-3027	LOCK NUT	£2.79	Add
027	714-0470	COTTER PIN	£5.07	Add
028	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
029	732-0306A	SPACER	£5.28	Add
030	732-04099	SPRING	£12.82	Add
031	734-04155	WHEEL:DECK:5.0 DIA BALL	£16.47	Add
033	735-0271A	UTV TAILGATE GROMMET	£9.24	Add
034	736-0119	LOCK WASHER 5/16	£3.33	Add
035	736-0258	WASHER:FLAT:.385 X 1.0 X.135	£3.47	Add
036	736-0300	WASHER	£2.81	Add
037	736-0320	WASH:FLAT:.380 x.1.380 x.125	£4.70	Add
038	736-04097A	WASHER	£3.33	Add
039	736-0760	WASHER	£4.01	Add
040	736-3008	WASH:FL:.344 X.750 X.120	£3.49	Add
041	737-04003D	NOZ:DECK:WATER	£19.14	Add
042	738-0347	SPACER	£4.16	Add
044	738-04127	SCR:SHLDR:.65x2.64:7/16-14	£9.51	Add
045	738-3056	SHOULDER BOLT	£12.94	Add
046	741-0591	FLANGE BEARING	£3.44	Add
047	742-04082	BLADE L. H.	£38.23	Add
048	742-0670A	BLADE	£60.48	Add
049	747-04116A	ROD:HNDL:DECK REL .375 DIA 747-04116	£26.94	Add
050	750-04182	SPACER	£4.38	Add
051	750-04315	SPCR:.75 OD x.34 ID x 1.80 LG	£11.93	Add
052	754-04052	BELT	£119.12	Add
053	754-04053	BELT:V TYP:5L x 44 LG KEVL	£54.98	Add
054	756-04049A	IDLER	£47.10	Add
055	756-04050	IDLER PULLEY	£38.38	Add
056	783-04495B	BRKT:IDLR V-PUL 122cm	N/A	POA
057	783-04511B	BRKT:CVR:DECK 122cm:LH	N/A	POA
058	783-04512A	BRKT:CVR:DECK 122 CM RH	N/A	POA
